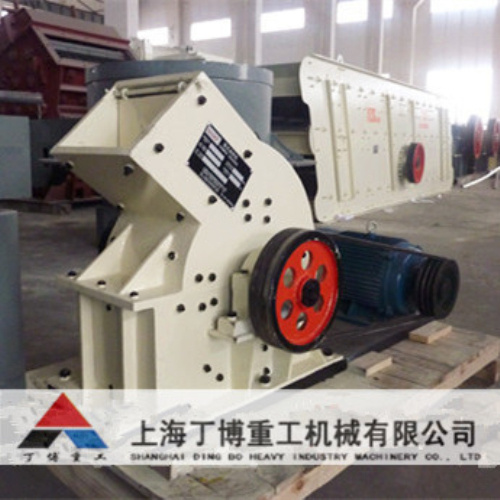

High Quality Hammer Crusher for Coal Mining
This machine is used to crush normal brittle rock such as limestone, sandstone, rock paste etc. The characters of this machine are that the material can be in big size and the crushing ratio is high. This machine can crush the large piece of rock that has been crushed for only one time and then the crushed rock can be sent to the mill for grinding. As the granularity becomes smaller, the capacity of this machine will increase.
Hammer crusher features&advantages:
1. High capacity and low power consumption;
2. Uniform particle size with high crushing and crushing ratio;
3. Simple structure; Easy operation
4. Low investment.
5. Perfect services.
Hammer crusher Working Principle
The rotor is driven by the motor to move, and the rotor drives the hammer board to rotate at a high speed,
thus the materials crushed in the crushing cavity by the rotating hammer board.
The end product comes out of the machine via the strips of screen.
The size of the granularity can be adjusted by changing the space among the screen strips.
| Model | Max. Feeding Size (mm) | Output Size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) |
| PC400×300 | 100 | <15 | 3-10 | 11 | 0.86 |
| PC600×400 | 120 | <15 | 8-15 | 22 | 1.55 |
| PC800×600 | 150 | <20 | 10-40 | 55 | 4.8 |
| PC1000×800 | 200 | <30 | 16-65 | 110 | 8.1 |
| PC1300×1200 | 280 | <40 | 50-200 | 240 | 14.8 |
| PC1600×1600 | 350 | <50 | 100-350 | 480 | 37.5 |
Please fill in your need products and your message and please do not forget mail and/or phone if you like to be contacted. We are the professional machine manufacturer in China with 30 years experience. Pls kindly check the following, in order to select a suitable machine, send you specific techinical data, quotation and the solution drawing for you.
1. the material ?
2. the capacity per hour ?
3. input size and output size ?mm
Ph:+86-15821950545
Shanghai Dingbo Heavy Industry Machinery Co., Ltd is an integrated enterprise specialized in the design, manufactures sales, installation and after sales of mining and construction machinery, is located in Pudong Airport Industrial District, Shanghai, China.
The Company has independent import-export authority with a professional team for international market to deal with import and export business. We have obtained ISO9001 and CE International Quality Management System Certification. Quality is our company's life. In order to make customers satisfied with every aspect, we have established a very strict and effective quality management system, adopting new technology and advanced equipment, ensuring all of our products reach top standards.
Our main products include:
1) Crushing Plant: Jaw crusher, hammer crusher, impact crusher, roller crusher, cone crusher, VSI crusher and so on.
2) Grinding Plant: Coarse grinding mill, high pressure mill, ball mill, cement mills, ceramic mills, Raymond mill, micro powder mills and so on.
3) Washing and Screening Plant: Sand washer, rotary dryer, vibrating screen, high frequency linear screen, vibrating feeder, belt conveyors and etc.
Nowadays, our products have well known and widely used in international market such as Russia, America, Australia, Mexico, Italy, Kazakhstan, Turkey, India, Indonesia, Vietnam, Iran, India, Chile, Venezuela, Egypt, Libya, Ethiopia, United Arab Emirates, and etc.
Market demand is the drive and basis of our endless innovation. Rich technical experience and the application of high technology make our products rank a leading place in the industry in technology content, performance, reliability and maintenance cost, etc. We expect your choice and prepare to provide you with heartfelt service at any time.
We can provide excellent quality, reasonable prices, and good services and after-sales services for you. We sincerely welcome you to visit our company.
