Product Specifications
| Prod Model: |
DD09 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Custom Size: |
Insert Part |
| Shaping Mode: |
Injection Mould |
| Process Combination Type: |
Compound Die |
| Application: |
Car |
| Installation: |
Mobile |
Product Description
Insert molding is one of many specialized plastic injection molding services that BHM offers.
For insert molded parts, BHM offers services from engineering, tooling to custom insert molding.
Insert molding means molding or forming plastic parts around other non-plastic parts or inserts, the inserted part is mostly metal project. Non-metal materials also can be used in insert molding.
Advantages of Plastic Insert Molding:
Lower costs--multiple tasks are being done at once, both labor and assembly time is saved;
Greater durability--the plastic resins mold to the insert more securely than other joining methods;
Lighter components— Plastic resin weighs less than metal connectors which would typically have joined the components
Insert molding serves industries such as:
Electronics, Medical, Military, Industrial, Automotive, Aerospace, Food processing, Commercial, Residential, Cosmetics and Consturction.

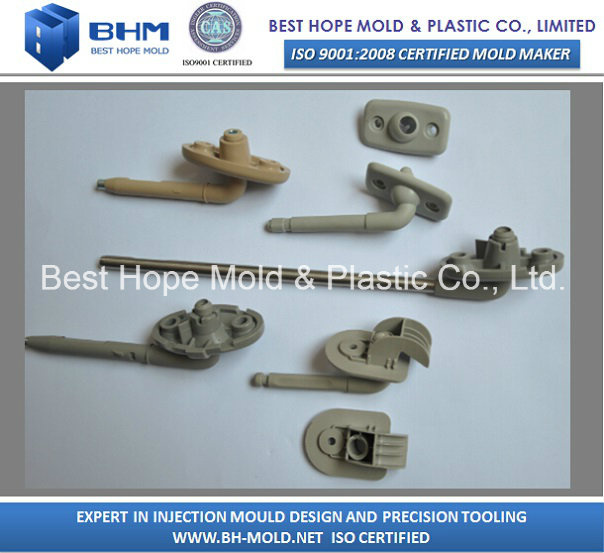

These parts are made of nylon and fiber glass material.
| Name | Insert Molding/Tooling |
| Plastic Material | HDPE, PP, PVC, POM, PC, ABS, POM, PMMA, TPU, TPR, K-resin, PPSU^ |
| Engineering Software | CAD, UG, ProE, CAD, Solidworks, Mastercam, Cimatron^ |
| Core/Cavity Steel | 1.2316, 1. 2738, 1.2344, , 718, SKD61, NAK80, P20 ^ |
| Mold Base | DME, HASCO, LKM ^ |
| Mold Spare Parts | DME, HASCO, MISUMI, LKM ^standard |
| Cavity No. | Single/multi customized |
| Runner | Hot, Hot to Cold, Cold |
| Hot Runner Brand | Husky, YUDO, Mold Masters, Synventive, Mastip^ |
| Demoulding | Motor, oil cylinder, stripping plate, slides, angel pin, ejector sleeves ^ |
| Mold Life | 500,000 – 5000,000 shots |
| Lead Time | 3-8 weeks according to complexity of mold |
| Packaging | Fumigation-free wooden box |
Best Hope Mold & Plastic (Shanghai) Co., Ltd (BHM) focus on high precision Plastic Injection Molds design and developing, as well as custom injection molding.
BHM' S Facilities:
BHM owns two facilities located in Shanghai and Suzhou, respectively focuses on high precision molds and large size molds.
Since established in 2005, BHM has been developing very fast, business expands rapidly due to quality products and serves, At present, BHM has covers an area of 10000m2 in total and owns 185 employees including 28 engineers, 110molds makers, 10 QC personnel and many injection operators.
BHM' S Capabilities:
BHM offer one-stop services from engineering design, tooling, to custom injection molding, as well as printing and assembly etc.
Design for manufacturability and efficient production is our primary objective. The mold drawings can be finished within 2-4 days then send to customer for checking before tooling. We are able to meet our customers' Shortened lead time. All the necessary technical drawings will be sent to customers for future mold maintenance references.
Our high speed milling machine, EDM, WEDM and CMM optimize our tooling process and improve accuracy and efficiency of our mold to ensure customers can get quality product.
Our expertise in tooling leads to better results in molding. We have 11 injection machines for mold trial, mold validation and custom production.
We have enough experience working with materials such as: LDPE, HDPE, PP, ABS, PC, PS, PVC, PA, PMMA, POM, TPU, TPR, TPE etc.
