I. Product Introduction
A smart three-phase active or reactive power meter is a smart meter with the functions of programmable measurement, display, alarm, digital communication and analog transmitting output and so on, and is widely used in substation automation, distribution automation, intelligent buildings, automatic production lines, test benches, etc. The true RMS measurement is of high accuracy and good stability. The current transformer ratio can be set on site with the meter keys, thus the use is easy and flexible.

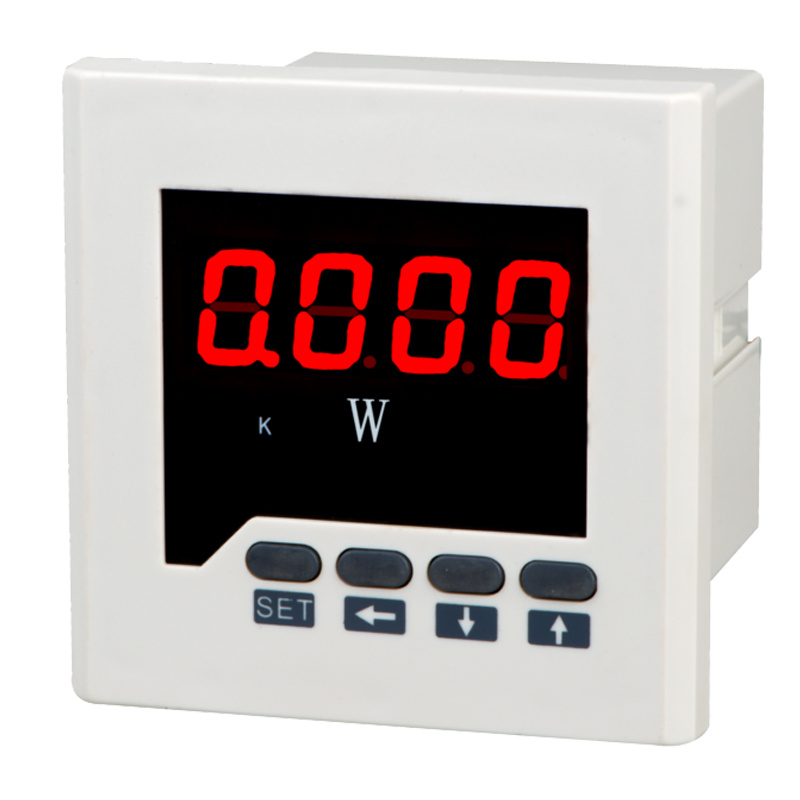

4-digit high red LED display; two-way relay alarm output allows upper or lower limit alarm; RS-485 digital communication interface adopting international standard MODBUS-RTU communication protocol allows networking with a variety of PLC, HMI and configuration software; analog (DC 4mA to 20mA) transmitting output optional.
II. Technical Parameters
Parameters | Performance |
| Signal Input | Voltage | Range | 57.7V, 100V, 220V, 450V, etc. |
| Overload | Continuous: 1.2 times; Instantaneous: 2 times/1S |
| Power Consumption | <1VA |
| Impedance | >380KΩ |
| Current | Range | AC 5A/1A |
| Overload | Continuous: 1.2 times; Instantaneous: 10 times/5S |
| Power Consumption | <1VA |
| Impedance | <20mΩ |
| Frequency | 45-65HZ |
| Auxiliary Power Supply | Linear Power Supply: AC220V±5%; Power Consumption<3VA
Switching Power Supply: AC/DC 85V to 265V or DC 10V to 36V; Power Consumption<3VA |
| Relay Output | Two-way Output, Contact Capacity: 1A/220VAC; 1A/24VDC |
| Analog Output | DC 4mA to 20mA |
| RS485 Communication | RS485 Communication Interface, Physical Layer Isolation, complying with the international standard MODBUS-RTU protocol.
Communication Baud Rate: 4800 and 9600, Data Format: N81 |
| Accuracy Grade | Grade 0.5 |
| Display Mode | Digital Display: 4-digit high red LED nixie tube |
| Environment | Operating temperature: -10-55ºC; Storage Temperature: -20-75ºC |
| Safety | Insulation: signal, power supply, output terminal resistance to cabinet>5MΩ
Withstand Voltage: signal input, power supply, output-output>AC2KV |
III. Meter's Outline Dimensions and Hole Size
3.1 Meter Outline Dimensions and Hole Size
Outline Code | Outline Dimensions (mm) | Hole Size (mm) | Depth (mm) |
| A | 72×72 | 67×67 | 85 |
| 3 | 80×80 | 76×76 | 85 |
| 9 | 96×96 | 91×91 | 85 |
| 2 | 120×120 | 111×111 | 85 |
