High Quality Linear Encoder Differential Transducer Sensors
Product Specifications
Product Description
Introduction

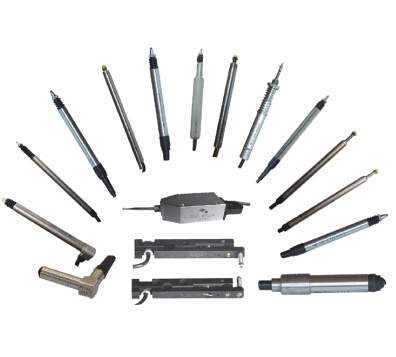

Our inductive transducers are with features of complete variety, wide measuring range and high precision, could be applied in products inspection in the workshop as well as in the metrology room. At present, Transducers made by Zhongyuan Measuring Instrument are widely applied in many industries in China and overseas, in precise measuring dimensions, shapes and position errors. Main parts of the inductive transducer include measuring bar, magnetic core, coil. Workpiece displacement causes the change of relative position of magnetic core and coil to change the inductance value of the coil, the changed signal is send to the electronic part to be amplified and rectified, then displayed in the form of analogue or digital signal.
Classifications
Classified by principle: Differential motion-type and differential transformer-type.
Classified by measuring bar motion: Spring type and pneumatic type.
Classified by structure: rolling guide type, slide guide type and lever type.
The structure of most of the transducers is rolling-guide and spring-return which is called basic-type.
Working principle of pneumatic propulsion type transducer: the measuring bar is pushed with filtered & voltage-stabilized 0.05~0.1MPa clean air, and the measure bar returns to original position when the air supply stops.
1. Differential Inductive Transducer
Model |
Measuring range (mm) |
Total travel A (mm) |
Front travel B (mm) |
Linear error |
Repeatability error (μm) |
Measuring force (N) |
Features |
JT-502A |
±0.2 |
0.55~0.7 |
0.25~0.35 |
±1% |
0.3 |
0.6~0.9 |
Level type |
compressed spring |
JT-503A |
±0.2 |
0.55~0.7 |
0.25~0.35 |
±1% |
0.3 |
0.6~0.9 |
tension spring |
DG11* |
±0.2 |
0.55~0.7 |
0.25~0.35 |
±1% |
0.3 |
0.6~0.9 |
Level type, thin |
DGC-6PG/A |
±0.3 |
1~1.5 |
0.35~0.55 |
±0.5% |
0.05 |
0.12~0.18 |
Level type |
DG01* |
±0.3 |
1.5 |
0.32~0.7 |
±0.6% |
0.2 |
0.45~0.7 |
Slide type |
Direct wire |
PDG01* |
±0.3 |
1.5 |
0.32~0.7 |
±0.6% |
0.2 |
0.45~0.7 |
Lateral wire |
DGC-8ZG/C |
±0.6 |
3 |
0.65~0.75 |
±0.5% |
0.03 |
0.45~0.65 |
Basic type |
DGC-8ZP/C |
±0.4 |
3 |
0.45~0.65 |
±0.5% |
0.2 |
0.45~0.65 |
Slide type |
DG-Z2 |
±0.5 |
1.3~1.5 |
0.55~0.65 |
±0.5% |
0.1 |
0.6~0.9 |
Lateral wire |
DG03* |
±1 |
3 |
1.1~1.3 |
±0.4% |
0.15 |
0.55~0.75 |
Basic type |
DGC-8ZG/D |
±1.1 |
3 |
1.2~1.3 |
±0.5% |
0.03 |
0.45~0.65 |
Basic type |
DG-Z9* |
±1.5 |
7 |
2.2~2.7 |
±1% |
0.2 |
0.4~0.9 |
Basic type |
DG07* |
±2.5 |
6 |
2.6~2.8 |
±0.6% |
0.2 |
0.4~0.7 |
Basic type |
DGQ07* |
±2.5 |
6 |
2.6~2.8 |
±0.6% |
0.3 |
------ |
Pneumatic propulsion |
DG09* |
5 |
11 |
5.1~5.3 |
±0.6% |
0.3 |
0.4~0.7 |
Basic type |
2. Differential Transformer Transducer
Model |
Measuring range(mm) |
Total travel A(mm) |
Front travel B(mm) |
Linear error |
Repeatability error(μm) |
Measuring force(N) |
Features |
DGC-9Z/B |
±0.1 |
2 |
0.3~0.6 |
±2.5% |
1 |
0.9~1.2 |
Slide type |
DC11* |
±0.3 |
0.65~0.8 |
0.35~0.45 |
±1% |
0.3 |
0.6~0.9 |
Level type |
E-DT-80SB |
±1.1 |
3 |
1.1~1.4 |
±0.4% |
0.1 |
0.5~0.9 |
Basic type |
DC07* |
±2.5 |
6 |
2.6~2.8 |
±0.6% |
0.2 |
0.45~0.65 |
Basic type |
DC-DZ4/A |
±3 |
7 |
3.2~3.7 |
±1% |
0.2 |
0.35~0.55 |
Basic type |
DC-DZ8 |
±3 |
10.5 |
3.2~3.7 |
±1% |
0.2 |
0.5~0.75 |
Basic type |
DCQ-DZ8* |
±3 |
10.5 |
3.2~3.7 |
±1% |
0.3 |
------ |
Pneumatic |
DC09* |
±5 |
11 |
5.1~5.3 |
±0.5% |
0.2 |
0.7~0.9 |
Basic type |
DCQ09* |
±5 |
11 |
5.1~5.3 |
±0.5% |
0.3 |
------ |
Pneumatic propulsion |
Notes: the models with mark * are not standard products with limited storage, time of delivery is discussed.
Zhongyuan Measuring Instrument Co., Ltd is the earliest founder of the precise measuring instrument industry in China!
In 1965, as the first precise measuring instruments manufacturing enterprise, Zhongyuan Measuring Instrument Co., Ltd. Started the new era of China precise measuring instruments manufacture, filled in the blanks of this area and grew up to a key national machine tool enterprise. Our company won the national certificates and awards as National Top Level Measuring Company, National Grade 2 Excellent Enterprise, Provincial Top Tech Innovation Enterprise, and the products with specialized brand won the honors as National Mechanism Congress Prize, Silver Medal for National Product, National Economic Commission Golden Dragon Prize, Mechanism & Electronics Industry Ministry High Quality Product.
Over the years, with the all-embracing principle and support of Zhongyuan Measuring Instrument research institute, Zheng Zhou Zhong Liang Measurement & Control Co., Ltd, Beijing San Lang Measurement & Control Co., Ltd, cooperation projects team in scientific research institutes and colleges, Zhong Yuan Measuring Instrument Company's technical R&D department guarantees the development of products and technical service support.
With the joint efforts of Zhong Yuan Measuring Instrument staff, our products are sold well in China and overseas, such as Japan, North Korea, India, Southeast Asia, Africa, Romania, Holland, America and Australia, etc. Our products are widely used in the area of mechanical engineering, light electronics, locomotive, machine tool, railway, axletree/bearing, textile industry, medical, refrigerator, automotive, motorcycle/autobicycle, watercraft, nuke/nuclear industry, aircraft, military industry, aerospace/aviation, and academic institution, etc.
We warmly welcome the customers from all over the world and we promise to offer you the top products and services.
Outstanding Advantages
-National Top Level Measurement Unit Certificate
-National Top Accuracy Constant Temperature and Humidity Metrology Room
-National Accreditation of Laboratories
-Solo owner of the through-the-process measuring and inspection capability
-Strictly implement the standard manufacture process in metrology industry
-With complete collection of testing and manufacturing equipment
-With highly professional staff
-Team with strong technology capabilities of research & development
Product Demonstration
Zhong Yuan Measuring Instrument Co., Ltd offers more than 300 products under 7 series:
-Automobile & Motorcycle Components Measuring Gauges
-Refrigerator & Air-conditioner Compressor Components Measuring Gauges
-Bearings Industry Measuring Gauges
-Pneumatic Air Gauges
-Electronic Measuring Gauges
-Magnetic Abrasive Electrochemical Machining Active Control Measuring Gauges
-Precision Measuring Gauges and Specialized Measuring Gauges
