Product Specifications
| Prod Model: |
SZLH320 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
2-5t/H |
| Main Power (Kw): |
37/45kw |
| Power Of Conditioner (Kw): |
22kw |
| ID Of Die: |
320mm |
| Pellet Size: |
2-18mm |
| Type: |
Pellet Mill |
| Processing Object: |
Beans |
| Processing Technics: |
Pelleting System |
Product Description

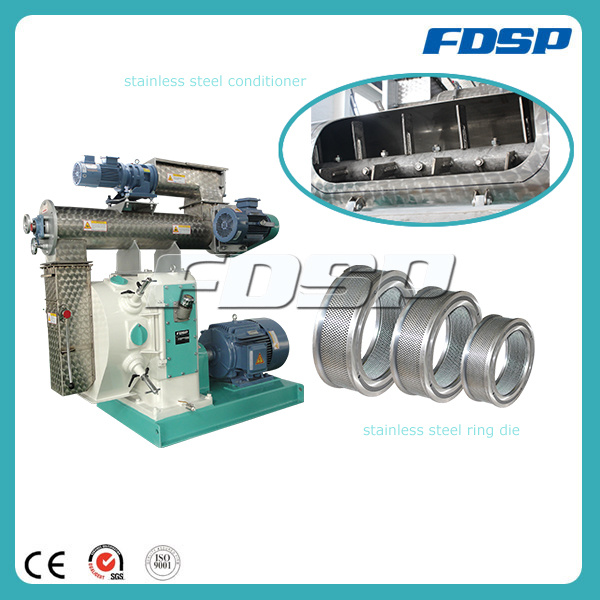

SZLH320 Livestock Feed Pellet Mill
Features
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; Variable pitch and anti bridging structure; Electromagnetic converter control;
3. Stainless steel conditioner; Axial steam spraying extends the conditioning time and cooking effect;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; Smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC.
| Model | Output (t/h) | Main Power (kw) | Power of Conditioner (kw) | Power of Feeder (kw) | ID of Die (mm) | Pellet Size (mm) |
| SZLH320 | 2-5 | 37/45 | 2.2 | 0.55 | 320 | 2-18 |
Working principle:
The main structure of this machine: it is mainly made up of feeder, conditioner, pelletizing, main transmission system and lubricating system etc.
the working process is as follows: the compound powder material with water content no greater than 13% enter into screw feeder through hopper, through adjusting the rotational speed of screw feeder axis to obtain the suitable flow of material, the security magnets remove the magnetic impurity mingling with supplies, then enter the conditioner, through the agitating of conditioner axle to mix with steam to do the conditioning, if needs to add molasses or oil, also to add it from conditioner barrel joining together with steam and conditioning together, (the adding amount of oil seldom exceeds 3%, otherwise difficult to take shape), after conditioning the compound powder material temperature could reach 75-90 ºC, humidity is up to 15%. Then through the chute, enter the pressing room to pelletize finally.
FAQ of us
1) The mixer is a single machine or a complete production line?
---It is a single machine, a part of the complete production line. You can choose it for your existing line or you can also let us design the feed plant for you..
2) What is the delivery time of the fish feed pellet machine?
----Usually the single machine can be sent within 45 days after getting the deposit If it is a large order or production line, the time maybe longer.
3) Are you a trading company or a manufacturer?
---- We are a manufacturer, which has almost 10 years of experience in feed machine industry.
