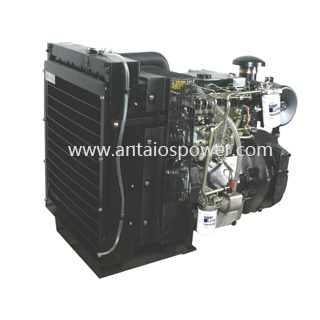

High Quality Lovol Diesel Engine (1003/4/6T/G)

Name: High Quality Lovol Diesel Engine (1003/4/6T/G)
Brand: china-manufacturer-directory.com
SKU: 668092382
Availability: InStock
Rating: 4.9 (143 reviews)

Price:	US $ 45-50/Box
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description
LOVOL engine derived from the Sino-UK joint venture Perkins China factory, based on original PERKINS technology. Currently, LOVOL engine includes B series, D series and LOVOL 1000 series, 1100 series and the platform of 3 cylinder, 4 cylinder and 6 cylinder, with power output ranging from 26kw to 202kw and speed from 1500rpm to 2600rpm. The engine can be widely applied to vehicle, construction euqipment, agricultural machinery, power generation, marine ect.

Technical data list

1000 serie diesel engine includes: 1003G 1003TG 1004G 1004TG 1006tTAG 1006TG1A 1006TG2A

Model		1003G	1003TG	1004G	1004TG	1006TG1A	1006TG2A	1006TAG
Cylinder num		3	3	4	4	6	6	6
Cylinder arrangement		In line	In line	In line	In line	In line	In line	In line
Induction system		Naturally aspirated	Turbocharged	Naturally aspirated	Turbocharged	Turbocharged	Turbocharged	Turbocharged and air intercooled
Bore x stroke(mm)		100 x 127	100 x 127	100 x 127	100 x 127	100 x 127	100 x 127	100 x 127
Displacement(L)		2.99	2.99	3.99	3.99	3.99	5.99	5.99
Luricating system capacity(L)		7.48-8.68	7.48-8.68	8.1	8.5	16.1	16.1	19
Diesel engine prime power/speed	kw/(1500r/min)	28	44	40	65.7	84.3	92.3	121
Diesel engine prime power/speed	kw/(1800r/min)	30	50	44	75.6	97.6	108.4	134
Diesel engine standby power/speed	kw/(1500r/min)	30.8	48	44	72.3	92.7	101.6	134
Diesel engine standby power/speed	kw/(1800r/min)	33	55	48	83.2	107.3	119.2	147
Genset power kw/(r/min)	Prime	22	35	35.5	59.1	75.8	83.1	109
Genset power kw/(r/min)	Standby	26	38	38.7	65	83.4	91.4	120
Genset power kw/(1800r/min)	Prime	27	43	39	68	87.8	95.7	120.5
Genset power kw/(1800r/min)	Standby	30	48	42.6	74.8	96.6	107.3	132.5
Governing	Mechancial governing	3-5%	3-5%	3-5%	3-5%	3-5%	3-5%	3-5%
Governing	Electronic governing	≤ 1%	≤ 1%	≤ 1%	≤ 1%	≤ 1%	≤ 1%	≤ 1%
Weight(kg)		410	415	540	550	710	710	730
Electrical system		Standard configuration 24V - 12V
Overall dimensions(mm)LxWxH		1186x688x940	1186x680x940	1253x706x946	1253x706x946	1484x740x1107	1484x740x1107	1600x800x1064

Our product list:

Technical Data List

Engine model	Cooling way	Bore/Stoke(mm)	Displacement(L)	Prime power(kW/rpm)	Standby(Kw/rpm)	Intake way	Dimensions(mm)	Weight(kg)	Lowest fuel consumption(g/kW.h)
BF8M1015CP-G5	water-cooled	132/145	15.874	500/1500	560/1500	Turbocharged inter-cooled	11519551174	1060	208
BF8M1015CP-G4	water-cooled	132/145	15.874	477/1500	530/1500	Turbocharged inter-cooled	11519551174	1060	208
BF8M1015CP-G3	water-cooled	132/145	15.874	458/1500	509/1500	Turbocharged inter-cooled	11519551174	1060	208
BF8M1015CP-G2	water-cooled	132/145	15.874	448/1500	490/1500	Turbocharged inter-cooled	11519551174	1060	208
BF8M1015CP-G1A	water-cooled	132/145	15.874	413/1500	459/1500	Turbocharged inter-cooled	11519551174	1060	208
BF8M1015C-G2	water-cooled	132/145	15.874	403/1500	440/1500	Turbocharged inter-cooled	11519551174	1060	205
BF8M1015C-G1A	water-cooled	132/145	15.874	388/1500	418/1500	Turbocharged inter-cooled	11519551174	1060	205
BF6M1015CP-G	water-cooled	132/145	11.906	328/1500	365/1500	Turbocharged inter-cooled	10439321174	850	208
BF6M1015C-G4	water-cooled	132/145	11.906	310/1500	345/1500	Turbocharged inter-cooled	10439321174	850	205
BF6M1015C-G3A	water-cooled	132/145	11.906	282/1500	314/1500	Turbocharged inter-cooled	10439321174	850	205
BF6M1015C-G2A	water-cooled	132/145	11.906	256/1500	285/1500	Turbocharged inter-cooled	10439321174	850	203
BF6M1015-G1A	water-cooled	132/145	11.906	228/1500	250/1500	Turbocharged inter-cooled	10439321174	850	203
BF6M1015-GA	water-cooled	132/145	11.906	208/1500	231/1500	Turbocharged inter-cooled	10439321174	850

Technical data list

Model	Cly.No	Bore/Stroke(mm)	Displacement(L)	Air-intake way	Power/Rev(kw/rpm)				Overall Dimensions(mm)	Weight
F2L912	2	100/120	1.88	Naturally intake	14/1500	17/1800	20/2300		678704872	245
F3L912	3	100/120	2.828	Naturally intake	24/1500	29/1800	36/2300	38/2500	730673815	275
F4L912	4	100/120	3.77	Naturally intake	32/1500	38/1800	46/2300	51/2500	860673815	300
F4L912T	4	100/120	3.77	Turbo charged	41/1500	48/1800	52/2000		860673815	315
F4L913	4	102/125	4.086	Naturally intake	34/1500	40/1800	50/2300	56/2500	860673820	310
BF4L913	4	102/125	4.086	Turbo charged	47/1500	55/1800	66/2300	78/2500	865692845	350
F6L912	6	100/120	5.655	Naturally intake	48/1500	60/1800	74/2300	78/2500	1120673815	410
F6L913	6	102/125	6.128	Naturally intake	51/1500	65/1800	79/2300	85/2500	1120673820	420
F6L912T	6	100/120	5.655	Turbo charged	61/1500	72/1800	81/2300	85/2500	1125673815	410
F6L913T	6	102/125	6.128	Turbo charged	61/1500	70/1800	91/2300	96/2500	1125673820	430
BF6L913	6	102/125	6.128	Turbo charged	74/1500	88/1800	112/2300	118/2500	1134711910	485
BF6L913C	6	102/125	6.128	Turbo charged after cooling	84/1500	105/1800	125/2300	141/2500	1134711990	510
ADG BF6L913	6	102/125	6.128	Turbo charged	88/1500	106/1800			1134711910	485
ADG BF6L913C	6	102/125	6.128	Turbo charged after cooling	114/1500	137/1800			1134711990	510
F3L912W	3	100/120	2.828	Naturally intake		29/2150	31/2300	33/2500	730673815	275
F4L912W	4	100/120	3.77	Naturally intake		39/2150	42/2300	44/2500	860673815	300
F6L912W	6	100/120	5.655	Naturally intake		60/2150	63/2300	66/2500

FAQ

1. HOW DO YOU SUPPLY AFTER SERVICE IF CUSTOMER IN FOREIGN COUNTRIES?

A:AT PRESENT, WE DON'T HAVE AFTER-SERVICE SITE IN FOREIGN COUNTRIES,IT HAS ALREADY TAKEN OUT 2% DESCOUNT FROM EXPORT PRICE FOR NO-AFTER-SERVICE.IF THERE IS QUALITY PROBLEM OF OUR PRODUCTS IN WARRANTY TIME,OUR SOLUTION IS:1.INTERNET REMOE TECHNICAL SERVICES 2.SUPPLY NEW SPARE PARTS TO USER FOR REPAIRING 3.CHANGE DAMAGED OR QUALITY PARTS FREE OF CHARGE.

2. HOW ABOUT TRANSPORT?

A:FOR CAERRN CARGO ,WE GENERALLY USE AIR COURIER DELIVERY TO THE CUSTOMER, FOR BULK GOODS, WE HAVE ADOPED SHIPPED BY SEA TO THE PORT OF DESTINATION SPECIFIED BY THE CUSTOMER,OR THE CUSTOMER DESIGNATED WAREHOUSE.We WORK WITH WORLD-RENOWNED SHIPPING,AIR TRANSPORT COMPANIES HAVE ESTABLISHED A GOOD COOPERATIVE RELATIONSHIP,WHICH ENSURES LOW SHIPPING COSTS AND OUR TRANSPORTATION SAFETY.

3.WE CAN FOLLOW OUR ENGINE PRODUCTION , IF ENGINE IS EQUIPEED WITH SPECIAL REQUIRENMENTS.

A:OUR ADVANTAGE IS THAT YOU CAN CUSTOMIZE ACCORDING TO CUSTOMER REQUIREMENTS AND CHANGE THE CONFIGURATION OF THE ENGINE, IF THE CUSTOMMER HAS SPECIAL REQUIREMENTS FOR THE ENGINE CONFIGURATION, WE WILL GO ACCORDING TO CUSTOMER REQUIREMENTS CUSTOMIZED PRODUCTION.

4.HOW ABOUT THE DELIVERY TIME?

A: THE PRODUCTION TIME OF COMPLETE DIESEL ENGINE IS ABOUT 15~20 DAYS.
ABOUT SPARE PARTS, THERE ARE ENOUGH RESERVE FOR PARTS, DELIVERY TIME IS 15~20 DAYS.

Prod Model:	1003/4/6T/G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Beijing, China
Brand Name:	Lovol
Model Number:	1003/4/6t/G
Engine Type:	Diesel
Cooling Method:	Water-Cooled
Fuel:	Diesel Engine

Beijing Antaios Technology Co., Limited is the absolute specialist of China in engines & parts & gensets field. So far away, we mainly supply engines and related parts and genset which were of Deutz licensed technology and then developed to Chinese own brand with more subsidiary series, smaller size, more environment friendly and better function. Including: 912/913/413/513 air-cooled series; 1015 series; Cummins China series. All products are passed ISO9001 quality system authentication,

We are familiar with different parts manufacturers and can well organized the parts supply and quality control, that's why we can satisfy our clients with reasonable price and good quality.

We are pleased to give full solution to your demand and aimed to be your most trustworthy partner in China.

Our Products List:

Deutz Chinese license diesel engine & deutz engine spare parts of water cooled 1015 series, air cooled 413/513 series and Deutz technology of China 912/913 Series.

Dongfeng-Cummins series water cooled diesel engine &spare parts.

DEUTZ, CUMMINS, LOVOL Series Diesel Generator Set

Concrete Pump which including engine and electromotor powered, S Pipe valve and gate valve, two Series and more than twenty models.
