Specification:
Rated Voltage
220V/110V
Frequency
50 Hz or 60Hz
Current
10A/20A
Operating Temperature Range
-10 ~ +55
Setting Direction
Clockwise
Operating Torque
< 0.5N. M
Insulation Resistance
> 100MΩ
Withstand Voltage
1500V ~ /min
Time Setting Range
180min± 15%.
Fully Pass Range
0 ~ 45Counter Clockwise
Longevity
Above 10000 times
Application: Mainly used for timing of Fanner, Heater (Fireplace), and other home appliances.
Contour diagram:
FEATURE:

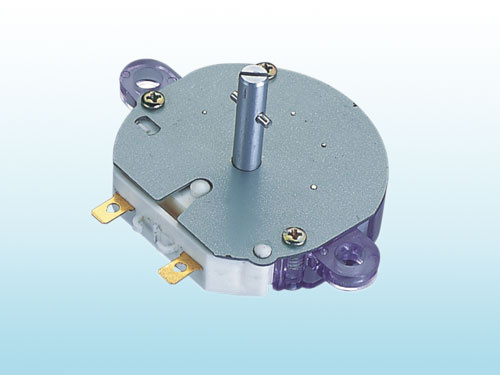

DFJ-B mechanical timer is designed as plastic and steel structure. It has the advantages of novel structure. It can limit the operating time of equipments within certain selection. When settled time is up. The power will be off automatically and operating stopped.
Remarks
1, Colour & length of conducting wire can be made according to the requirement of users2, The output shaft can be made according to the consumers need3, Working voltages and frequencies can be made as per users' requirements
