High Quality New Arrival Tyj860-III Vertical Ring Die Wood Pellet Making Machine /Wood Pelletizer Making Mill Machinery Factory

High Quality New Arrival Tyj860-III Vertical ring die wood pellet making machine /wood pelletizer making mill machinery factory
1.wood pellet making machine:
Biomass energy is a renewable clean new energy has enormous economic benefit.
Can make full use of it would produce the material energy, energy saving environmental protection at  same time also can bring a considerable economic income.

2.Basic features of thewood pellet making machine :

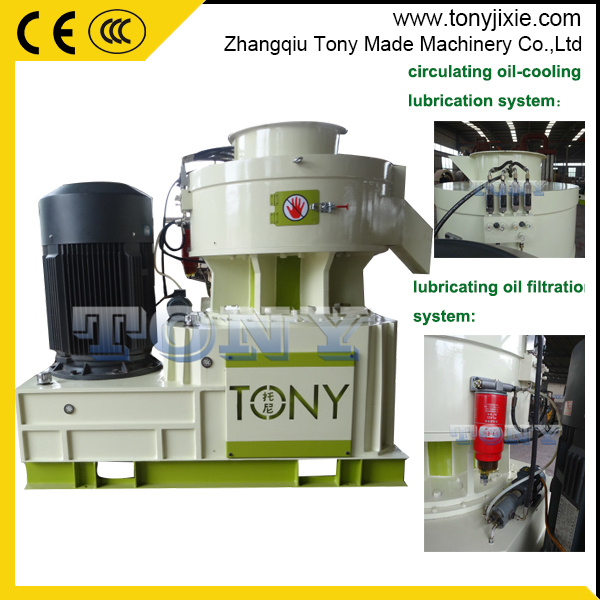

1.Firstly in the industry  invented rollers, spindle, transmission system circulating oil-cooling lubrication system.The lubricating oil in the gear box is circulated to lubricate roller bearings, spindle bearing and transmission gear, reduce the temperature of rollers and spindle.This will extend the working life of bearings by more than 5 times.
2.Firstly obsoleted the traditional cumbersome grease lubrication system, thus avoiding problems of the fixed-time oil supply and intermittent working, oil over-supplying and short working life of bearings caused by grease lubrication.This will save the grease cost by at least 3000 USD per year.
3.Firstly equipped the lubricating oil filtration system for the circulation lubrication system.This system adopts the imported car engine dedicated filters to filter out impurities in the oil.The delicate filtration prolongs the bearings' working life.
4.Firstly installed vertical motor and high precision triple geared drive transmission.Gears adopt the best anti-fatigue and wear-resistant materials for heavy machinery.With the continuous carburizing and quenching process from Leuze in Germany, gears are precisely processed in strict accordance with the heavy machinery gear machining method.
5.Bearings of transmission are high-precision SKF silent bearings made in Sweden, oil seals are heat and wear resistant fluorine rubber oil seals imported from Japan.High precision, long life and smoothly running guarantee the best performance of speed gear box once and for all.
6.Spindle is made of structural alloy steel from Germany.Trough precisely processes of water forging, rough turning, heat treatment and CNC machining center, the high concentricity and uniform hardness improve fatigue resistance of the spindle for better smooth and stability.
7.Die and rollers adopt the high grade nickel stainless steel material.With point-device compression ratio developed with years of experience, dies are precisely processed by Germany's four-axis deep hole gun drill and carburizing of Japan's continuous quenching furnace or American Ipsen vacuum quenching furnace.Inner holes have the features of high smoothness, small resistance, equal distribution and high accuracy.Four rollers as a group can increase the stressed area and reduce the pressure with die, thus prolong the working life of die and rollers and ensure the high yield and efficiency.
8.Unpowered kick-out device can cut and discharge the pellets without extra power, efficient and energy-saving.

3.Technical parameter of wood pellet making machine

Mode	Power(KW)	Capacity(T)	Weight(T)	Size(mm)
TYJ450-III	55	0.8-1.2	2.5	1650*850*1600
TYJ550-III	110	1.5-2.2	4.5	2000*1100*1800
TYJ680-III	160	2-3	7	2200*1250*2000
TYJ860-III	220	2.5-4	8.8	2450*1400*2100
TYJ980-III	315	3.5-6	15	2800*1600*2500

For more details, pls go to check our website:Www.Tonyjixie.Com
4.Applicable scope of raw materials:
Wood,straw,cotton stalk, rice husk, peanut shell, bamboo ,empty fruit branch,
Waster paper, and Palm fiber etc.

5.Requirements for raw materials
Size:1-2mm(All the raw materials must be crushed into sawdust before going to
Wood pellet machine.If not, you may need a wood chipper, wood crusher.)
Moisture:Generally, 10-15% is best for producing good quality wood pellet.
If too high, or too low, you need to dry or moisture them first.8.Successful experiences overseas:
Our products  have been exported to lots of Europe, South America, Southeast Asia countries, and set agents in Brasil ,Canada, Germany, America, South Africa, Australia, India,Vetnam, Malaysia and so on
Our  company
Our company   is a professional manufacturer and exporter engaged in the research,  production, sale and service of Biomass wood pellet line, wood pellet mill(flat die low temperature pellet mill, vertical ring die pellet mill,),feed pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.
We also pruduct

1.The SKJ Series flat die pellet mill with the volume 100kg to 4 ton per hour.
2.TheTY JSeries ring die pellet mill with the volume 800kg  to 5 ton per hour.
3.The SKJD Series Pellet Mill with Diesel Engine with volume 100kg to 400kg/h.
4.The SKJT Series Pellet Mill with Tractor Engine with volume 80kg to 400kg/h.
5.Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from the volume 0.5 ton to 20 We believe, TONY will be your most trusty and excellent partner in the future.
