Product Specifications
| Prod Model: |
XKP-400/450/560/610 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
as Require |
| Weight: |
20000kg |
| Power: |
90kw |
| Company: |
Factory |
| Service: |
Good Service |
Product Description

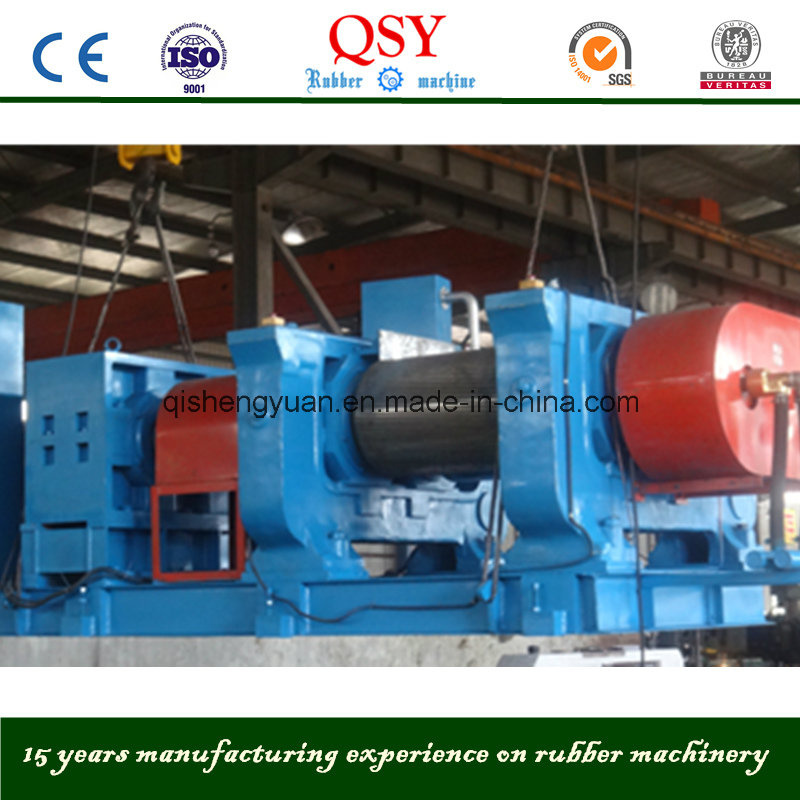

High quality Rubber cracker mill machine
1. Application
Rubber crusher is used for cracking crude rubber, waste tire rubber, tube and rubber materials.
Be used in waste rubber and waste tire recycling line.
2. Features
1. Rubber crusher has two rollers, one is grooved roller and the other is smooth surface roller.
2. The rolls are made of chilled alloy cast iron with wear-resistant and hard surface.
3. The rollers can be cooled homogeneously
4. The protective device is provided to protect the main parts from damage due to overload
5. The reverse current plugging system is provided above the rollers. In case of emergency, the safety rod is pulled down and the rollers will stopped immediately
6. Roll gap can be adjusted conveniently by turning the handwheel
7. The bedplate of the machine is integral or separated, so the installation is convenient
8. The transmission system adopts either hard tooth flank dual axis reducer or NGW hard tooth flank planet reducer, which has compact structure, lose noise an high efficiency
9. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil
Welcome to visit our factory and we can show you the machine in working condition.
If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
Parameters
Parameters/version | XKP-400 | XKP-450 | XKP-560 | XKP-610 |
| Front roll diameter(mm) | 400 | 450 | 560 | 610 |
| Back roll diameter (mm) | 400 | 450 | 510 | 610 |
| Roll length (mm) | 600 | 760 | 800 | 800 |
| Front roll surface speed (m/min) | 17.32 | 23.2 | 23.86 | 24.96 |
| Friction ration | 01:01.2 | 01:01.4 | 01:01.3 | 01:1.38/1.14 |
| Max, nip (min) | 8 | 8 | 15 | 20 |
| Feeding capacity per (kg) | 100-300 | 200-800 | 8000-1500 | 1500-2500 |
| Power(kw) | 45 | 55 | 90/110 | 132/160 |
| Size (length*width*height) (mm) | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 | 5580*2500*2320 |
