High Quality Pass Fluke Test Low Price FTP CAT6
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Box |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |

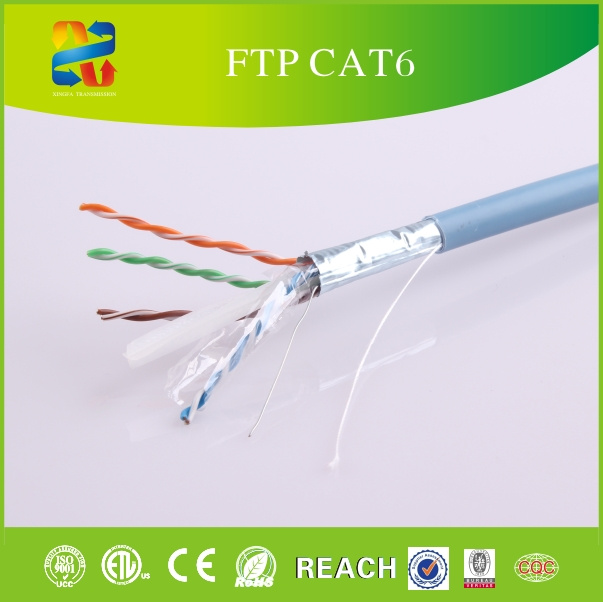

High Quality pass Fluke test Low Price FTP CAT6 1.Application:1. cat6 FTP Ethernet network cable Mainly used in the building correspondence synthesis wiring system the work area corespondence leading-out terminal and between the connection distribution frame wiring.
2.As well as the housing synthesis wirunf system's user correspondence leading-out terminal arrives at place of exile between coils' wiring.
2.Specification
| Mode | cat6 FTP Ethernet network cable |
| Conductor Size | 28AWG,26AWG,24AWG,23AWG,22AWG |
| Conductor Material | BC/CU/CCA/CCS |
| No.of Conductor | 4 Twisted Pairs( 8 cores ) |
| Insulation Material | PE , HDPE |
| Jacket | PVC, ROHS PVC, LSZH PVC |
| Shield Material | Shielded twisted pairs: AL/Mylar |
| Filler | PE cross |
| Indoor/Outdoor | Indoor Single Jacket, with cross filler |
| Insulation Thickness | 0.2mm |
| Unrip rope | Optional |
| Jacket Thickness | 0.92-0.95mm |
| Stretching Resistance | (max)400N |
| Impedance | 100±15%Ω at 1~100MHz |
| Transmission Velocity | 66% |
| Operating Temperature | -40 °C - +70 °C |
| Reference Standard | UL444,TIA/TIA-568B |
| PVC Jacket Color | Optional |
| Print Words On Cable | As Clients' Request |
3.Data Sheet:Frequency
(Mhz) | RL (dB) | ATT (dB/100) | NEXT (dB) | PS. NEXT(dB) | ACR (dB) | ELFEXT (dB) | PS. ELFEXT(dB) |
1 | 20 | 2 | 65.3 | 62.3 | 63.3 | 63.8 | 60.8 |
4 | 23 | 4.1 | 56.3 | 53.3 | 52.2 | 51.8 | 48.8 |
8 | 24.5 | 5.8 | 51.3 | 48.8 | 46.0 | 45.7 | 42.7 |
10 | 25 | 6.5 | 50.3 | 47.3 | 43.8 | 43.8 | 40.8 |
16 | 25 | 8.2 | 47.3 | 44.3 | 39.0 | 39.7 | 36.7 |
20 | 25 | 9.3 | 45.8 | 42.8 | 36.5 | 37.8 | 34.8 |
25 | 24.3 | 10.4 | 44.3 | 41.3 | 33.9 | 35.8 | 32.8 |
31.25 | 23.3 | 11.7 | 42.9 | 39.9 | 31.2 | 33.9 | 30.9 |
62.3 | 20.7 | 17 | 38.4 | 35.4 | 21.4 | 27.9 | 24.9 |
100 | 19 | 22 | 35.3 | 32.3 | 13.3 | 23.8 | 20.8 |

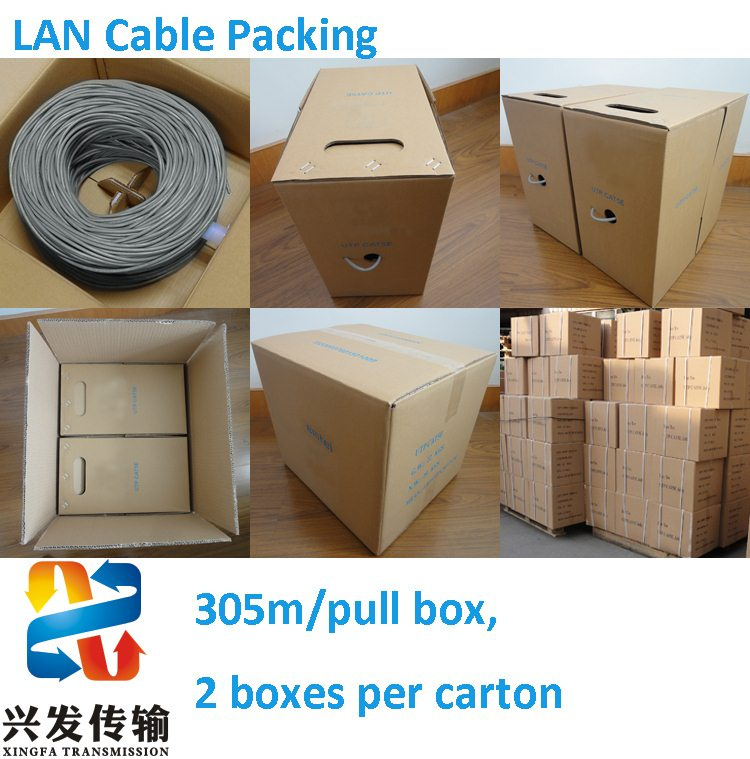

4.Packing1) Packing Lengths: 200m/roll, 305m/roll,1000m/drum,Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel available.
3) Outer packing: Cardboard box, pallet customers'request available.
4) Other packing available according to client's request

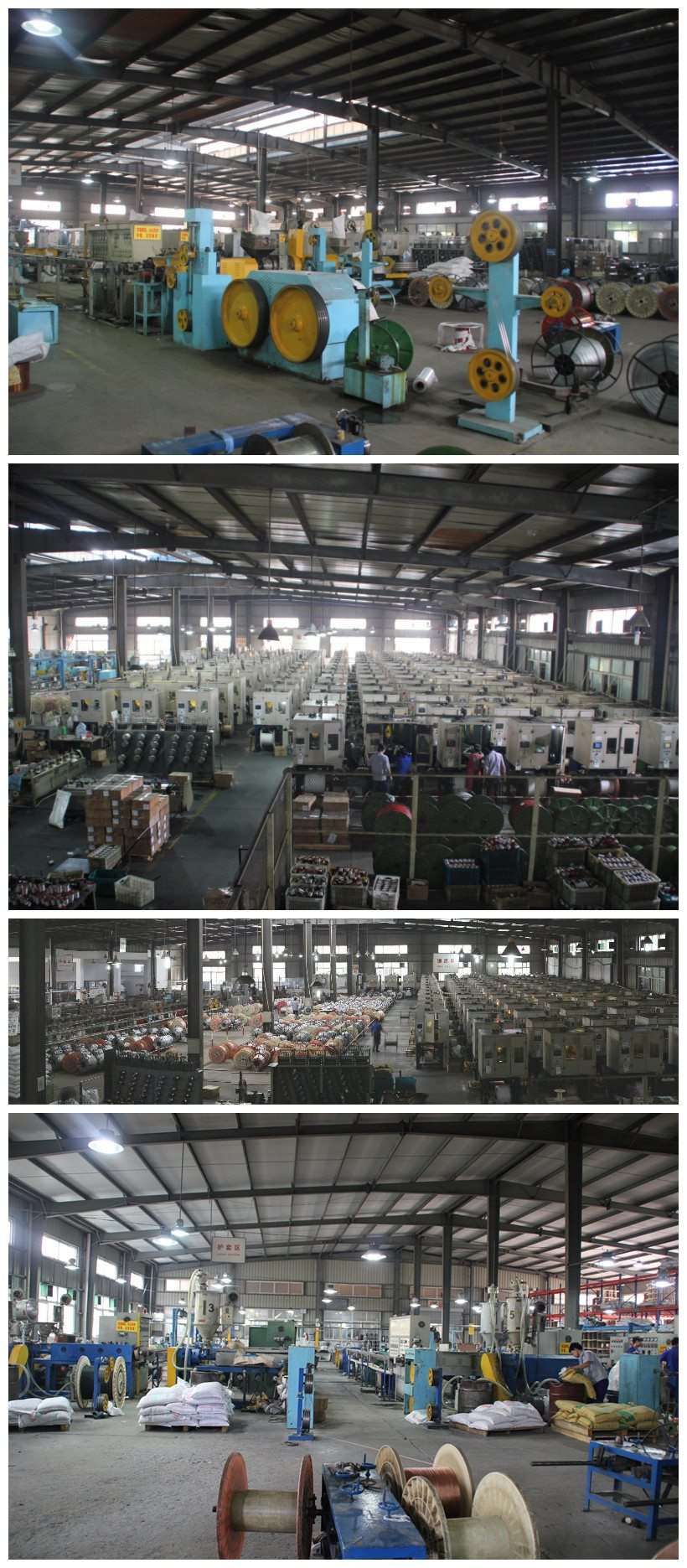

5.About US We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.This is our factory pictures below.
6.Exhibition Trade Show We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers.
| Prod Model: |
cat6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Center Conductor: |
0.574mm Bc/CCA |
| Dielectric: |
1.05mm PE |
| Jacket: |
7.30mm PVC |
| Nom: |
Thick 0.55mm |
| Colour: |
Per Customers' Special Requirement |
| Packing Lengths: |
305m/Roll |
| Outer Packing: |
Pull out Box |
| Number Of Pairs: |
4 Pairs |
| Rated Temperature: |
60,75,90 |
| Reference Standard: |
UL444,Tia/Tia-568b |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper Clad Steel |
| Insulation Material: |
PE |
| Certification: |
RoHS |
| Application: |
Network |
| Sheath Material: |
PE\PVC |
We Hangzhou Xingfa Transmission Equipment Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.
Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.
Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.
We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.
Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.
"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
