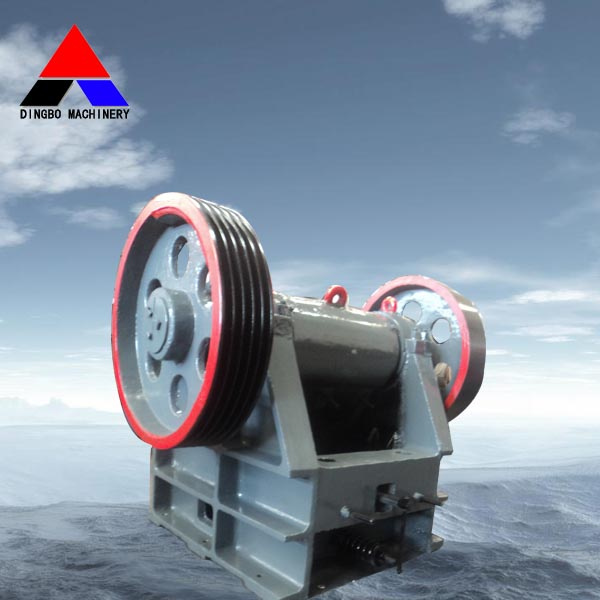

High Quality PE Series Jaw Crusher/Stone Crusher
Product Specifications
| Prod Model: |
PE SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Object: |
Wood |
| Tongs' Features: |
Adjustable Tongs |
| Cutter Material: |
Polycrystalline Diamond |
| Principle: |
Planar Motion Culling |
| Type: |
Jaw Crusher |
| Drive: |
Electric |
| Finished Surface: |
Gear Process |
| Compressive Strength (',For Crushing): |
>300MPA |
| Application: |
Stone Industry |
| Crushing Degree: |
Fine Grinding Machine |
| Crushing Style: |
Grinding and Impact |
Product Description
Shanghai Dingbo Heavy Industry Machinery Co., Ltd is a professional manufacturer of Stone Crusher in China. According to years research, we have developed the advanced Stone Crusher in the world. Especially the Jaw Crusher series, the Fine Jaw Crusher is a new model of Jaw Crushing Machine. After the Fine Jaw Crushing equipment crushing, the final goods can reach the very small size with the high capacity and low consumption.
PE Series primary jaw crushers with good quality features:
1. Optimized crushing cavity greatly improves feeding and crushing efficiency, saving energy by 15% -30%;
2. The larger heavy eccentric shaft, high manganese steel jaw plate and movable jaw assembly brings higher carrying capacity and
stability.
3. Adopt the world's advanced manufacturing technology, digital analysis of components operating and precise internal structural
greatly extend the lifespan of device.
4. The unique design of centralized lubrication system is more efficient for components lubrication but requires less maintenance.
5. Gasketed discharge adjustment of device permits larger adjustable range, which increases the flexibility of the device to meet the
demand of customer in processing.
6. The device is in line with the national environmental standards, low noise with dust removal equipment, which is in full compliance
with environmental requirements.
| Model | Feeding Opening Size (mm) | Max Feeding Size (mm) | AdjustmentRangeof Discharge Openin (mm) | Capacity
(t/h) | Electric Motor(kw) | Overall Dimension(mm) | Weight
(t) |
| PEX150*250 | 250*150 | 125 | 10-14 | 1-5 | 5.5 | 875*758*850 | 0.81 |
| PEX150*750 | 750*150 | 125 | 18-50 | 5-16 | 15 | 1200*1500*1200 | 3.8 |
| PEX250*750 | 750*250 | 210 | 25-60 | 15-30 | 22-30 | 1667*1545*1020 | 5 |
| PEX250*1000 | 1000*250 | 210 | 25-60 | 16-50 | 30-37 | 1530*1992*1380 | 7 |
| PEX250*1200 | 1200*250 | 210 | 25-60 | 20-60 | 37 | 1900*2192*1430 | 8 |
| PEX300*1300 | 1300*300 | 250 | 25-105 | 20-90 | 75 | 2720*1950*1600 | 11 |
Shanghai Dingbo Heavy Industry Machinery Co., Ltd is an integrated enterprise specialized in the design, manufactures sales, installation and after sales of mining and construction machinery, is located in Pudong Airport Industrial District, Shanghai, China.
The Company has independent import-export authority with a professional team for international market to deal with import and export business. We have obtained ISO9001 and CE International Quality Management System Certification. Quality is our company's life. In order to make customers satisfied with every aspect, we have established a very strict and effective quality management system, adopting new technology and advanced equipment, ensuring all of our products reach top standards.
Our main products include:
1) Crushing Plant: Jaw crusher, hammer crusher, impact crusher, roller crusher, cone crusher, VSI crusher and so on.
2) Grinding Plant: Coarse grinding mill, high pressure mill, ball mill, cement mills, ceramic mills, Raymond mill, micro powder mills and so on.
3) Washing and Screening Plant: Sand washer, rotary dryer, vibrating screen, high frequency linear screen, vibrating feeder, belt conveyors and etc.
Nowadays, our products have well known and widely used in international market such as Russia, America, Australia, Mexico, Italy, Kazakhstan, Turkey, India, Indonesia, Vietnam, Iran, India, Chile, Venezuela, Egypt, Libya, Ethiopia, United Arab Emirates, and etc.
Market demand is the drive and basis of our endless innovation. Rich technical experience and the application of high technology make our products rank a leading place in the industry in technology content, performance, reliability and maintenance cost, etc. We expect your choice and prepare to provide you with heartfelt service at any time.
We can provide excellent quality, reasonable prices, and good services and after-sales services for you. We sincerely welcome you to visit our company.
