Condition: New
Type: Horizontal
Brand Name: Sanzheng
Max. Swing Diameter: 630mm
Place of Origin: China (Mainland)

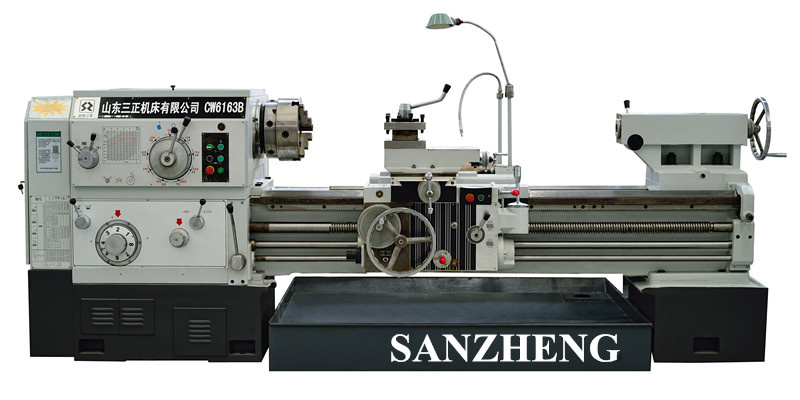

Model Number: CW6163B
Certification: CE & ISO
After-sales Service Provided: Engineers available to service machinery overseas
Guide way width: 550mm
Hole through spindle: 105mm
Taper of the tail stock: Mohs No.5
Bed quenching hardness: HRC52
Model and specifications
| CW6163B | CW6263B | CW6180B | CW6280B |
| Guideway width | 550mm |
| Max.swing over bed | 630mm | 630mm | 800mm | 800mm |
| Max.swing in gap |
| 800mm |
| 1000mm |
| Available length in gap |
| 300mm |
| 300mm |
| Max. workpiece length | 1500mm 3000mmm 4000mmm 5000mmm 6000mmm |
| Max.swing over carriage | 350mm | 350mm | 550mm | 550mm |
| Hole through spindle | 105mm |
| Taper of the tailstock | Mohs No.5 |
| Bed quenching hardness | HRC55 |
| Quick travel speed of saddle | 4000mm/min |
| Number of spindle speed changes | 18 steps |
| Range of spindle speed changes | 8~1000r/min |
| Screw pitch | 12mm |
| Range and number of metric thread | 1~240mm/50type |
| Range and number of whitworth thread | 14~1t.p.i(dens/h)/26 type |
| Module thread range and number | 0.5~120mm/53 type |
| Pitch thread range and number | 28~1t.p.i(dens/h)/24type |
| Power of main motor | 11KW |
| Processing workpiece accuracy | IT7 |
| Workpiece surface roughness | Ra1.6 |
Shandong Sanzheng Machine Tool Co., Ltd. is a large-scale professional manufacturer of lathe machine, with more than 20 years' produ...MoreShandong Sanzheng Machine Tool Co., Ltd. is a large-scale professional manufacturer of lathe machine, with more than 20 years' production experience in ordinary lathe, pipe thread lathe and CNC lathe. We are an integrating manufacturing enterprise of design, development, production, sales and after sales service.
The company has 210 sets of casting, forging, machining, assembly and heat treatment equipment, covers an area of more than 120, 000 square meters, with the total assets of 150, 000, 000 Yuan.
The main products of our company are as below:
(1) Horizontal ordinary lathe series: Processing diameter 600-1600mm, length 0.75-12 meters (C630 series, CW6163 series, CW61100 series)
(2) Pipe threading lathe series: Spindle bore diameter from 130mm to 500mm. The main type include (Q1313/Q1319/Q1322/Q1327/Q1332/Q1343/Q1350)
(3) Large bore diameter lathe series: Spindle bore diameter from 130mm to 500mm
(4) CNC lathe series, include: CK600/CK800/CK1000/CL6163G/CL6180G/CL61100/QK1313/QK1319/QK1322/QK1327/QK1343/QK1350 etc. )
We have passed ISO9001 cert., CE cert., and been named several times as "famous brand enterprises" and "compliment and trustworthy enterprise", "advanced enterprise of independent innovation". The machines are sold well in domestic market and are exported to German, the USA, Brazil, Australia, etc.
