Product Specifications
| Prod Model: |
SJSZ Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Thickness: |
8-20mm |
| Guarantee Time: |
12months |
| Board Width: |
915-1220mm |
| Service: |
as Your Requirement |
| Product Thickness: |
3-30mm |
| Total Power: |
285kw |
| Brand: |
Dejiayuan |
| Product Type: |
PVC Board |
| Board Layers: |
Single Plate |
| Automation: |
Non-Automatic |
| Computerized: |
Non-Computerized |
| Certification: |
ISO9001:2008 |
Product Description

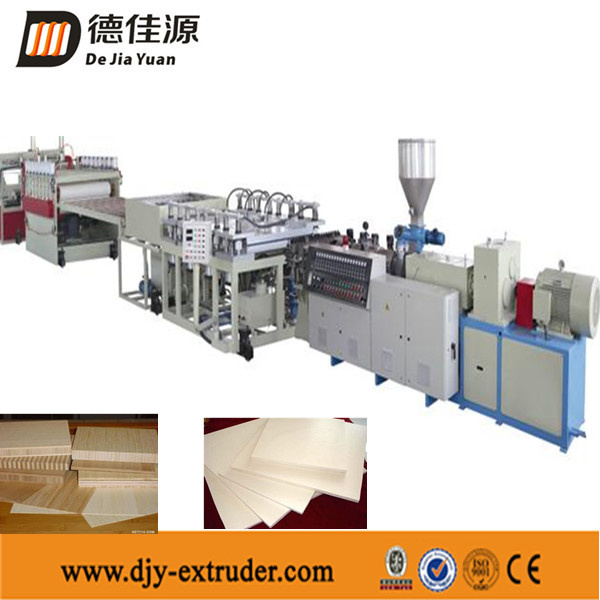

PVC Crust Foam Board Production Line / semi-crust plastic foam board production line is developed on the basis of our company combination of advanced foreign technologies. The plastic foam device consists of conical twin screw extruder, plate molds, vacuum forming and eight sets of rollers traction auxiliary components.
PVC Crust foam board production line can produce the crust foam board which width is 400-1220mm, and the thickness is 3-30mm. Crust foam board using Celuka (Celuka structural-foam process) technology foam, surface layer not only flat and smooth compared with the free foaming, with great crust hardness and stiffness, mechanical properties significantly larger than the free foam , very broad application prospects.
PVC Crust Foamed Plate Production Line components:
Extruder system: The production line using KDPS-80 extruder, the design of the screw meet the technological characteristics, large amount of extrusion, material cut uniform, high efficiency extrusion.
Mould system: Adopts crust foam board dedicated flow channel structure, so that the material extruded foam evenly.
Cooling and shaping system: The pressure plate structure, hydraulic system control, easy to control the dimensional accuracy of the sheet material. The design of cooling pipe system make the plate cooling more evenly and finalize the design quickly.
Traction cutting system: adopting the roller combination tractors, make traction measuring adjustment is simple, the roller tractor and cutting machine electric implements the synchronization control, flat plate incision.
The whole production line has the advantages of beautiful appearance, convenient to operation. Plate production of high foaming ratio, high surface hardness, smooth surface wear characteristics. The company provides the formulation and process of technology.
The production process of PVC crust foamed board production line:
Batching - High cold mix - Extrusion - Foam - Cooling stereotypes - Spray - Trail---Cutting - stacking - test - finished product storage
The product application:
Environmental, chemical, anti-corrosion, insulation and other fields, high-grade cabinets, furniture, advertising lettering, decorative building materials, cars, trains, ships within decorative materials.
Main technique parameter
Model |
ZSJPF-1220 |
Applicable materials |
PVC\wood powder |
Product Width |
1220mm |
Product Thickness |
3-30mm |
Output |
200~500kg/h |
Extruder Specification |
ZSPS-90 |
Mould Specification |
1250 |
Total Power |
285kw |
Qingdao DeJiaYuan Plastic Machinery Co, . Ltd. Is a high-tech company who can engage in produce many kinds of plastic machinery, the search and development of plastic machinery, the produce and sell, the techniacal service of plastic machinery. The company own high technical design and develop talented person, the install and trial run staff, and have a close cooperation relationship with many university and academies, can gathering the latest scientific research achievements, provide the user the competitive equipment and techinc.
Wood plastic meaning using processing foliage fiber or powder (like wood powder straw stalk, flax, peanut shell, coconut shell and so on)as the component together with the resin (for example polyethylene, polypropylene, polyvinylchloride and so on)complex to a kind of new material. This meterial can have the merit with plastic and fiber, can widely used in construction, the room's inside decorate, the car's decorates, transports salver, furniture, stockade, the arm rest, the plank and so on; Indoor decoration strip, dalle, stave sheet, ceiling and so on; In car's dalle, seat foundation, display board and so on.
Generally speaking, this new kind wooden plastic compound, material have good mechanical properly. Can be sawed, be planed, be nailed. The production don't fear to be destroyed by insectes, don't have funus, anti-strongalkali, waterproof, hard to be distorted, and canbe 100% recycling reused.
Based on this machinery the company invests the large money for resaerching wooned plastic machine, now we have makes breakthrough progress. Successful develops wooden plastic door, the wood plastic fillor, the wood plastic decoration strip, the wood plastic profile produce line. When pushing to the market, has obtained the customer consistent high praise.
