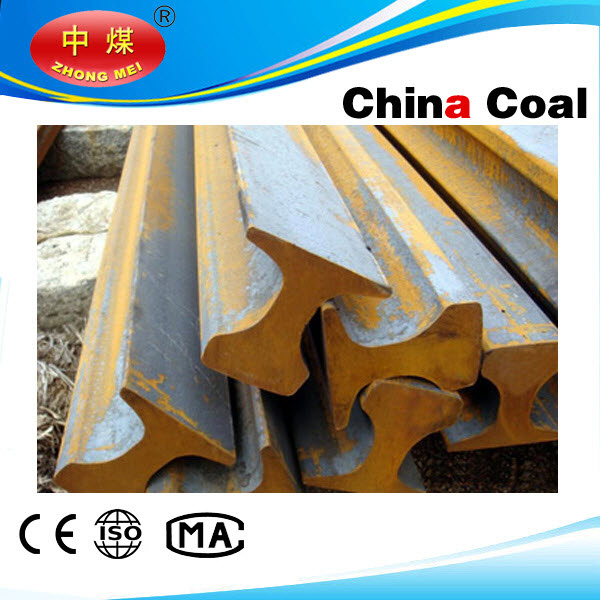

High Quality Q235/55q Railway Steel Rail

Name: High Quality Q235/55q Railway Steel Rail
Brand: china-manufacturer-directory.com
SKU: 691883642
Availability: InStock
Rating: 4.7 (65 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Ton
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	6kg, 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	6m, 9m, 12m
Material:	Q235B
Weight (Kg/M):	5.98
Base C(mm):	50.8
Certification:	TB
Part:	Railway Rail
Bolt Grade:	4.8

Product Description

Steel rail
1. Light rail: Size: 6kg, 9kg, 12kg, 15kg, 22kg, 30kg, 8kg, 18kg, 24kg material: 55q/Q235B standard: GB11264-89 standard, yb222-63 standardlength: 6-12m
2. Heavy rail: Size: 38kg, 43kg, 50kgmaterial: 50mn/u71mn standard: GB2585-2007length: 12.5-25m
3. Crane rail: Size: Qu70, qu80, qu100, qu120 material: U71mn standard: Yb/t5055-93 standardlength: 12m

GB11264-89 STANDARD LIGHT RAIL
SIZE	DIMENSION (MM)					WEIGHT (KG/M)		MATERIAL		LENGTH (M)
	HEAD A(MM)	HEIGHT B(MM)	BASE C(MM)	WEB D(MM)

GB 6KG	25.4	50.8	50.8	4.76	5.98		Q235B		6-12
GB 9KG	32.1	63.5	63.5	5.9	8.94		Q235B		6-12
GB 12KG	38.1	69.85	69.85	7.54	12.2		Q235B/55Q		6-12
GB 15KG	42.86	79.37	79.37	8.33	15.2		Q235B/55Q		6-12
GB 22KG	50.3	93.66	93.66	10.72	22.3		Q235B/55Q		6-12
GB 30KG	60.33	107.95	107.95	12.3	30.1		Q235B/55Q		6-12

GB2585-2007 STANDARD HEAVY RAIL
SIZE	DIMENSION (MM)					WEIGHT (KG/M)		MATERIAL		LENGTH (M)
	HEAD A (MM)	HEIGHT B (MM)	BASE C (MM)	WEB D (MM)
GB 38KG	68	134	114	13	38.733		50Mn/ U71Mn		12.5-25
GB 43KG	70	140	114	14.5	44.653		50Mn/ U71Mn		12.5-25
GB 50KG	70	152	132	15.5	51.514		50Mn/ U71Mn		12.5-25

YB/T5055-93 STANDARD CRANE RAIL
SIZE	DIMENSION (MM)					WEIGHT (KG/M)		MATERIAL		LENGTH (M)
	HEAD A(MM)	HEIGHT B(MM)	BASE C(MM)	WEB D(MM)

QU 70	70	120	120	28	52.8		U71Mn		12
QU 80	80	130	130	32	63.69		U71Mn		12
QU 100	100	150	150	38	88.96		U71Mn		12
QU 120	120	170	170	44	118.1		U71Mn		12

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd. is Situated Near The Beautiful Lake Named Weishan in The Centre of Jining City, Which Is The Hometown of Confucius and Mencius. The Reserved Coal Resource Is More Than 20 Billion Tons and Is One of The Top Eight Coal Production Bases in China.

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd. is a Big Joint-Stock Enterprise and Was Founded at The Beginning of 1980s, Which Is an Comprehensive Company Specially Doing The Business of The Mine Construction Materials, Mechanical and Electrical Equipments, Pneumatic Machineries and Accessories. We Have Six Economy and Trading Branches and One Machinery Manufacturing Branch.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the high quality at the reasonable price.
