Product Specifications
| Prod Model: |
YT, YTB Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Unwind Type: |
Friction or Magnetic Powder Tension Control |
| Unwind: |
Edge Correction System |
| Printing Unit: |
Metal or Ceramic Anilox Roller |
| Printing: |
Doctor Blade |
| Dryer: |
Electrical Dryer or UV |
| Color & Page: |
Double Faced Multi Colors |
| Plate: |
Relief Printing |
| Embossing Structure: |
Rotary Letterpress |
| Type: |
Printing Press |
| System Supported: |
PLC Control |
| Printing Interface: |
Flexo Printing Machine |
| Printing Speed: |
Max.Speed 150m/Min |
Product Description
Suitable Flexible Packaging Materials:
Paper:Kraft paper:40 ~ 350g/m2, single-sided coated paper:30 ~ 350g/m2, copy paper:15 ~ 350g/m2, firecrackers and paper:40 ~ 350g/m2,silicone paper :50 ~ 350g/m2, coated paper:30 ~ 350g/m2, dust-free paper:25 ~ 350g/m2,release paper:40 ~ 350g/m2composite paper, 30 ~ 350g/ m2
Woven:Woven :15-120 grams,non woven :15-500 grams
Film:PVC:10 ~ 120μm, OPP:10 ~ 100μm, BOPP:10 ~ 100μm, PE:15 ~ 150μm, NY:10 ~ 120μm, PET:10 ~ 100μm, CPP:10 ~ 100μm

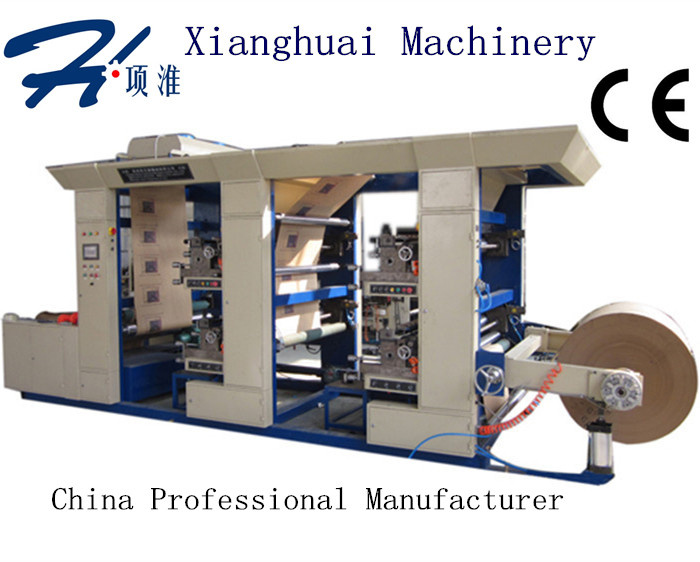

High Quality Release Paper Flexo Printing Machine
Use:
Kraft paper printing machine is suitable for printing such packing materials as polyethylene, polypro-plane plastic bag, glass paper and roll paper, etc.
And kraft paper printing machine is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes Bag, etc
Company Advantage:
Flexible packaging materials are printed on flexographic printing machine. Main activity of Xianghuai Machinery Technology Co.,Ltd. is focusing on producing this kind of machines. In order to meet a wide range of customer requirements we produce latest technology, compact many kinds of machines with central impression cylinder. Main features of our flexo printing machines are high quality prints, reliable operation, fast reel change and retooling, cost effective operation, fast ROI, easy handling and approach and machine operator-friendly covers.
Printed Samples:
Samples Pictures of Printing machine:
Procedure
A. Unwind:
1)Wind Roller: Air Shaft or Mechanical Roller
2)Uewind Control: Friction Type or Tension Control With Magnetic Powder
3)You can choose EPC(Edge Correction System)
B. Printing Unit:
1)Anilox Roller: Metal Anilox Roller or Ceramic Anilox Roller
2)Doctor Blade: General Doctor Blade(Single Blade) or Enclosed Doctor Blade
3)Ink: Water Ink, Water Base Ink, Alcohol Ink, UV Ink
C. Dryer: Electrical Heating or UV Dryer
D. Rewind:
1)Wind Roller: Air Shaft or Mechanical Roller
2)Rewind Control: Friction Type or Tension Control With Magnetic Powder
Parameters And Services Of Printing Machine:
|
printing machine Model |
YT-2600-2000 |
YT-4600-2000 |
YT-6600-2000 |
YT-8600-2000 |
|
Printing Machine color
|
2color(2+0,1+1) |
4color(4+0,3+1,2+2) |
6color(6+0,5+1,4+2,3+3) |
8color(8+0,7+1,6+2,5+3,4+4) |
|
Max. Material Width |
600mm |
600mm |
600mm |
600mm |
|
Max. Printing Width |
560mm |
560mm |
560mm |
560mm |
|
Printing Length |
200-1100mm |
|
Printing Speed |
5-70m/min |
5-70m/min |
5-70m/min |
5-70m/min |
|
Max. Diameter of Roll Material |
Φ600 mm(Non woven, filmΦ1000mm) |
|
Total Power |
9kw |
18kw |
22kw |
28kw |
|
Plate Thickness (including two-sided glue paper) |
2.38mm |
|
Machine Weight |
2000kg |
2800kg |
3600kg |
4600kg |
|
Overall Dimension |
3.3*1.6*2.3m |
4.8*1.6*2.4m |
4.8*1.6*2.8m |
5.4*1.6*3.5m |
|
Working Voltage |
380V 3-phase 50Hz |
Extra optional devices:
1) EPC web guider + Auto tension controller
2) Air Shaft
3)Can be customized with requirements |
|
|
Payment |
TT, LC at sight |
|
Mini order |
1Set |
Delivery time
|
20-60days after receive the deposit (different machine has different produce time). |
Packing and Marking
|
By standard export packing. If have Mark, please tell us before shipment. |
Installation
|
If need our engineer go to your country to install, please repare the material and bulid machine firstly. Also buyer should take charge the tickets go and back, live, food and salary of our engineer. |
Guarantee
|
One year, machine trouble is caused by nature not by human force from delivery time . Easily wear parts also is one year. after sale service for all life. |
Foundation: Our factory was established in 2008.
Application Fields: Our factory is a science and technology enterprise specializing in the production of complete flexible packaging equipment and related equipment.
Main Productions: Printing machine, flexo printing machine, flexographic printing machine, cutting machine, cross cutting machine, slitting machine and so on.
Company Strength: There are advanced industry mechanical designer and automation control professionals, so we have get the independent research and development, independent design, manufacture and installation and debugging ability of related equipment of printing industry. Meantime, we have got the consistent praise from customers at home and abroad.
