High Quality Resonable Priec Good Repation Flexo Printer
| Price: |
US $ 25900Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1Set |
| Pay Type: |
T/T |
High Quality Resonable Priec Good Repation Flexo Printer
Characteristics:1. Unwind unit: Magnetic powder with auto. tension, EPC device
2. Rewind unit: Magnetic powder with auto. tension
3. Machine is run with helical gear
4. Anilox roller is from Japan Murata brand
5. Easy operation, flexible starting, accurate color register.
6.The meter counter can set printing quantity according to the requirements.
7. Automatically at the quantity or when the material is cut off.
8. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting
9. The printing ink is spread by the anilox cylinder with even ink color.
10. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Technical Parameters:| 1)Main Parameters |
| Model: | QTL-4600 |
| Max Width of Material | 600mm |
| Max. Width of Printing: | 560mm |
| Material: | PVC:15~120μm,OPP:10~100μm,BOPP:10~100μm,
PE:15~150μm,NY:15~120μm,PET:15~100μm,
CPP:15~100μm, |
| Printing color: | 4 colors |
| Max. Length of Printing | 200-1100mm |
| Machinery mechanical speed | 10-90m/min |
| Max. Speed of Material Printing | 10-70m/min |
Thickness of Plate
(including the glue) | 2.38mm |
| machine weight | 400mKg |
| machine dimension | 4500*1800*2500mm |
| Power | Voltage:380V,3PH,50HZ |
| 2)Unwind Unit |
| Max. Length of Roller | 650mm |
| Max. Width of Material | 600mm |
| Max. Dia. of Unwind | ¢1000mm |
| Type of Unwind | Auto Tension with Magnetic Powder |
| Unwind Magnetism device | 5kg |
| Auto Tension Controller Unwind | 2-20kg |
| Unwind EPC | Electrical Edge Correction Device |
| Feeding shaft | Air shaft |
| Axis core diameter¢ | 76mm |
| 3)Traction Unit |
| Constitution of Traction | Aluminum roller, Chrome plated Roller |
| Traction Zones | 3 Zones |
| 4)Printing Unit |
| Constitution of Printing | Ceramic Anilox Roller with doctor blade .
Rubber Roller .Chrome plated roller.
Version roller Resin version |
| Girth of Pressing Roller | One set of 400mm standard for free |
| Material of Plate | Resin or Rubber |
| Principle of Work | Helical Gears |
| Adjusting of Register | Manual |
| Overprint Precision(mm) | Horizontal:+-0.30mm,Vertical:+-0.30mm |
| Plated-glued roller adjusting | Hydraulic type of plate-cylinder |
| Anilox Roller | Ceramic Anilox Roller:1pcs/per color |
| Rubber rollers | 1pcs/per color |
| Doctor Blade | 1pcs/per color |
| 5)Heating and Drying Unit |
| Type of Heating and drying | Blowing first then heating |
| Heating Zones | 7 zones |
| Power of Heating | 10.5kw |
| Assistance of Drying Length | 0.6m*2 |
| Blowers | 14pcs |
| Power of Blowers | 35w*1pcs |
| 6)Electrical Parts |
| Main motor | 3.7kw |
| Ink-Transfer Motor | 15w*4pcs |
| The inverter | 3.7kw (An Inverter Equips With the Main Motor) |
| Tension test | 2--20kg |
| 7)Rewind Unit |
| Max Width of Roller | 650mm |
| Max Width of Material | 600mm |
| Max. Dia. of Rewind | ¢1000mm |
| Type of Rewind | Magnetic powder with auto. tension |
| The receiving shaft | Air shaft |
| Axis core diameter | ¢76mm |

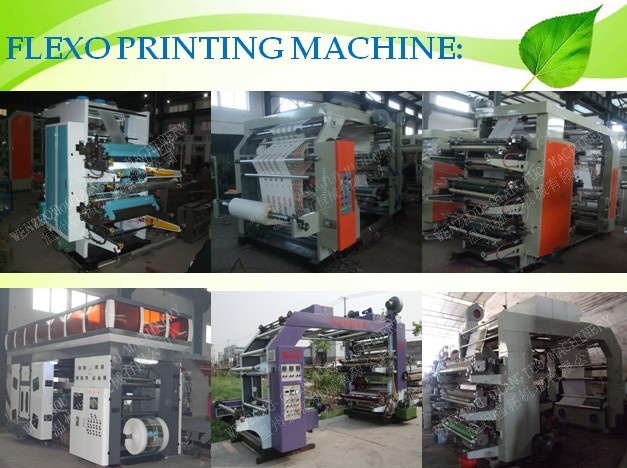

Machine Pictures:
Machine Delivery:
Printing Smaples:
Our Service:
1.Installation & Traning Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well. In addition, we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
2.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Also we offer one year guarantee period, paid service for whole life.Contact Information:Company: Wenzhou Qiangtuo Machinery Co., Ltd.
Add: Doubei Village, Wanquang Town, Pingyang County, Wenzhou City, Zhejiang Province, China
Contact Person: Selma, Lee
Tel: 0577-63708803 Mob: 0086-18968853020
Web: http://www.chinawgjx.com/ http://cnqiangtuo.en.made-in-china.com/Wenzhou Qiangtuo Machinery Co., Ltd. is always with you!
| Prod Model: |
QTL-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ceramic Anilox Roller: |
Murata |
| Tension Control: |
Auto. Tension |
| Unwind And Rewind: |
Magnetic Powder |
| Type: |
Ink Jet |
| Plate: |
Relief Printing |
| Embossing Structure: |
Rotary Letterpress |
| Color & Page: |
Double Faced Multi Colors |
| Printing Interface: |
No |
| Printing Speed: |
70m/Min |
| System Supported: |
No |
