Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Diameter: |
0.6-1.4mm |
| Aperture: |
1", 1/2", 2", 3/4" etc |
| Roll Width: |
0.6m-3m |
| Roll Lengtth: |
15.24m, 30m, 50m |
| Material: |
Galvanized Iron Wire |
| Application: |
Screen |
| Surface Treatment: |
Galvanized |
| Weave Method: |
Twist |
| Weave Technique: |
Twist |
Product Description
Product Description

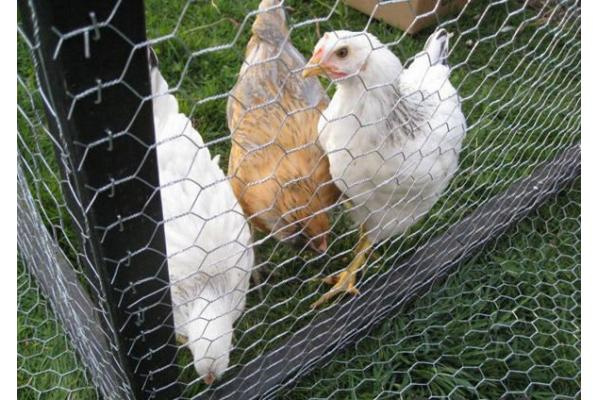

PEACE Chicken wire netting/hexagonal wire mesh are manufactured with the highest standards using the quality wire. As to the materials it can be divided into galvanized , pvc coated and stainless steel wire . We supply a full service from design -manufacturing-shippings issues . The mesh produced to meet BS 10244 standards .
[ Material ]
Galvanized surface
1). Galvanized redrawing wire
2). Electro galvanized wire
3). Hot dipped galvanized wire before weaving
4). Hot dipped galvanized wire after weaving
PVC/PE coated surface , the inner material can be:
1). Electro galvanized wire + PVC coated
2). Iron wire + PVC coated
3). Hot dipped galvanized wire + PVC coated
Two standard zinc coating for hot-dipped galvanzied:
1) normal zinc coating(50-60g/m2)
2) heavy zinc coating(260g/m2)
Tips:
1. Hot-dipped galvanized has better corrosion resistance than electro galvanized, because the thickness of zinc coating is thicker.
2. For hot-dipped galvanized, there are two types: galvanized before weaving & galvanized after weaving; for electro galvanized, it can only be produced into galvanized before weaving.
Mesh size | Min. Gal.
v.G/SQ.M | Width | Wire Gauge (BWG) |
| Inch | mm | Tolerance (mm) |
|
|
|
| 3/8" | 10mm | ±1.0 | 145 | 0.5m -1m | 27, 26, 25, 24, 23 |
| 1/2" | 13mm | ±1.5 | 95 | 0.5m -2m | 25, 24, 23, 22, 21 |
| 5/8" | 16mm | ±2.0 | 70 | 0.5m -2m | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | ±3.0 | 55 | 0.5m -2m | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | ±3.0 | 55 | 0.5m -2m | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 31mm | ±4.0 | 40 | 0.5m -2m | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | ±5.0 | 45 | 0.5m -2m | 23, 22, 21, 20, 19, 18 |
| 2" | 50mm | ±6.0 | 40 | 0.5m -2m | 23, 22, 21, 20, 19, 18 |
| 2-1/2" | 65mm | ±7.0 | 30 | 0.5m -2m | 21, 20, 19, 18 |
| 3" | 75mm | ±8.0 | 30 | 0.5m -2m | 20, 19, 18, 17 |
| 4" | 100mm | ±8.0 | 30 | 0.5m -2m | 19, 18, 17, 16 |
Galvanized hexagonal wire netting in reverse twist (width 0.5m - 2.0m) |
| Mesh size | Wire Gauge(BWG) |
| Inch | mm | Tolerance (mm) | (BWG) |
| 1" | 25mm | ±3.0 | 23,22,21,20,19,18 |
| 1-1/4" | 32mm | ±4.0 | 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | ±5.0 | 21, 20, 19, 18 |
| 2" | 50mm | ±6.0 | 20, 19, 18, 17 |
| 3" | 75mm | ±8.0 | 20, 19, 18, 17, 16 |
[ Weave Type]
1). normal twist ( under 25mm hole size )
2). reverse twist ( more than 25 mm hole size, the mesh structure more stanble and strong )
[ Usage ]
-Breeders of birds and animals.
-In some constructions can be used as support frieze.
-Cages for fishing lobsters and crabs.
-In the industrial sector as a coating.
-To fabricate insulating material.
6 x 6mm hole - Mouse protection
13 x 13mm hole - Fruit cages, bird protection, engineering uses
13 x 25mm hole - Bird protection, enclosures for small animals
20 x 20mm hole - Rat and squirrel protection
25 x 25mm hole - Fox protection, cat and dog enclosures
50 x 50mm hole - Fox protection, dog enclosures
[ Advantages ]
1. Delivery time usually within 25-30 days.
2. Packed with strong PVC bag, at your request.
3. If there is quality problem, we can compensate accordingly.
[ Characterics ]
-Durable.
-Compliant.
-High performance.
-Easy installation.
-Wide range of applications.
-Corrosion resistant.
-Compact Presentation.
-Comfort in handling.
