Fenghua Good Brother Lighting Co., Ltd. >> High Quality Siedentoph Trinocular Inverted Tissue Culture Microscope for Lab & Research Use with Infinite Optical Plan Objectives Lens

High Quality Siedentoph Trinocular Inverted Tissue Culture Microscope for Lab & Research Use with Infinite Optical Plan Objectives Lens

Name: High Quality Siedentoph Trinocular Inverted Tissue Culture Microscope for Lab & Research Use with Infinite Optical Plan Objectives Lens
Brand: china-manufacturer-directory.com
SKU: 762706735
Availability: InStock
Rating: 4.9 (118 reviews)

Supplier:	Fenghua Good Brother Lighting Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,DAP

Product Specifications

Prod Model:	IB100T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Optical System:	Infinity Corrected Optical System
Viewing Head:	Compensation Trinocular Head
Ocular:	Wf10X/22 Extra Widle Field Eyepiece
Infintie Plan Objctives:	4X 40X,Phase Contrast Objective 10X 20X
Condenser:	Lwd N.a.0.3 Condenser,Wld72mm
Focusing:	Coaxial Coarse&Fine Adjustment
Stage:	Plain Stage with Glass Insert
Light Source:	AC220V/110V,6V/30W Halogen Lamp
Warranty:	3year Mechanical&Opticalsystem
Magnification:	100-500X
Type:	Biological
Number Of Cylinder:	≥Three
Mobility:	Desktop
Shape:	Pentagonal Prism
Principle:	Optics
Principle Of Optics:	Brightfield Microscope

Product Description

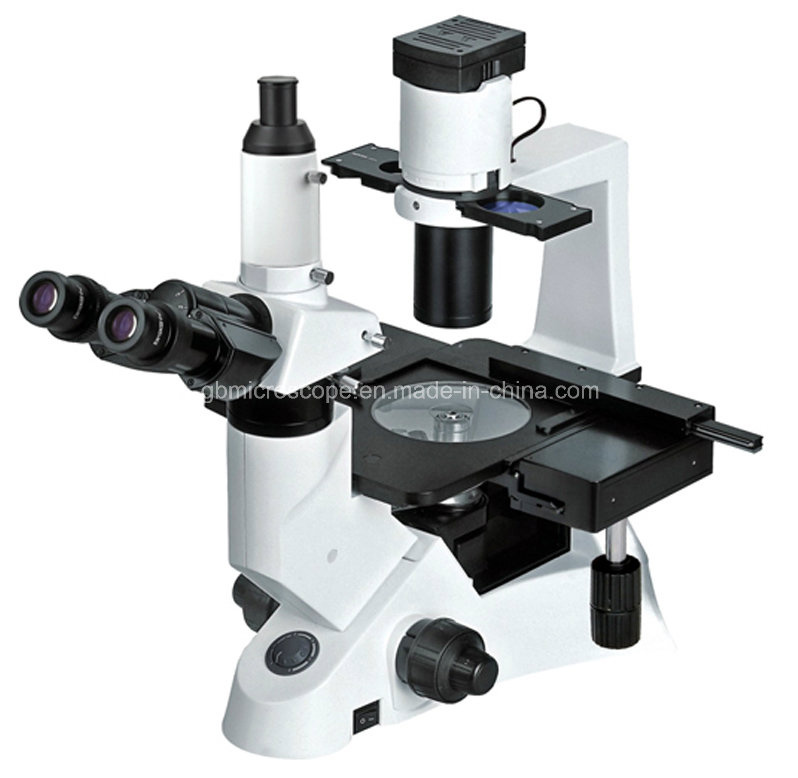

Inverted Tissue Culture Microscope:IB100 series
Description:
IB100 series Inverted Biological Microscope with Extra Wide Field up to dia 22mm and Infinite Plan Optical System ,This microscope is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this inverted biological microscope makes your work enjoyable. a digital camera or digital eyepiece can be added to the trinocular head to take photos & videos.

	Standard Specification	IB100T	IB100B
Optical System	Infinite Corrected Optical System	√	√
Viewing Head	Compensation Trinocular head inclined at30°, Interpupillary Distance 48-75mm,	√
	Compensation Binocular head inclined at 30°, Interpupillary Distance 48-75mm		√
	Tiltable Binocular head inclined at 5°-35°, Interpupillary Distance 48-75mm	o	o
	Tiltable Trinocular head inclined at 5°-35°, Interpupillary Distance 48-75mm	o	o
Eyepiece	Extra Wide Field EWF10X/22 eyepiece	√	√
Nosepiece	Backward Quintuple Nosepiece	√	√
Objectives	LWD Infinite Plan Achromatic Objective 4X/0.1,WD17.3mm;40X(S)/0.6,WD2.1mm LWD Infinite Plan Phase contrast Objectives: 10X/0.25,; 20X/0.4,	√	√
Objectives	LWD Infinite Plan objective 10X, 20X, Plan phase contrast objective; 40x	o	o
Condenser	ELWD Condenser NA 0.3, LWD 72mm(without the Condenser up to 150mm)	√	√
Telescope	Centering Telescope	√	√
Phase Annulus	10X-20X,40X phase Annulus Plate	√	√
Stage	Plain Stage 160X250mm, Glass insert, Auxilliary stage 70X180mm	√	√
	Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120X78MM	o	o
	Dia 35mm Petri Dish Holder	o	o
	Dia 54mm Slide Glass Holder	o	o
	Terasaki Holder	o	o
Focusing System	Coaxial Coarse&Fine Adjustment, Fine Division 0.002mm, Moving range up 8mm,down3mm	√	√
Illumination	AC220V/110V, 6V/30W Halogen Lamp, Brightness Adjustable.	√	√
Illumination	Super Light 3W LED illumination	o	o
Filters	Blue, Green, and Ground Glass	√	√
Optional parts	Inverted Fluorescent attachment F100	o	o
	Video Adapter with C mount	o	o
	High resolution COMS Digital Camera 3.0MP, 5.0MP, 9.0MP with software	o	o

Note: "√" Standard Specification, "o"Optional Parts
