Product Specifications
| Prod Model: |
TRKC23-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
TB |
Product Description

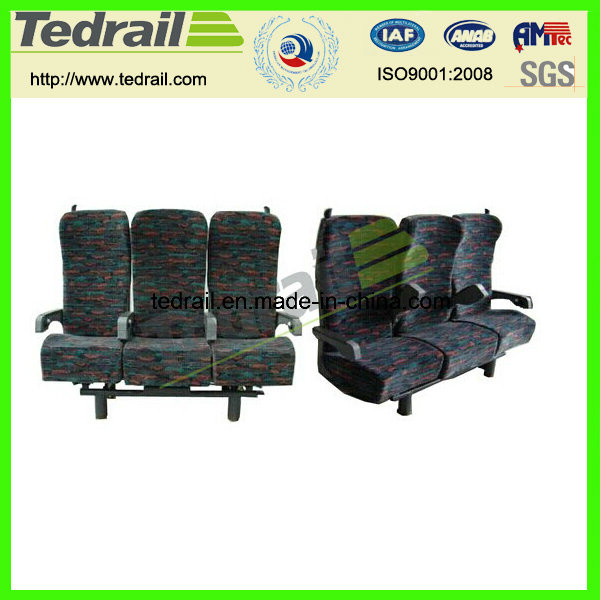

This seat ordering party is the Chinese Ministry of Railways, the assembly of vehicles for speed second class chair (normal class), seat lightweight design, the seat weighs 56 kg less.
The back cushion of this seat is suitable, it meets ergonomics.
Seats can rotate 180 ° , which makes the seat be always the same as the way of train.
Handrails on both sides of double armrests are fixed, center armrest can be turned up, angle range from 0 ° To 95 ° .
Seat back angle can be freely adjusted and locked from 5 ° To 24.5 ° .
The seat cushion can slide back and forth, the maximum sliding distance is 60mm, it is controlled by button, the seat cushion can be fixed in anywhere.
Collapsible table board is equipped on the top of armrest, the board is flexible, reliable and good use.
The bracket of table is made of magnesium alloy material, a steel wear sleeve is set between bracket and Chassis connecting shaft.
Books mesh bag and handle are set in the back of each seat.
Socket and internet access are installed in part of seats, so that users can surf the internet and use electrical equipment.
The material of exposed surface is masked cloth, material and color can be produced by customer's require.
The key parts of seat have passed pressure tested and shock testing, durability is excellent.
Seat has passed High and low temperature and humidity test, it is suitable for a variety of natural environment.
All raw materials are green environmental materials, environmental performance in line with TB / T 3139-2006 requirements.
Seats and seat composed of non-metallic fire performance in accordance with DIN5510-2; 2009-05 standards, including toxicity index flammability, smoke generation, droplet properties, toxicity, flammability, etc. Meet DIN5510-2; 2009-05's requirements.
Seat meets RAMS requirements, it is reliably, effective, repairable and safe.
