High Quality WiFi Gm Mdi Multiple Diagnostic Interface Support Original Software

Product Specifications

Prod Model:	GM02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality Warrany:	1 Year
Ship Date:	After Payment Confirmed
Technical Support:	Yes
Certification:	CE
Update Method:	by Internet

Product Description

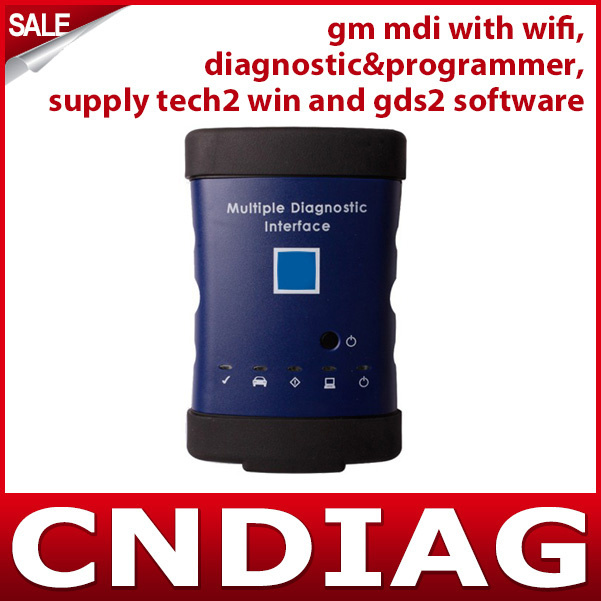

High Quality WiFi GM MDI Multiple Diagnostic Interface support original software

Welcome to contact us for check the PCB picture of this GM MDI, It is the best quality in China market.

General Motors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software Global Diagnostic System DGS& Mutiple diagnostic Interface MDI

Latest High Quality GM MDI Multiple Diagnostic Interface
GM MDI (Multiple Diagnostic Interface) for wireless ECU reprogramming utilizing J2534.
The GM MDI is initially being introduced with Pass-Thruprogramming capabilities only. It can be used to perform Pass-Thru programming on all vehicles built since 1993 and willsupport all vehicles into the future. The GM MDI will be required to perform diagnostics onselected NAO vehicles for model year 2009. Diagnostic soft-ware is scheduled to be released for the GM MDI during thefourth quarter of 2008.
When diagnostics are introduced, the MDI will also get a remote data record capability. This permits recording data duringa road test, similar to the Tech 2 Snap Shot function. A trigger switch connector is provided for this purpose. Regulations require programming procedures to be compliantwith SAE Recommended Practice J2534. The GM SPS is COM-pliant with SAE Recommended Practice J2534, and the GMMDI is compliant with the portions of SAE J2534 that areapplicable for GM vehicles.
GM MDI Interface Description
The MDI is used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems. The MDI is designed to connect the vehicle to a TIS 2 Web PC computer application which then functions though the MDI for data transfer and Electronic Control Unit (ECU) reprogramming. See Figure IV-2 for the location of the connectors and indicators (LEDs) on the MDI.

Newest GM MDI features:
1. With opel Global tis global diagnostic system
2. Support offline lease function
3. Support Opel offline programming function
4. With GDS2 diagnostic system
5. Tech2win diagnostic software support adding latest software
6. Support programming online
7. Support cable communication
8. Support wireless communication
9. Support original factory latest software
10. With European Chevrolet Global tis, Supports European Chevrolet offline programming
11. All Chips are new and original

General Motors Global Electrical Architecture (Global A) and Global Diagnostic Hardware &Software
Global Diagnostic System DGS& Mutiple diagnostic Interface MDI

MDI and GDS Background

MDI is an interface between the vehicle DLC and a PC (by wired USB, wired Ethernet, wireless Ethernet ) and TIS2web.
Can be Used for SPS programming on existing and future SGM vehicles
Required for diagnostics on new SGM Global A Electrical Architecture Vehicles
Used with TIS2Web, GM Global Diagnostics System (GDS), SPS and MDI Manager Software
Allows for GDS diagnostic
GM Multiple Diagnostic Interface (MDI)
All current and most legacy vehicle protocols: UART, KW2000, CLASS2, GM LAN, etc.
Needed for Global A architechture vehicles
Supports Service Programming System (SPS)
Pass through progrmming on past model and Global A vehicles
Supports PC-Based diagnostics with rollout of the Global Diagnostic System (GDS) application
Includes Flight Recorder Mode

New Diagnostic Application Software required for Global A Vehicles

Global Diagnostic System (GDS)
PC-based software diagnsotics
DTCs, Diagnostics, Data Display & Visualization, Device Controls, Special Tests, Flight Recorder management, etc.
GDS is software which runs on a specific PC. Updates received via TIS2Web.
Multiple display options. More space for diagnsotics. Session management for multiple us.
