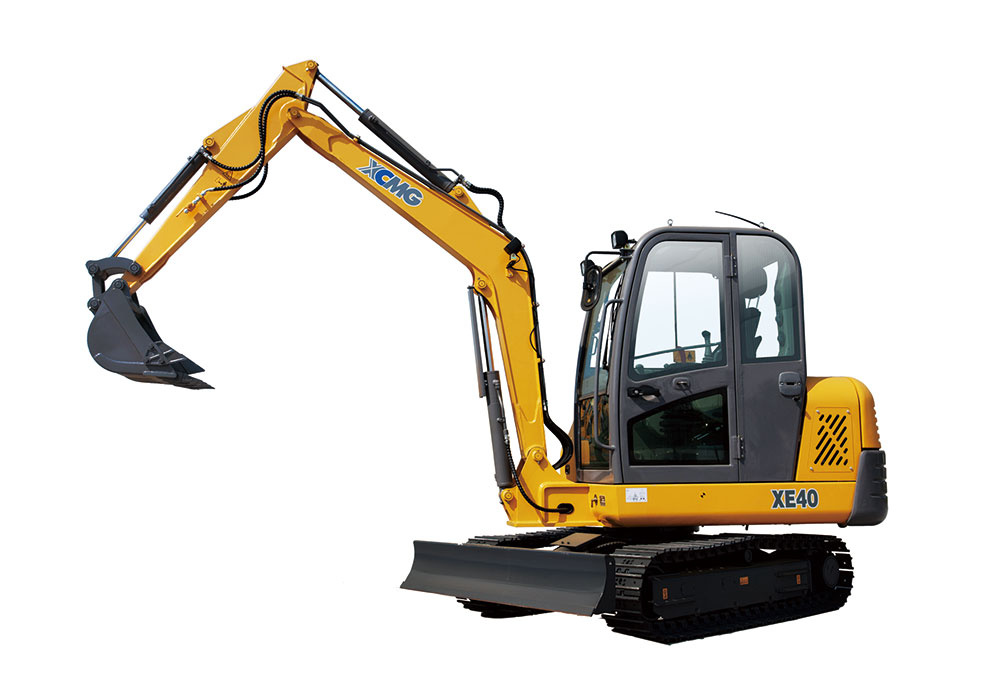

High Quality XCMG Crawler Excavator Xe40

Name: High Quality XCMG Crawler Excavator Xe40
Brand: china-manufacturer-directory.com
SKU: 765439925
Availability: InStock
Rating: 4.6 (52 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

XCMG mini Crawler Excavator XE40 of high quality with a reasonable price.

PARAMETER SPARE

Model		XE40C
Operating weight		kg	4050
Standard bucket capacity		m³	0.14
Engine	Engine Model	/	4TNV88
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	×
	Air to air intercooler	/	×
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	27.1/2200
	Max. torque/speed	N.m	142/1320
	Displacement	L	2.19
The main performance	Travel speed	km/h	4.2/2.6
	Swing speed	r/min	13.5
	Max. gradeability	/	30
	Ground pressure	kPa	36.3
	Max.Bucket digging force	kN	23.2
	Max.arm crowd force	kN	19.3
	Max.traction force		33.9
Hydraulic system	Main pump	/	Japan nachi
	Rate flow of main pump	L/min	1×110+11
	Max pressure of prime relief valve	MPa	21
	Max pressure of travel system	MPa	21
	Max pressure of swing system	MPa	21
	Max pressure of pilot system	MPa	3.9
	Fuel tank capacity	L	65
Oil capacity	Hydraulic tank capacity	L	70
	Engine lubrication	L	7.4
	A Overall length	mm	5455
Overall dimensions	B Overall width	mm	1650
	C Overall height	mm	2440
	D Overall width of upperstructure	mm	1500
	E Track length	mm	2198
	F Overall width of undercarriage	mm	1635
	G crawer width	mm	300
	H Dozer black(width/height)	mm	1650×300
	I Tumbler distance	mm	1721
	J Crawer gauge	mm	1335
	K Clearance under counter weight	mm	578
	L Ground clearance	mm	350
	M Min.tail swing radius	mm	1480
	A Max. digging height	mm	5320
Working range	B Max. dumping height	mm	3700
	C Max. digging depth	mm	3600
	E Max. vertical wall digging depth	mm	2250
	F Max. digging reach	mm	5810
	G Min. swing radius	mm	2385
	H Max.dozer lifting height	mm	255
	I Max.dozer cutting depth	mm	375
	Angle of arm deflection	Degree	/

Prod Model:	XE40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operating Weight:	4050kg
Standard Bucket Capacity:	0.14
Type:	Crawler Excavator
Size:	Small-Scale
Certification:	CE
Condition:	New

China Anhui Hengfei Import And Export Co., Ltd. is An Import And Export Trading Company That Is Authorized By The Chinese Ministry Of Foreign Trade And Economic Cooperation To Set Up. It Is A Branch Of XCMG International Sales Department. It Is Also The Longterm Partner Of China ZOOMLION. It Is Founded In 1995 And Still Maintains The Bellwether Status In Chinese Construction Machinery Export Industry. At Present, It Ranks 10th In The World Construction Machinery Industry, Ranks 158th In China Top 500 Enterprises And It Is The Greatest Construction Machinery Export Enterprise In China.

China Anhui Hengfei Import And Export Co., Ltd. Actively Promote The Cooperation With International Major Companies And Vigorously Implement The Internationalization Strategy Which Is Supported By The Products Outlet. It Has Sold Its Products To Southeast Asia, The Middle East, Africa, South And North America And Other Principal Markets, And The Average Annual Earning Foreign Exchange Through Export Is 500 Million Dollars.

China Anhui Hengfei Import And Export Co., Ltd. Devotes Itself To The Selling Of High Quality Construction Machinery Products And The Product Types Include Truck Crane (16t To 200t Series Of Products), Crawling Crane (55t To 550t Series Of Products), Forklift, Loader, Road Roller, Land Leveler And The Series Products Of Excavator. Our Leading Brands Are XCMG, ZOOMLION And TADANO. The Types Of Our Products Are Complete And The Price Is Reasonable. There Are Guarantee Of The National Quality Authentication Certificate And Perfect Global After-sales Service Security System. Please Be Assured The Purchase. We Are Always Sincere And Serious To Our Customers And We Have Always Dedicated Ourselves To Achieving The Goal Of Mutual Benefit. We Have Professional Technicians And Experts To Offer You Technical Guidence, and Customers' Visit Are All Warmly Welcomed. If You Are Interested In Our Products, Please Feel Free To Contact Us. We Are Looking Forward To Your Reply.

Contect Us By The Following Ways:

Tel: 0086 0551 65261327

Phone: 086 13955147287
