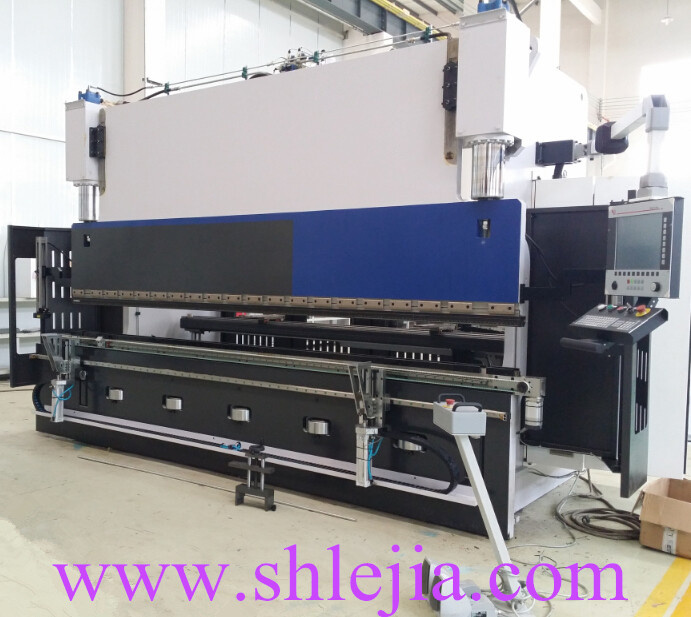

High Qualtity CNC Press Brake (CNC benidng machine) 170t/4100mm

Name: High Qualtity CNC Press Brake (CNC benidng machine) 170t/4100mm
Brand: china-manufacturer-directory.com
SKU: 720772855
Availability: InStock
Rating: 4.9 (144 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Advanced Configuration,high precision and high efficiency CNC hydraulic press brake
Large cylinder stroke,ultra-highopening,meet the large size workpiece bending requirements
Holistic welding structure
Electro-hydraulic servo system,the closed-loop control
The slider synchronization
Double crowing mechanism
Standard configuration with 4+1axes:
Y1(upward-downward of left cylinder)
Y2(upward-downward of right cylinder)
X(forward-backward of backgauge)
R(upward-downward of right backgauge)
V(hydraulic crowning)
High performance servo motor driver
Modular design,easy to upgrade for customers
Heavy load linear guide orientation,big guide process
ball screw driver,high accuracy,high speed,good stability

Technical Parameters:

Model		PSH-110/3200HP	PSH-110/4100HP	PSH-170/3200HP	PSH-170/4100HP	PSH-250/3200HP	PSH-250/4100HP	PSH-320/3200HP	PSH-320/4100HP
Nominal pressure KN		1100	1100	1700	1700	2500	2500	3200	3200
Max.bending width mm		3200	4100	3200	4100	3200	4100	3200	4100
Distance between uprights mm		2700	3600	2700	3600	2700	3600	2700	3600
Opening height mm		700	700	700	700	700	700	700	700
Throat depth mm		400	400	400	400	400	400	400	400
Cylinder stroke mm		400	400	400	400	400	400	400	400
Main power KW		11	11	15	15	18.5	18.5	22	22
Oil volume L		280	280	280	280	420	420	420	420
Speed mm/s	Approaching	185	485	160	160	125	125	90	90
	Working	10	10	10	10	9	9	9	9
	Returning	160	160	140	140	120	120	115	115
dimension mm	Length	4130	5030	4150	5050	4170	5070	4190	5090
	Width	1800	1800	1850	1850	1940	1940	2030	2030
	Height	3150	3150	3160	3160	3280	3280	3330	3330
Weight Kg		10200	11850	12100	14000	15700	18200	18800	22100

Prod Model:	PSH-170T/4100HP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
German Voith Pump:	German Rexroth Hydraulic System
Rsf Linear Encoder:	Schneider Key Electrics
Type:	Press Brake
Type For Cutting Machine:	CNC Cutting Machine
Type For Fold-bending Machine:	Hydraulic Fold-bend Machine
Automation:	Automatic

Shanghai Lejia CNC Machine Co., Ltd. is a national new technological enterprise and national important "Torch Plan" implementation organization with integration of research and development, machinery manufacturing, tools designing and building, sales and import and export authority rigths. We are professional manufacturing company holding many domestic and international certificates.

Manufacture ranges: CNC Press brake Machine, shearing machine, CNC-Punch, and Slotting Machine, Rolling bending machine, Straightening, Unrolling, Shearing Production Line and normal Forging Machinery. And pressbrake tools. Shearing blade. Punch tools, etc. The products are awarded highly by the clients with the fame of those precise, reliable and high qualified products produced by the state -in- art manufacturing techniques, which are of reasonable price and excellent after-sale-service.

Our Company is dedicated to contribution for nation by sustainable promotion and improvement in the field of CNC machinery, CNC Machinery Tools and-Cutter-localization.
