Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Western Union |

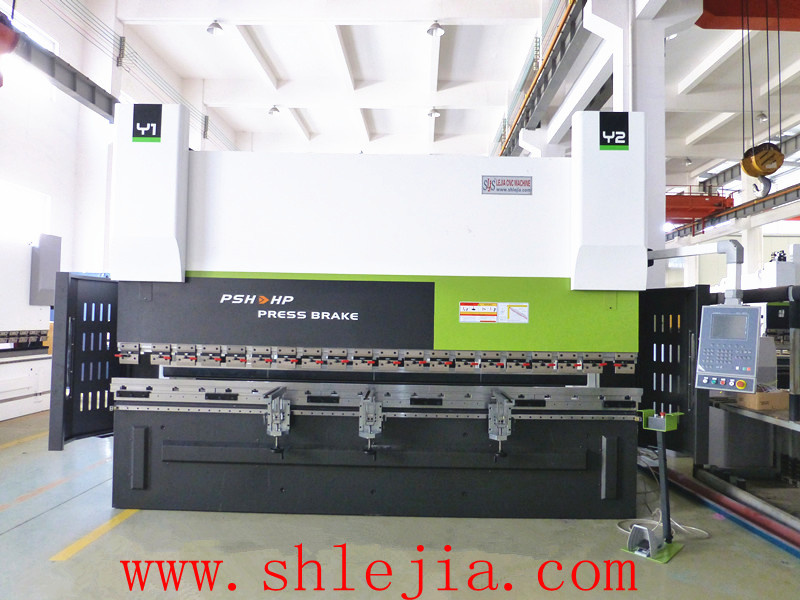

Prod Model: | PSH-HP 250T/3200mm |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Double Crowning System: | Large Stroke |
Electro-Hydraulic Servo System: | Closed-Loop Control |
Type: | Press Brake |
Type For Cutting Machine: | CNC Cutting Machine |
Type For Fold-bending Machine: | Hydraulic Fold-bend Machine |
Automation: | Automatic |
Product features:
Advanced Configuration,high precision and high efficiency CNC hydraulic press brake
Large cylinder stroke,ultra-highopening,meet the large size workpiece bending requirements
Holistic welding structure
Electro-hydraulic servo system,the closed-loop control
The slider synchronization
Double crowing mechanism
Standard configuration with 4+1axes:
Y1(upward-downward of left cylinder)
Y2(upward-downward of right cylinder)
X(forward-backward of backgauge)
R(upward-downward of right backgauge)
V(hydraulic crowning)
High performance servo motor driver
Modular design,easy to upgrade for customers
Heavy load linear guide orientation,big guide process
ball screw driver,high accuracy,high speed,good stability
Technical Parameters:
Model | PSH-110/3200HP | PSH-110/4100HP | PSH-170/3200HP | PSH-170/4100HP | PSH-250/3200HP | PSH-250/4100HP | PSH-320/3200HP | PSH-320/4100HP | |
Nominal pressure KN | 1100 | 1100 | 1700 | 1700 | 2500 | 2500 | 3200 | 3200 | |
Max.bending width mm | 3200 | 4100 | 3200 | 4100 | 3200 | 4100 | 3200 | 4100 | |
Distance between uprights mm | 2700 | 3600 | 2700 | 3600 | 2700 | 3600 | 2700 | 3600 | |
Opening height mm | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | |
Throat depth mm | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
Cylinder stroke mm | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
Main power KW | 11 | 11 | 15 | 15 | 18.5 | 18.5 | 22 | 22 | |
Oil volume L | 280 | 280 | 280 | 280 | 420 | 420 | 420 | 420 | |
Speed mm/s | Approaching | 185 | 485 | 160 | 160 | 125 | 125 | 90 | 90 |
Working | 10 | 10 | 10 | 10 | 9 | 9 | 9 | 9 | |
Returning | 160 | 160 | 140 | 140 | 120 | 120 | 115 | 115 | |
dimension mm | Length | 4130 | 5030 | 4150 | 5050 | 4170 | 5070 | 4190 | 5090 |
Width | 1800 | 1800 | 1850 | 1850 | 1940 | 1940 | 2030 | 2030 | |
Height | 3150 | 3150 | 3160 | 3160 | 3280 | 3280 | 3330 | 3330 | |
Weight Kg | 10200 | 11850 | 12100 | 14000 | 15700 | 18200 | 18800 | 22100 |
