High Quantity Filter Mesh Stainless Steel Wire Mesh 201/304
Product Specifications
| Prod Model: |
QK-FI001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Characteristic: |
Super Precision, Uniform Wire Diameter |
| Application: |
Filter, Construction Wire Mesh, Protecting Mesh, S |
| Material Type: |
Stainless Steel Wire |
| Usually Type: |
Stainless Steel Punching Hole Wire Mesh |
| Weave Technique: |
Plain Weave |
| Wire Mesh Width: |
1.5m |
| Technique: |
Woven |
| Nickels: |
0% |
| Size: |
Custom |
| Export Markes: |
Global |
| Material: |
Metal |
| Usage: |
Solid Filter |
| Type: |
Black Wire Mesh |
| Hole Shape: |
Square |
Product Description

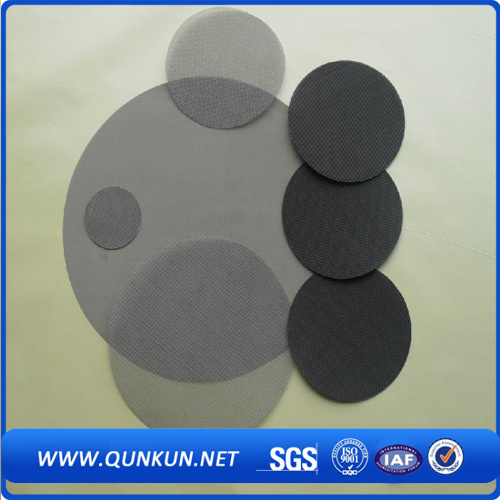

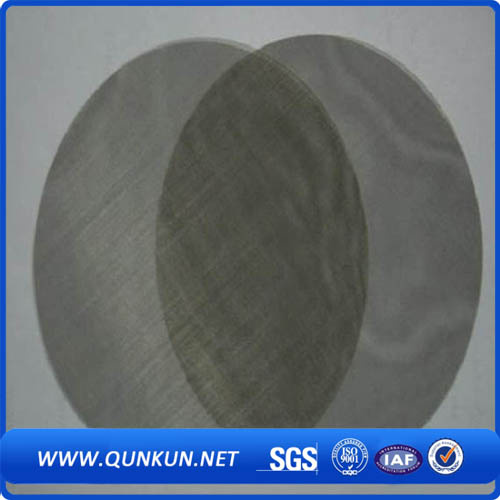

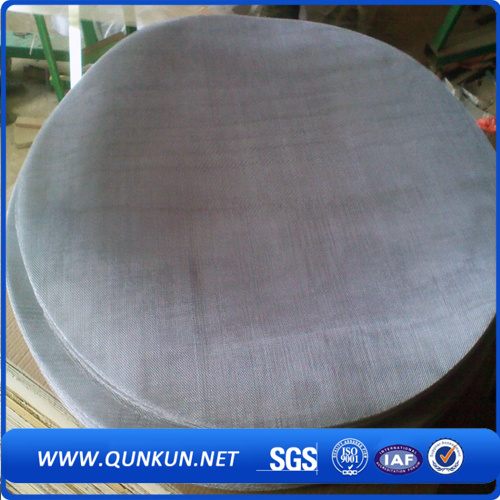

Stainless steel filter mesh
Product Description
We can supply filter discs made of metal wire mesh in single
layer or multi-layer. Double layer or three layer, Can be
classified into round, square, kidney shape, oval and other
special shapes according to the outside designs.
1. Material: SUS302, 304, 316, 316L, 317etc.
2. Type: weave mesh, expanded metal.
3. Weave style: plain weave, ducth weave
4. Disc Dia: From 5mm to 600mm
5. Stainless Steel Wire Mesh Material: Stainless steel wire.
6. Stainless Steel Wire Mesh Weaving: Plain weave, oblique,
plain/twill mat type dense weave.
7. Mesh: 1-2800 mesh.
8. Applications of Filter Discs: Filter discs are mainly used in
the absorption, evaporation and filtration process in
petroleum, chemical, medicine, metallurgy, machinery, ship
and automobiles to delete the mist drop or liquid foam or
used as air filter in cars and trucks Specification| Mesh | BWG | Specification | weight |
| 18*18 | 0.45mm | 3`*100` | 50.8kg |
| 20*20 | 0.35mm | 3`*100` | 34.1kg |
| 22*22 | 0.30mm | 3`*100` | 27kg |
| 24*24 | 0.33mm | 3`*100` | 36.4kg |
| 26*26 | 0.33mm | 3`*100` | 39.4kg |
| 28*28 | 0.30mm | 3`*100` | 35.1kg |
| 30*30 | 0.30mm | 3`*100` | 37.6kg |
| 32*32 | 0.20mm | 3`*100` | 17.8kg |
| 34*34 | 0.22mm | 3`*100` | 22.9kg |
| 36*36 | 0.22mm | 3`*100` | 24.2kg |
| 38*38 | 0.22mm | 3`*100` | 25.6kg |
| 40*40 | 0.20mm | 3`*100` | 22.3kg |
| 42*42 | 0.17mm | 3`*100` | 16.9kg |
| 44*44 | 0.17mm | 3`*100` | 17.7kg |
| 46*46 | 0.17mm | 3`*100` | 18.5kg |
| 48*48 | 0.17mm | 3`*100` | 19.3kg |
| 50*50 | 0.17mm | 3`*100` | 20.1kg |
| 56*56 | 0.17mm | 3`*100` | 22.5kg |
| 60*60 | 0.17mm | 3`*100` | 24.2kg |
