Product Specifications
| Prod Model: |
PEX series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001,ISO14000,CE |
| After Sale Service: |
We Offer |
| Application: |
Stone Crushing |
| Installation: |
Under Our Engineer's Guide |
| Benefits: |
High Capacity 10-15 M3/H |
| Company Established: |
in 1956 |
| Spare Parts: |
We Offer |
| Experience: |
More Than 50 Years |
| Factory Area: |
55000m2 |
| Output: |
Can Be Customized |
| Type: |
Jaw Crusher |
| Crushing Style: |
Grinding and Impact |
| Crushing Degree: |
Coarse Crusher |
| Compressive Strength (',For Crushing): |
250-300MPA |
| Principle: |
Fixed Culling |
| Finished Surface: |
Cut Off Tool |
| Tongs' Features: |
Dedicated Tongs |
| Cutter Material: |
High-Speed Steel |
Product Description

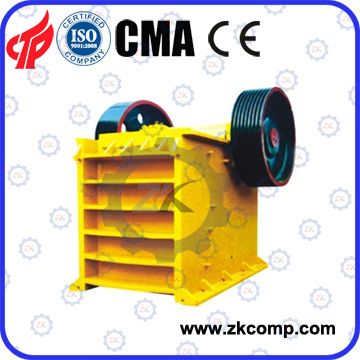

Crushers, Jaw crusher, impact crushers:
Crushers Application
Our Jaw Crushers is a trusted and reliable brand for its high quality and good manufacturing. It specializes in producing jaw crusher which is widely applied to crush high hardness, MID hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost per ton.
Jaw Crushers series have many advantages, such as big reduction ratio, even granularity, simple structure, reliable working condition, convenient repair and economic operation, which are widely used for mine, smelting, building material, road, railway, irrigation works, chemical and materials with compression strength no more than 320 Mpa.
The structure of Jaw Crusher
The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs
Jaw crushers Features and Benefits:
1) High capacity
2) High reliability
3) Adjustable for easy wear parts
4) over-loading protection
5) simple structure and easy to operate
6) Long service time
7) Easy replacement of wear and spare parts
8) Less costly and Easy to install
9) Wide range of choices
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://www.inczk.com/ & http://www.zkcomp.com/
24-hour Free Sales Consulting Phone: 861-0371 -5590 2866.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://www.zkcomp.com/calcining/558. Html
Rotary Kiln: http://www.inczk.com/Products/459. Html
Preheater: http://www.zkcomp.com/calcining/605. Html
Cement Mill: http://www.inczk.com/Products/460. Html
Rotary Dryer: http://www.zkcomp.com/calcining/564. Html
Raw Mill: http://www.inczk.com/Products/1373. Html
Ball Mill: http://www.zkcomp.com/grinding/582. Html
| Mode | Size of Feed
Opening ( mm) | Max Feed
Size ( mm ) | Discharge Range
Opening (mm ) | Capacity(m 3 /h) | Motor Power(Kw) | Weight(t) |
| PE-250× 400 | 250× 400 | 210 | 20-60 | 3-13 | 15 | 2.8 |
| PE-400× 600 | 400× 600 | 340 | 40-100 | 10-35 | 30 | 6.5 |
| PE-500× 750 | 500× 750 | 425 | 50-100 | 25-60 | 55 | 10.6 |
| PE-600× 900 | 600× 900 | 500 | 65-180 | 30-85 | 55-75 | 15.5 |
| PE-750× 1060 | 750× 1060 | 630 | 80-180 | 72-150 | 90-110 | 28 |
| PE-800× 1060 | 800× 1060 | 680 | 100-200 | 85-143 | 90-110 | 30 |
| PE-870× 1060 | 870× 1060 | 750 | 170-270 | 145-235 | 90-110 | 30.5 |
| PE-900× 1060 | 900× 1060 | 780 | 200-290 | 170-250 | 90-110 | 31 |
| PE-900× 1200 | 900× 1200 | 780 | 95-255 | 100-240 | 110-132 | 49 |
| PE-1000× 1200 | 1000× 1200 | 850 | 195-280 | 190-275 | 110-132 | 51 |
| PE-1200× 1500 | 1200× 1500 | 1020 | 150-300 | 250-500 | 160 | 100.9 |
Henan Zhengzhou Mining Machinery Co., Ltd, was established in 1956 and located in Xingyang of Zhengzhou City of Henan Province, specially produces metallurgical machinery. It covers an area of more than 55000m2 and various building area of 28000 m2. It has the annual income of more than RMB180million in 2008 and now the fixed assets of over RMB80 million. In the plant, there are branches and workshops of cast iron, cast steel, forging, heavy machine tool processing, rivet welding and heat treatment etc. Its perfect and complete equipment, advanced detection means, strong technical force establish good foundation for the reliable production.
Main products include: Jaw style, hammer style, impact style and roll style crusher; Ball mill, direct fired drier, rotary kiln, preheater, coker, magnetic separator, flotation machine, classifier, feeder, hoisting machine and conveyor etc. These complete sets of machinery for cement building material, metallurgy, coking and chemical smelting etc are sold well in the world. Our company also has professional installation and construction teams and perfect after-sales service guaranty system.
With the development of the People's Republic of China, Henan Zhengzhou Mining Machinery Co., Ltd undergoes frequent difficulties and has accomplished over 50 years' brilliant history. Initially from the manufacturing of original single machine till today's series of and complete sets of mining metallurgical machinery, it has made great contribution to the development and utilization of mineral resources of our country. For many years, each spot check and annual examination carried by National Mining Machinery Quality Supervision and Inspection Center for our products is acceptable and our company is always appointed as Credible and Reputed Enterprise by Henan Provincial Administration of Industry and Commerce.
Henan Zhengzhou Mining Machinery Co., Ltd will continue providing excellent products and service for our society, with the guideline of "survival by quality, development by good faith, users supreme". Our company would make sincere cooperation with all circles for mutual benefit and common development.
