Shenzhen Foxgolden Technology Limited >> High Resolution Full Color P10 Outdoor LED Display

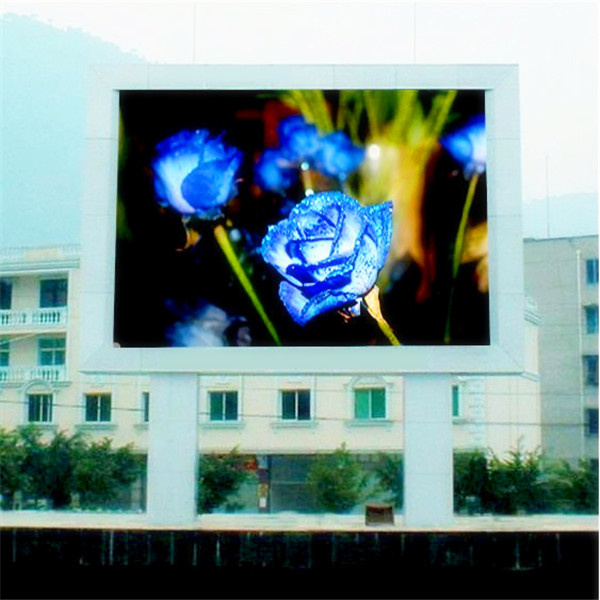

High Resolution Full Color P10 Outdoor LED Display

Name: High Resolution Full Color P10 Outdoor LED Display
Brand: China-Manufacturer-Directory.com
SKU: 774270895
Availability: InStock
Rating: 4.5 (137 reviews)

Supplier:	Shenzhen Foxgolden Technology Limited
Price:	US $ 888-1688/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	fox-p10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:	160*160mm
Warranty Time:	3-5 Years
Viewing Angle:	120°
Brightness:	8000 Nit as Adjustable
Life Span:	≥ 100, 000hours
Mtbf:	≥ 10, 000hours
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Pitch:	10mm
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	600W / m²
Pixel Density:	10000 dot / m²
Scanning Mode:	1/4 Scan

Product Description

1. Certification: CE, RoHS, UL, SGS
2. Warranty: 7years
3. Support TV, S-Video, DVI, AVI, MOV.
4. High resolution, 10, 000dots/sqm

Description	Technical parameter
Unit module	Module size	160*160mm
	Pixel pitch	10mm
	Pixel density	10, 000dots/m2
	Pixel configuration	1R1G1B
	Led specification	Φ 3ellipse
	Pixel resolution	W: 16dots*H: 16dots
Cabinet	Dimension	960mm960mm170mm
	Quantities of module	36pcs
	Power supply	6pcs
	Thermal discharge	Fan*2pcs
	Total weight	65kg
	Best viewing angle	10-100m
	Temperature	Storage: -35° C~+85° C
	Temperature	Working: -35° C~+85° C
	Thickness	17cm can adjustable
	Remarks: cabinet size can changed, upon project need.
Power	Working voltage	AC220V/110V± 10%
	Average power consumption	300-400W
	Max. Power consumption	≤ 1000W/sqm
	Current	≤ 20mA(single LED)
Control system	CPU	Pentium4 or above
	Operating system	WIN98/2000/NT/XP
	Control method	Synchronization
Main technical parameter	Driving device	1/4scanning
	Drive type	Constant Current driver IC
	Refresh frequency	≥ 400Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness of white balance	More than 8000cd/sqm
	Brightness adjustment	256 levels of each color(R/G/B)by software
	Operating ambient humidity	10%--95%
	Video signal	PAL/NTSC
	Control system	DVI display card+full color controller card
	MTBF	≥ 10, 000hours
	Life span	≥ 100, 000hours
	Flatness	Tolerance of interpixel ≤ 0.3mm
	Flatness	Tolerance of modules clearance≤ 0.6mm
	Power switch	Automatic switch
	Display mode	1024*768
	Communication distance	Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
Software	LED media player

Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.

Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.

Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.

With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
