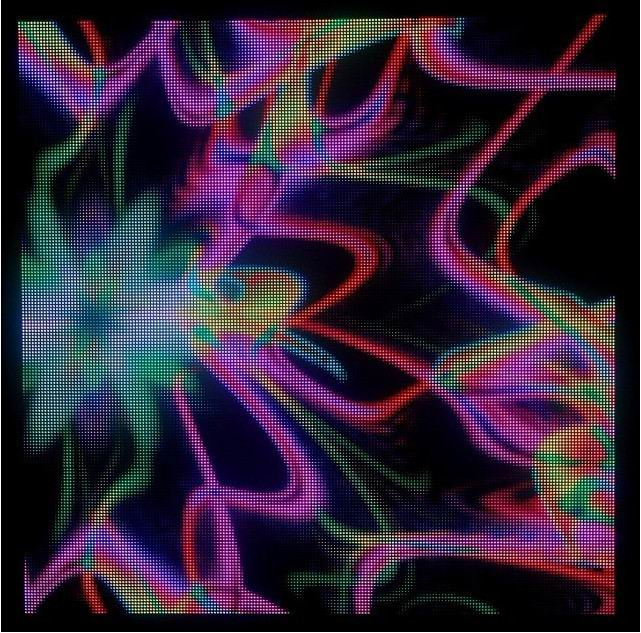

High Resolution Indoor Full Color SMD P8 LED Display

Name: High Resolution Indoor Full Color SMD P8 LED Display
Brand: china-manufacturer-directory.com
SKU: 701205385
Availability: InStock
Rating: 4.4 (107 reviews)

Supplier:	Shenzhen Foxgolden Technology Limited
Price:	US $ 10/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	FOX INDOOR P8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Physical Pixel Pitch:	8 Mm
Module Resolution:	32*16 Pixels
Module Size:	256*128 Mm
Physical Resolution:	128*98 Pixels
Cabinet Size:	1024768(100-120) Mm
Physical Density:	12288 Pixels/Cabinet
Brightness:	≥ 1000 CD/M 2
Power Supply:	AC 110 / 220V, 50/60Hz
Average Power Consumption:	400 W/M 2
Control System:	Linsn
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/4 Scan
Certification:	UL
Pixel Configuration:	1R,1G,1B
Application:	Shopping Guide
Pixel Pitch:	8mm
Pixel Density:	15625dots/Sqm
IP Rating:	IP20-IP45

Product Description

High resolution indoor full color SMD P8 LED display
1. Long lifespan
2. Large view angle
3. Hi-brightness
4. Good after-sales

Application: Entertainment center, stage background, train station, exitbition, shopping center, stadium etc.

Item	Parameter
Pixel	Physical pixel pitch: 8 mm
	Pixel configuration: 1R1G1B		Chip	Wave	Brightness	Packing
		R	Opto	620-625nm	250-350mcd	SMD3528
		G	Silan	525-530nm	600-700mcd	SMD3528
		B	Silan	465-470nm	100-150mcd	SMD3528
Module	Module resolution: 32*16 pixels
	Module size: 256*128 mm
Cabinet	Physical resolution: 128*98 pixels
	Cabinet size: 1024768(100-120) mm
	Physical density: 12288 pixels/cabinet
	Module quantity: pcs = 4 (w) x 6 (h)
	Material: Steel
	Weight: 32 Kg
Electricity parameter	Brightness: ≥ 1000 cd/m 2
	Brightness adjusted: 100 grade by software, or by Auto-optic induced
	Color processing: 16bit
	Display color: 280 trillion
	Color temperature(k): 5000_ 9500 (choice by user)
	Physical density: 15625 pixels/m 2
	Whole display flatness: ≤ 1mm juncture
	Best view distance: ≥ 13m
	Best view angle: Horizontal ± 140° , Vertical ± 140°
	Storage temperature: -35° C ~ +85° C Working temperature: -20° C ~ +50° C
	Driving method: Constant driving current Scan: 1/8
	Refresh frequency: ≥ 2000Hz
	Frame rate: ≥ 60Hz
	Humidity(RH): ≤ 90~95%
	Protection grades : IP65
	Working Voltage: DC 5V
	Power supply: AC 110 / 220V, 50/60Hz
	Average power consumption: 400 w/m 2
	Max power consumption: 800 w/m 2
	MTBF: 10, 000 hours
	Screen lifetime: 100, 000 hours
Control system	Control system: Linsn
	Signal interface: DVI
	Communication distance: Internet cable: ≤ 100m Fiber cable: 1000m
	Signal transfer mode: Pixels to pixels display synchronized

Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.

Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.

Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.

With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
