Shenzhen Foxgolden Technology Limited >> High Resolution P6 Indoor Full Color LED Display

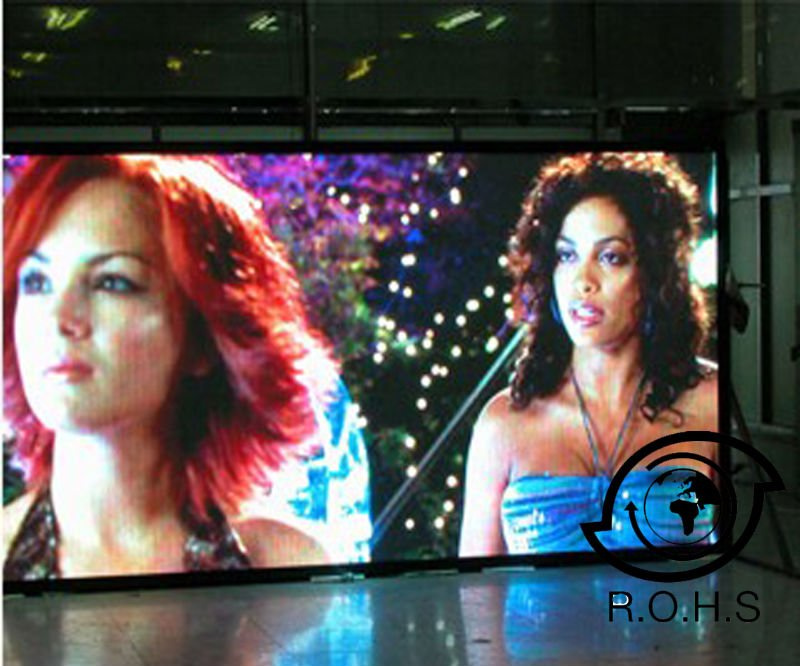

High Resolution P6 Indoor Full Color LED Display

Name: High Resolution P6 Indoor Full Color LED Display
Brand: china-manufacturer-directory.com
SKU: 699260185
Availability: InStock
Rating: 4.5 (24 reviews)

Supplier:	Shenzhen Foxgolden Technology Limited
Price:	US $ 1500-2500/Square Meter
Min Order:	2/Square Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	indoor p6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size Of Modual:	96mmx 192mm
Resolution Of Modual:	16X32
Density Of Pixel:	27777dots/M2
Colors:	16777216
Best Viewing Distance:	≥ 6m
Brightness:	≥ 2200CD /M 2
Frame Frequency:	60Hz
Working Temperature:	--20º C-+80º C
Display Type:	LED Video Display
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/8 Scan
Application:	Shopping Guide
Pixel Configuration:	1R,1G,1B
Pixel Pitch:	6mm
Certification:	UL
Pixel Density:	27,777 dots / m²
IP Rating:	IP20-IP65

Product Description

Indoor LED display board
1. High definition and vivid image
2. Easy assembly and diassembly
3. Relative low price
4. Professtional design
5. Big viewing angle
6. High qualiti and good service
7. Multi-language
8. Multi color and support
9. On-time delivery
10. Long life span

The technology parameter of P6 indoor
Number	Item	P6
1	Pixel pitch	6mm
2	Size of modual	96mmX 192mm
3	Resolution of modual	16X32
4	Density of pixel	27777dots/m2
5	Pixel configuration	1R1G1B
6	Red wavelength	625± 2nm
7	Green wavelength	525± 2nm
8	Blue wavelength	470± 2nm
9	Colors	16777216
10	Best viewing distance	≥ 6m
11	Horizontal viewing angle	140°
12	Maximum power consumption	≤ 600-1000w/m 2
13	Brightness	≥ 2200cd /m 2
14	Gray scale	16bits per color
15	Color temperature	6500k
16	Control method	Synchronization & Asynchronization
17	Driving method	1/8scanning
18	Frame frequency	60Hz
19	Refresh frequency	≥ 350Hz
20	Working voltage	AC220V/110V± 10%
21	IP grade	IP67(adjustable)
22	Working temperature	--20º C-+80º C
23	MTBF	> 10000 hours
24	Life span	> 100, 000 hours
25	Defects rate.	≤ 0.00001(Led display line standard< 0.0001)
26	Computer operation system	Win XP/Vista/ Win 2000/WIN7ect.
27	Video signal	RF, S-Video, RGB, RGBHV, YUV, YC. ect

Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.

Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.

Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.

With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
