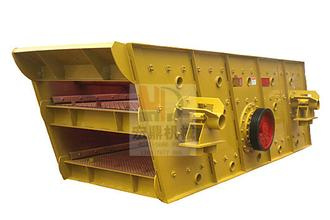

High Screening Efficiency Circular Vibrating Screen

Introduction of XKJ company:
Henan Xingyang Mining Machinery Manufactory is a enterprise that produce large and medium-sized crushers and grinder mills etc full set of mineral process production line, stone production line, sand making production line, forming R& D, production and sales into an integral system.

The Advantages and Application of Vibrating Screen:
Vibrating screen has such features as reliable structure, strong exciting force, high screening efficiency, low vibration noise, long service life, convenient repair and safe use, which can be widely used for the product classification in mine, building material, transportation, energy and chemistry.
The Inner Structure of Vibrating Screen:
Vibrating screen is mainly composed of screening box, exciter, hanging device and electromotor. The electromotor drives the principal axis of the exciter to rotate through v-shaped belt, and under the centrifugal inertia force of the unbalanced materials on the exciter, the screen box will gain vibration and it can gain different vibration amplitudes through changing the eccentric block of the exciter.

1. The strong vibration of the screen box reduces the phenomenon that the materials block the screen hole, so that the circular vibrating screen has high screening efficiency and production efficiency.

2. The circular vibrating screen has simple structure and the dismantling and changing of the screen surface is convenient.

3. The electricity consumed to screen every ton of materials is low.

Technical parameters:

Model	Sieve layer	Sieve area (m²)	Mesh size  (mm)	Max feeding size  (mm)	Processing capacity  (m³/h)	Vibrating Frequency (r/min)	Double amplitude (mm)	Motor power (kw)	Sieve obliquity (°)	Sieve specification (mm)	Total weight (kg)	Dimensions (L×W×H) (mm)
2YK1225	2	6	4-50	400	8-60	800-970	8	5.5	20	1200×2500	3500	2930×1860×870
3YK1225	3	9	4-50	400	10-70	800-970	8	5.5	20	1200×2500	3850	3070×1860×1210
2YK1230	2	7.2	4-50	400	12-78	800-970	8	7.5	20	1200×3000	4200	3430×1860×870
3YK1230	3	10.8	4-50	400	13-80	800-970	8	7.5	20	1200×3700	4600	3570×1860×1210
2YK1237	2	8.88	4-50	400	15-86	800-970	8	7.5	20	1200×3700	4600	4050×1860×870
3YK1237	3	13.22	4-50	400	16-90	800-970	8	7.5	20	1500×3500	5200	4270×1860×1210
2YK1535	2	10.5	5-50	400	20-125	800-970	8	11	20	1500×3500	5890	4120×2210×1230
3YK1535	3	15.75	5-50	400	21-125	800-970	8	11	20	1500×3500	6700	4360×2210×1610
2YK1545	2	13.5	5-50	400	22-150	800-970	8	15	20	1500×4500	6330	5120×2210×1230
3YK1545	3	20.25	5-50	400	22-150	800-970	8	15	20	1500×4500	6800	5360×2210×1610
4YK1545	4	27	5-50	400	22-155	800-970	8	18.5	20	1500×4500	7800	5930×2210×2060
2YK1548	2	14.4	5-50	400	22.5-162	800-970	8	15	20	1500×4800	6980	5420×2210×1230
3YK1548	3	21.6	5-50	400	22.5-162	800-970	11	15	20	1500×4800	7700	5660×2210×1610
4YK1548	4	28.8	5-50	400	22.5-162	800-970	8	18.5	20	1500×4800	8700	6230×2210×2060
2YK1848	2	17.28	5-80	400	25-206	750	8	15	20	1800×4800	9080	5420×2550×1420
3YK1848	3	25.92	5-80	400	32-276	750	8	18.5	20	1800×4800	9600	5660×2550×1780
4YK1848	4	34.54	5-80	400	32-285	750	8	22	20	1800×4800	11100	6290×2550×2160
2YK1854	2	19.44	5-80	400	32-312	800-970	8	18.5	20	1800×5400	10150	5960×2550×1420
3YK1854	3	29.16	5-80	400	32-312	800-970	8	22	20	1800×5400	10840	6260×2550×1780
4YK1854	4	38.88	5-80	400	32-336	800-970	8	30	20	1800×5400	12840	6830×2550×2160
2YK2160	2	25.2	5-100	400	50-475	970	8	30	20	2100×2600	11780	6720×2840×1530
3YK2160	3	37.8	5-100	400	50-475	970	8	30	20	2100×2600	12800	7030×2840×1910
4YK2160	4	50.4	5-100	400	50-497	970	8	37	20	2100×2600	14800	7300×2840×2380
2YK2460	2	28.8	5-100	400	65-550	970	8	37	20	2400×6000	15600	7020×3140×1530
3YK2460	3	43.2	5-100	400	70-620	970	8	37	20	2400×6000	17600	7300×3140×1910
4YK2460	4	57.6	5-100	400	80-680	970	8	45	20	2400×6000	19600	7600×3140×2380
2YK3072	2	14.3	5-100	400	200-700	750	8	22×2	20	3000×7200	23600	7200×4520×4184
3YK3072	3	21.4	5-100	400	230-800	750	8	22×2	20	3000×7200	25500	7200×4520×4684
