Product Specifications
| Prod Model: |
WL-KG-1B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Wale |
| Place Of Origin: |
Guangdong, China(Mainland) |
| Certificated: |
CE and RoHS |
| Warranty: |
3 Years |
| Color: |
White |
| Type: |
Sensor |
| Installation Mode: |
Ceiling Mounted |
| Certification: |
FCC |
| Application: |
Home |
| Usage: |
Light Sensor |
Product Description

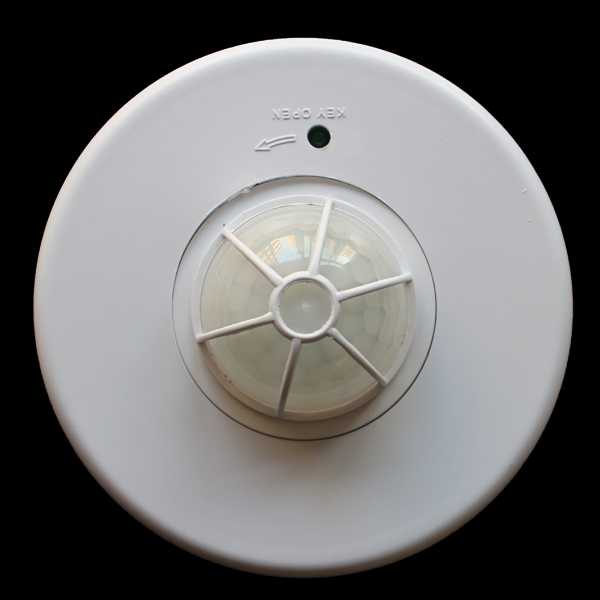

Automatic Ceiling Mounting Infrared Motion Sensor for Light Use With High Sensitivity
Feature:
1) Identify day and night automatically. Can adjust ambient light according to your desire: When turn to SUN (max), it will work day and night. When turn to MOON (min), it will only work under less than 3LUX circumstance. As for Adjustment, please refer to testing.
2) Detection distance can be set according to installation position and detection field.
3) The power show and detection show: They will flash one time each 4 seconds after putting through the power, and flash two times per second when receiving the signal. At the same time, it shows the sensor in the normal conditions for detection.
4) Time-delay added continually: When it received the second induction signal after the first inductor, you should compute time once more on the rest of the first time-delay basic. (Set time)
5) Time-delay adjustment: It can be set according to your desire. The minimum is 8+/-3 sec; The maximum is 7+/- 1min.
Locking function: During working, sensor will keep load lighting when power is shut off 2 seconds and then on. And shut off the power for 4 seconds and then on, sensor will resume automation.
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. 3 year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 4-6weeks after the receipt of payment. Please contact our sales to make sure the current inventory.
| Technical Paramters: |
| Power source | 220~240V/AC, 100~130V/AC |
| Power frequency | 50HZ/60HZ |
| Time setting | Min:8±3sec Max:7±2min |
| Detection angle | 360° |
| Detection range(22° C) | 8m max. Dia. |
| Rated load | 1200W(220~240V/AC)
800W(110~130V/AC)
3000W(220~240V/AC)
1500W(110~130V/AC) |
| Ambient light | <=3lux~daylihgt |
| Working temperature | -10~+40° C |
| Power consumption | 0.45W(static 0.1W) |
| Detection motion speed | 0.6~1.5m/s |
| Installation height | 3m |
| Working humidty | <=95%RH |
| IP | 20 |
