Product Specifications
| Prod Model: |

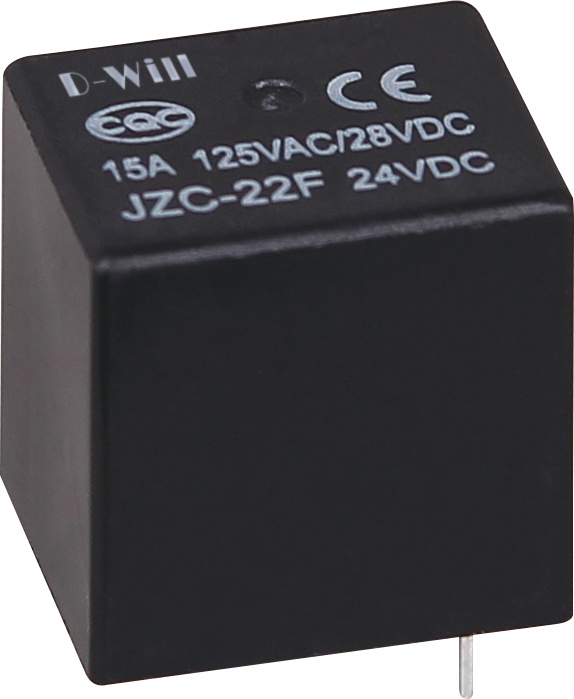

JZC-22F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Specifications
Discription
Coil Parameters
Coil Power DC : 0.36W
Coil Specifications
Rate Voltage(VDC) 5 6 9 12 15 18 24 48
Operate Voltage ≤ 3.75 ≤ 4.5 ≤ 6.75 ≤ 9.0 ≤11.25 ≤13.5 ≤18.0 ≤36.0
Release Voltage ≥ 0.5 ≥ 0.6 ≥ 0.9 ≥ 1.2 ≥ 1.5 ≥1.8 ≥ 2.4 ≥ 4.8
Coil ResistanceΩ±10% 69 100 255 400 625 900 1600 6400
Contact Parameters
Contact Type 1Z 1H
Contact Material AgCdO,AgSnO
Contact Resistance ≤ 100mΩ
Contact Load 10A 15A
Max Switching Voltage 250VAC/30VDC
Life Expectance Electrical 1×105times
Mechanical Life 1×107times
Performance Parameters
Response time ≤ 10ms
Release time ≤ 5ms
lnsulation resistance ≥ 1000MΩ (500VDC)
Dielectric withstanding voltage
Between contacts 1200VAC,50/60Hz 1Min
between contacts& coil 1500VAC,50/60Hz 1Min
Environmental Parameters
Temperature -40.C ~+85.C
Humidity 35%~85%RH
Atmospheric Pressure 86~106kPa
lmpact Resistance 10G(Sine wave pulse:11ms)
Vibration resistance 10~55Hz double-amplitude:1.5mm
Installation Type Plug-in , screw mount
Outline Drawing, Wiring Diagrams, Installation Dimensions
