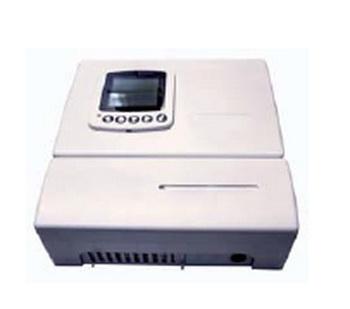

High Sensitivity Smoke Detection Alarm Sensor

Product Specifications

Prod Model:	HSSD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Stainless Steel
Type:	Smoke Detectors
Anti-Theft Alarm System Type:	Telephone Alarm
Anti-Theft Alarm System-Wide:	Wire Alarm Detectors
Infrared Sensor Installation:	Embedded Wall

Product Description

High Sensitivity Smoke Detection alarm sensor

Application

Air sampling smoke detection alarm is based on advanced laser optical air monitoring technology and microprocessor control technology of smoke sampling and detection device. The device uses a mature and advanced laser optical technology and a variety of sensing technology, and the integration of the most advanced digital micro processing technology, with advanced detection technology which is not available in other smoke detector. These features improve the performance of the device, simplify the operation, and increase the reliability and stability of the system.
Design of the HSSD system for early fire (heat, smoldering, or low thermal radiation and aerosol formation stage) detection alarm, alarm has high sensitivity, so as far as possible to reduce fire losses.

Design of the HSSD system for early fire (heat, smoldering, or low thermal radiation and aerosol formation stage) detection alarm, alarm has high sensitivity, so as far as possible to reduce fire losses.
The alarm system can be used as an independent probe system, and can be connected to the control system provided by different fire protection equipment manufacturers.
The HSSD system is designed to ensure that the installation and commissioning as simple as possible, and optimize its performance.

1. Particle counting technology which based on the laser technology.
2. Do not need the particulate filter.
3. The maintenance port is located on the side of detector, it is convenient for testing.
4. Which can connect the 1A self power supply or emergency battery device.
5. Field sensitivity selection which can meet the special applicantion requirements.
6. Four single alarming levels (early alarming level 1 and level 2/alarming level 1 and 2)
7. Laser network option, with 1 to 127 detectors/systems, communication by RS485.
8. The modular design which can realize quick and convenient maintenance.
9. Smoke recording, event recording can be storaged and standby emergency battery.

Technical specification

Model	BK711	BK724	BK724( Enhanced )
Remote display	√	√	√
Suction pump speed	√	√	√
Maximum number of sampling tubes	1 pipe	4 pipe	4 pipe
Working voltage	DC18-DC30V
Working current	240.0mA     start maximum current 300.0mA
Use environment	Temperature: -10ºC~+55ºC      Humidity: 0~95%
Storage capacity	1000 records
Sensitivity range	0.004~20%obs/m
Communication interface	RS485,RS232 Standard communication interface
Programming relay	5 pcs	5 pcs	9 pcs
Alarm level	4 grade( Early warning, action, fire 1, fire 2)
Sampling catheter size	Inner diameter 20mm~22mm     Outer diameter 25mm
Maximum sampling catheter length	Single pipe length 80m	Maximum length of each pipe: 100M   Totally pipe length:200M
Maximum coverage area	800m2	2000m²
Alarm output	Failure, early warning, action, fire 1, fire 2		Failure, early warning, action, fire 1, fire 2, 1~ 4
Relay	Rated date: 2A/DC30V     Can be programmed to be locked or unlocked
System settings	LCD,PC
Dimensions	Width 245mm×  Height 268mm× Thick112mm	Width 390mm× Height 230mm× Thick 112mm
Weight	<8kg	<10kg
