Product Specifications
| Prod Model: |
Sierra SL808X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Products Status: |
Stock |
| Style: |
External |
| Certification: |
CE RoHS FCC |
| Frequency: |
2g+3G |
| Type: |
External |
| Interface Type: |
USB |
| Transmission Rate: |
3.6Mbps |
| Application: |
Household |
Product Description

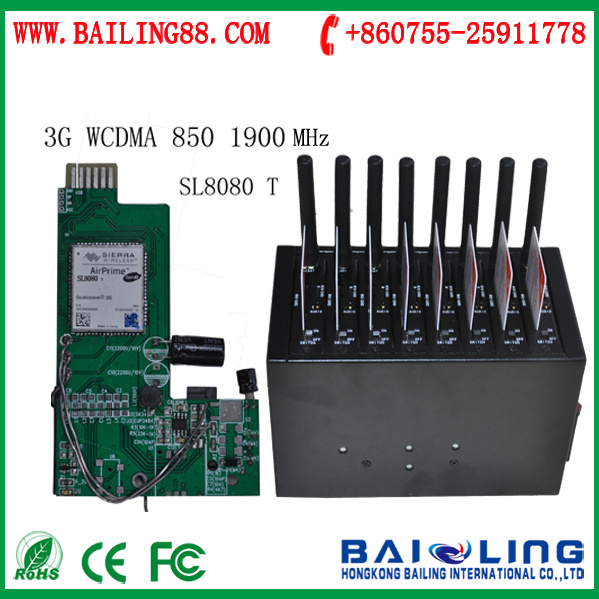

Low Cost 3G WCDMA 8 Port Modem Pool Sierra SL8080
Key Features
USB GSM modem pool
Based on Wavecom industrial modules
SL8080/1/2/3/4
GSM: 850/900/1800/1900MHz WCDMA 850/900/1900/2100MHz
8 SIM card(big/small) slots
Wireless access to internet
Comply with GSM phase2 standard
Cluster send and receive SMS
Maximum transmitting speed 384KBps
Input voltage: 100 to 240V
Working temperature: -20 to +60 degrees Celsius
Storage temperature: -25 to +70 degrees Celsius
Double tone multi-frequency function(DTMF)
Size: 195 x 113 x 130mm
Send 600/800/1000/1200 SMS per hour by one port
Weight: 3kg
Basic Features:
Asynchronous, transparent or non-transparent, to a maximum 14400 bits / s
Baud Rate: 300-115200 bits / s
Automatic baud rate: From 2400 to 19200 bits / s
Fax support three
Switched voice and fax
V. 42, V. 42bis
GPRS compatible
WAP compatible
SMA Antenna Interface
SIM Card Outlet
Power connector
RS-232, the Mini-DB-9 connector
AT command control ( GSM 07.07 and 07.05)
Application:
Large shopping malls, supermarkets
Professional market, large wholesalers
Large hotels, large-scale entertainment
Large agencies
Transport, logistics industry
Large enterprises, and institutions
Large hospitals, large bookstore
Newspaper, television and radio stations
Oil Company ( other chain business model)
Government agencies or large township
Hardware Feature:
Support 850/1900 or 900/2100 or 850/2100MHz
Meet the ETSI GSM 2 + standards
Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz)
5 -24 VDC power supply (which be directly connected to the nickel- metal
Hydride or lithium batteries)
Operating Temperature: -20 ° C - + 55 ° C
Storage temperature: -25 ° C - + 70 ° C
Size: Standard 1U chassis
Supported operating systems:
--Windows 7 (Home, Premium, Pro, Ultimate, Enterprise)
--Windows Vista (Home, Business, Ultimate, Enterprise)
--Windows XP (Pro and Home)
--Windows Server 2003 (original and R2)
--Windows 2000 (Server and Pro)
Module specification:
UMTS (WCDMA) /HSDPA
SL8080/81: 850 MHz, 1900 MHz
SL8082/83: 900 MHz, 2100 MHz
SL8084/85: 850 MHz, 2100 MHz
GSM, GPRS, EDGE
850 MHz, 900 MHz, 1800 MHz, 1900 MHz
GPS (SL8080/82/84)
1575.42 MHz
The SL808x modem supports data operation on HSDPA, WCDMA,
EDGE, and GPRS networks. The SL8080/82/84 modems also
Support voice operation on these networks.
Electrical features
Single supply voltage (VCC)— 3.3V4.3V
Two-piece, self-shielded (frame and lid)— No additional shielding required
Short Message Service (SMS) features
Send and receive (mobile originate and mobile terminate)
Mobile-originated / terminated over CS and PS channels
Mobile-originated SMS over PS falls back to CS if PS service is not available, or there is a PS network failure.
New message notification
Message sorting
Multiple recipients
Return voice call
Save contact details
Mobile-originated SMS e-mail
Mobile-originated / terminated SMS concatenation
Mobile-originated SMS e-mail concatenation
Receipt notification
Network selection
Network selection procedures described in 3G 22.011, R5 (June
2005), 3G 23.122 (June 2005), and 3G 43.022, R4
RRC connection reject message to redirect from a 3G system to a 2G
System, according to 25.331, R5 (June 2004)
A CPHS Customer Service Profile-like feature [PLMN Mode bit] on a
USIM / SIM that hides network selection related menus
Initial HPLMN scan at two minutes after power on
An HPLMN rescan irrespective of the serving MCC
Selective disabling of any 2G or 3G frequency band
Equivalent PLMN
Network selection generally within 30 seconds of power up
Enhanced network selection (ENS)
