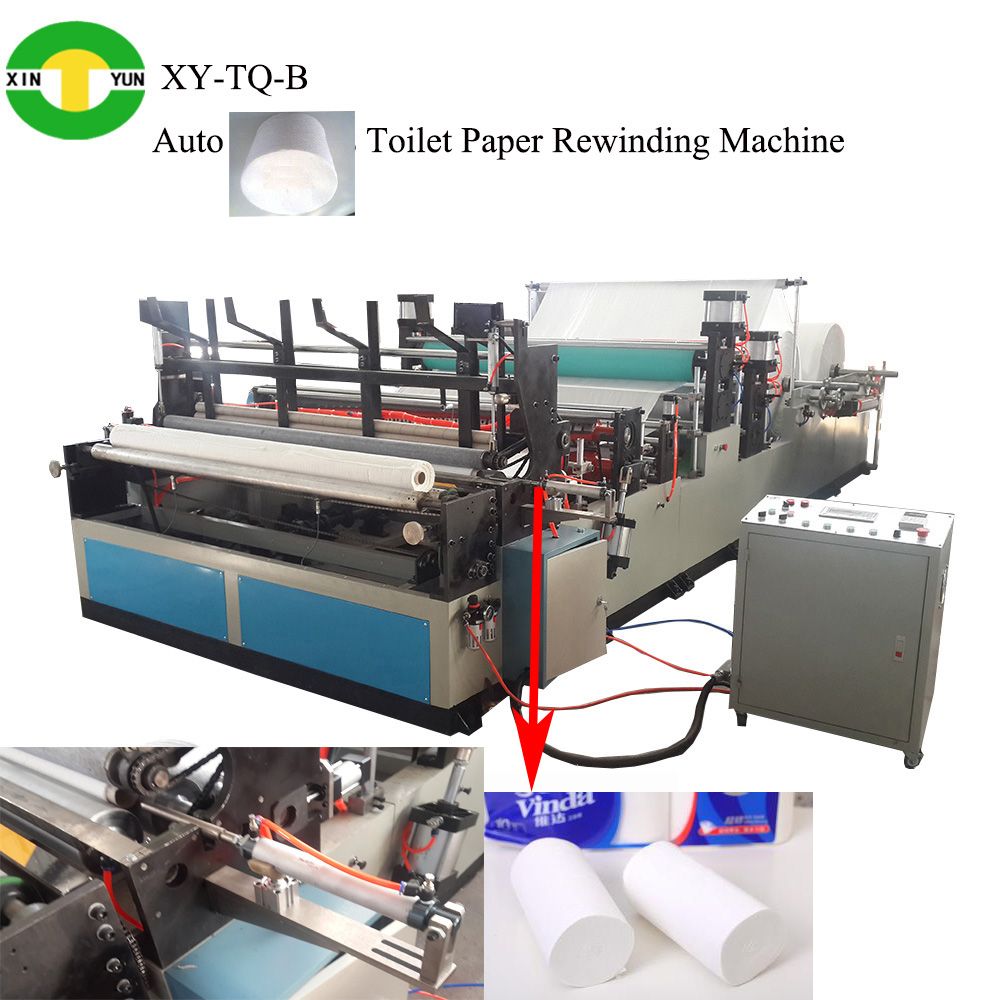

High Speed Automatic Industrial Toilet Paper Roll Machine

High Speed Automatic Industrial Toilet Paper Roll Machine
Supplier: Fujian Xinyun Machinery Development Co., Ltd.
Price: US $ 18000/Set
Min Order: 1/Set
Quantity::
Trade Terms: FOB,CFR,CIF
Payments:
Paypal VISA master Discover union pay T/T
contact supplier Add to Cart

Product Specifications

Prod Model: XY-TQ-B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine For: Fully Automatic Toilet Paper Rewinding Machine
Model: Xy-Tq-B
Speed: 180-200m/Min
Main Function: Rewind,Emboss,Perforate,Trail and Seal
Delivery Time: 60 Days
Embossing Rollers: Steel to Rubber
Embossing Pattern: Full or Edge Embossing
Width Of Jumbo Roll: 1150-2750mm
Machine Design: Customized Service
Power: 380V,50/60Hz,7.5kw
Paper Thickness: Normal Specification Paper
Certification: CE
Condition: New
Type: Toilet Paper Roll Making Machine
Sheet Former Type: Rewinding Perforating Embossing

Product Description

High Speed automatic industrial toilet paper roll machine
Product Description

High Speed automatic industrial toilet paper roll machine

XY-TQ-B

Description of the equipment:

The production process is: Unreeling - Embossing - Perforating- Rewinding- Tail-gluing- Edge trimming--- Automatic core loading .


Technical data:

Machine Model

1092

1575

2000

2200

2400

2600

2800

Width of jumbo roll (mm)

1200

1750

1950

2150

2350

2550

2750

Finished Products Diameter

Φ80~120mm (Tightness can be adjustable)

Finished Products Inner Diameter

Φ32~60 mm

Jumbo roll diameter (mm)

Φ1200 (Other sizes please point out)

Jumbo Roll Inner Diameter

76.2 mm (other sizes please point out)

Perforation distance (mm)

4 blade,90~160mm; 2 blade,180~320mm;

Production speed

160-200 m/minute

Parameter set

Touching-screener Multi-menu Man-machine Interface Operation System

Controller

PLC program

Mechanical driving

Driven by stepless regulator to guarantee the precise length of final products.

Air pneumatic system

3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer)

Power

4kw-10kw (380V 50Hz)

Overall size  (L×W×H)

6200X2750X1800 mm

Weight of equipment

About 4.2T

Chosen items (Should be ordered separately)

Embossment

Single embossment, Double embossment, Edge embossment

Embossment down roller

Paper roller, rubber roller

Jumbo roll stander

1-3 plies

Rewinding unit

Non-core unit

Printing unit

Single color heliotype printing unit

Other special request for machine is welcome




Video link:
https://www.youtube.com/watch?v=WQ7SdCxye8U
https://www.youtube.com/watch?v=GzHDkcivLIA

https://www.youtube.com/watch?v=6Jl3t1Dk-aM
http://youtu.be/KiRtuJYAJL8





Features:
1. This automatic small toilet paper roll making machine
 is designed with computer control system, fully automatic in production process, the function is complete and the production speed is high.

2. It can automatically change the core, spray the glue and seals without stopping the machine and also automatically raise and lower speed when exchanging the core.
3. When change the core, the machine will be tight first and loosen later to avoid dropping off the roll core.
4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.
5. Automatic alarm for breaking off of paper.
6. Equipped separate tension control for each unwinding jumbo roll.
7. It is convenient to change the feature to produce any other core pipe winding.
8. Left paper remind after sealing of product for convenient use.
9. Jumbo roll stand is installed by pneumatic.

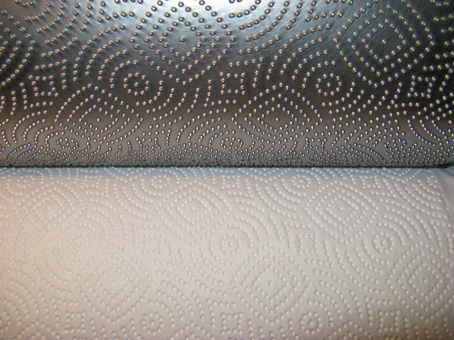

Why needs embossing? (Pattern selected by the customer)

Embossing enhances hand feel and absorbency, meaning fewer tissue paper used per hand dry.





Both two-Ply bath tissue rolls are embossed for higher absorbency and comfort.







Packaging & Shipping

Tidy the machine and spray the inhibitive oil to protect the machine while shipping

Will be separated into parts and packed in Standard Export Packing Wooden Case.



Company Information

Welcome to contact us to get more details !

We can design the machine according to your request.

Fujian Xinyun Machinery Development Co.,Ltd
is good at
 Paper Converting Machinery Manufacture.



Paper Converting Machinery Manufacture.



Professional manufacturer of:
 1)Toilet Paper Machine
 2)Facial Tissue Machine

 3)Napkin Paper machine

 4)Hand Towel Paper Machine
 5)Pocket Tissue Machine

 6)All kinds of Tissue Paper Cutting and Packing Machine and another Household Paper Equipments Production Line.



  We will provide good quality of machine with lowest price, if you buy the machine from us.



Fujian Xinyun Machinery Development Co., Ltd., established in 1998. We have passed ISO9000 Certification for good quality.

We are a factory dealing specially with the export of daily using paper series equipments.

Professional supplier of:

1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)

2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.

All of our products are certified to meet international quality standards and We are producing both standard machines and can provide customize service upon customer's request.

Our machines are export to all over the world, and have got the customers' high appraise.

High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.

We're expecting to work with enterprises from all over the world and we're willing to research cooperative opportunities and trying to build a long-term and stable business relationship.

Any questions from you are welcome and will be replied in 24 hours.
