Product Specifications
| Prod Model: |
XY-TQ-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine For: |
Small Toilet Tissue Paper Making Machine |
| High Speed: |
150-200 Meter/Minute |
| Width Of Jumbo Roll: |
1.2m---2.8m(as Per Request) |
| Embossing Roll: |
Steel to Rubber |
| Embossing Pattern: |
Full or Edge Embossing |
| Automatic Function: |
Embossing--Perforating--Tail Gluing--Edge Trimming |
| Color Of Machine: |
Red or Blue |
| Machine Design: |
Customize Service |
| Delivery Time: |
60-80 Days |
| Guaranty: |
2 Years |
| Paper Thickness: |
Thin Paper |
| Certification: |
ISO |
| Condition: |
New |
| Type: |
Paper Embossing Machine |
Product Description

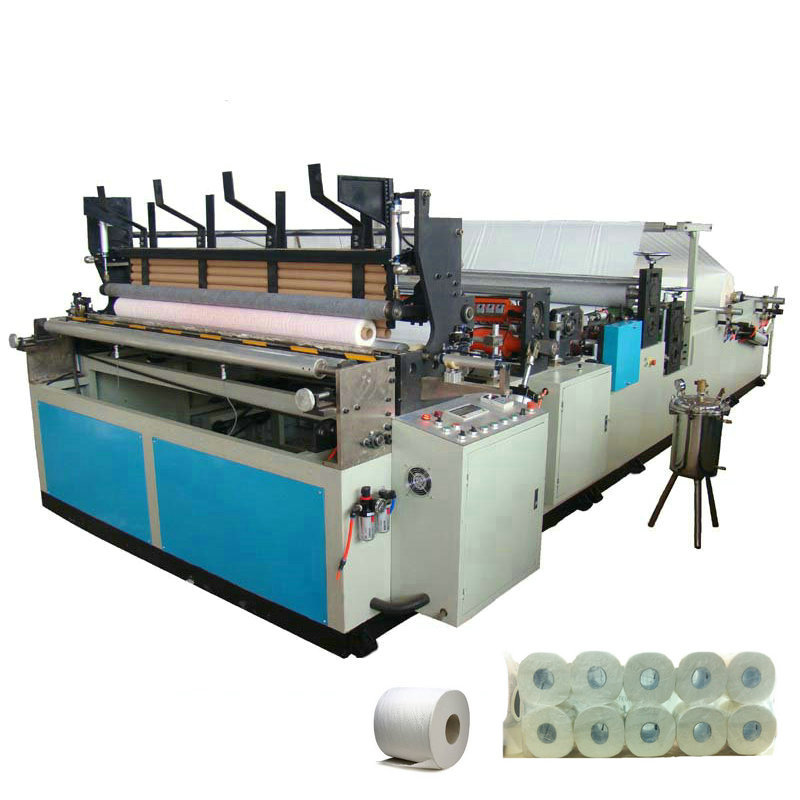

High Speed Automatic Small Toilet Paper Making Machinery (machine for making toilet paper)
Description of the equipment:
XY-TQ-B This equipment is used to perforate and rewind the jumbo roll paper (raw paper) into various sizes of toilet roll paper according to the requested. The finished small toilet paper is neat, in good order and with equality tension.
The production process is: Unreeling — Embossing — Perforating— Rewinding— Tail-gluing— Edge trimming--- Automatic core loading.
Video Link: http://www.youtube.com/watch?v=J11UD95EJM4
http://www.youtube.com/watch?v=CdKfeNK_wEc
https://www.youtube.com/watch?v=2vzTKJqO2Us
Why needs embossing? (Pattern selected by the customer)
Embossing enhances hand feel and absorbency, meaning fewer tissue paper used per hand dry.
Both two-Ply toilet tissue paper are embossed for higher absorbency and comfort.
Why buy Machine from Fujian Xinyun Machinery Development Co., Ltd?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine, it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.
Welcome to contact us to get more details!
We can design the machine according to your request.
|
Machine Model |
1092 |
1575 |
2000 |
2200 |
2400 |
2600 |
2800 |
|
Width of jumbo roll (mm) |
1200 |
1750 |
1950 |
2150 |
2350 |
2550 |
2750 |
|
Finished Products Diameter |
Φ80~120mm (Tightness can be adjustable) |
|
Finished Products Inner Diameter |
Φ40~60 mm |
|
Jumbo roll diameter (mm) |
Φ1200 (Other sizes please point out) |
|
Jumbo Roll Inner Diameter |
76.2 mm (other sizes please point out) |
|
Perforation distance (mm) |
4 blade,90~160mm; 2 blade,180~320mm; |
|
Production speed |
150-200 m/minute |
|
Parameter set |
Touching-screener Multi-menu Man-machine Interface Operation System |
|
Mechanical driving |
Driven by stepless regulator to guarantee the precise length of final products. |
|
Air pneumatic system |
3 Pa (air-compressor), the minimum pressure 5kg/cm2 pa (prepared by buyer) |
|
Power |
4.5kw-10kw (380V 50Hz) |
|
Overall size (L×W×H) |
6200X2750X1800 mm |
|
Weight of equipment |
About 4T |
|
Chosen items (Should be ordered separately) |
|
Embossment |
Single embossment, Double embossment, Edge embossment |
|
Embossment down roller |
Paper roller, rubber roller |
|
Jumbo roll stander |
1-3 plies |
|
Rewinding unit |
Non-core unit |
|
Printing unit |
Single color heliotype printing unit |
|
Other special request for machine is welcome |
