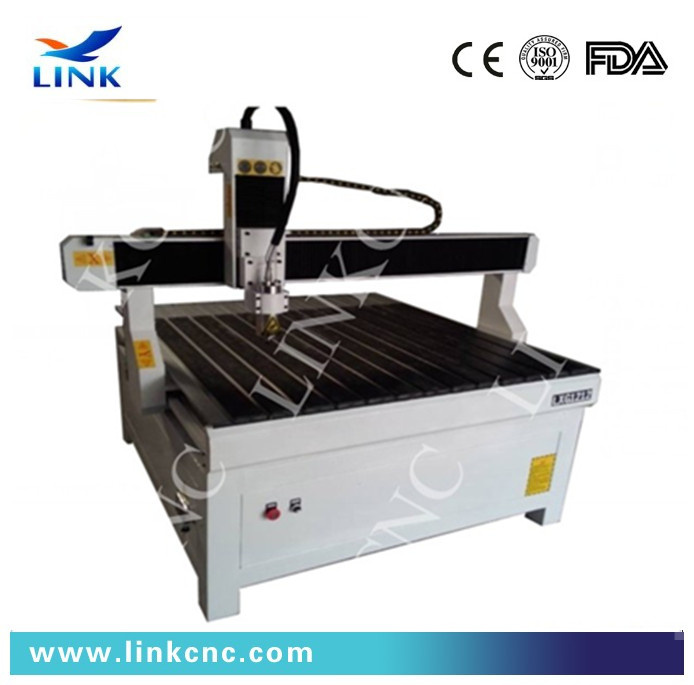

High speed cnc wood machinery \ advertising cnc router 1212
Features :
1. It adopts high precision preloaded eliminating gap ball screw to reduce the movement gap to the minimum.
2. Imported four row steel bead linear guide, self-lubricating, slide block, make each direction equal stress, to ensure the mechanical precision and strength.
3. The breakpoint memory way can guarantee it to go on work when tools accidently broken or the next day work. It has unique many work pieces processing original point preservation way.
4. Gantry moving, strengthened table to make it durable, long time use without deformation, better positioning accuracy.
5. Scutcheon manufacturing is elaborately carved without jag, bottom is smooth and contour is clear, besides, cutting 2 cm organic glass is also relaxed easily.
Application:
1. Woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing, video game cabinets and panels, computer table and Plate furniture auxiliary processing.
2. The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
3. Handwork industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. Other industries: A variety of large-scale relief sculpture, video carving, widely used in gift processing industry.
Parameter:
X,Y,Z Working Area
1200x1200x200mm
Z axis size
1-200mm
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
Lathe Structure
Welded Structure
X/Y/Z Structure
Ball Screw,
Shaft Linear Bearings
Max. Speed
0-20000mm/min
Max. Working Speed
0-12000mm/min
Spindle Power Motor
1.5KW Chinese water-cooling spindle
Spindle Speed
0-24000RPM
Working Mode
Stepper
Working Voltage
AC220V/50/60Hz,1PH
(Option: 380V,3PH)
Command
G Code, *uoo, *mmg, *plt
Operating System
WeiHong NK 105 DSP controller
Interface
USB
Flash Memory
32M
Collet
ER25
X,Y Working Delicacy
<0.01mm
Software
Ucancam software, Artcam software, Option
Running circumstance
Temperature: 0°C~45°C
Relative humidity: 30%~75%
Packing Size
Seperated: 3200X1960X1340mm
Net Weight
1100KG
Gross Weight
1250KG
Certification:
After service:
1.1 year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.18 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery.We will take machine photos and make machine working image for you ,after getting your agreement ,then we will book a ship.
6.provide technical services to the door(We have professional engineers to offer machine installation commissioning and maintenance).
FAQ
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router/laser machine ,then let us give you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
We will send video and english manual with the machine.If you still have some doubts, we can talk by telephone or skype.
Q3: If some problems happend to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.While we also supply free after-service forever,so any doubts,just us
know,we will give you solutions in 30 minuts.
