Product Specifications
| Prod Model: |
FM-AZJ-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Kind: |
High Speed Color Rotogravure Printing Machine |
| Type: |
Ink Jet |
| Plate: |
Gravure Printing |
| Structure: |
Rotary Letterpress |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
| Printing Speed: |
7.5CPI |
| System Supported: |
Windowsxp32 |
Product Description
Application:

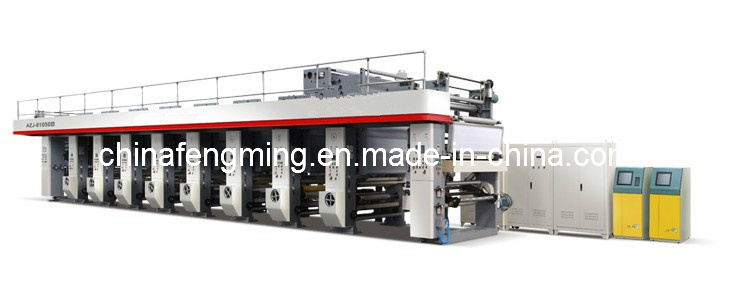

High Speed Computerized color Rotogravure printing Presses machine(FM-AZJ-B) is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc.
Product Features:
1, Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of
Color register quickly and accurately. 2, Main motor with inverter speed control. 3, Turret un/rewinding section, non-stop material splicing.
4, Unwinding and in-feed section with inverter speed control system and close loop tension control system.
5, Rewinding and out-feed section with inverter speed control system and close loop tension control system.
6, Closed oven and independent heating hot air blowing system, automatic constant temperature system.
7, Pneumatic impressing system and pneumatic doctor blade system
8, Diaphragm-type pneumatic ink auto circulating system
9, Inflatable air shaft for unwinding / rewinding material loading
10, Printing linear speed and meter counting display
11, Shaft less printing cylinder loading device, printing cylinder is fixed by shaft-less air chuck.
Type
Max. Width of Web
Max. Printing Speed
Max. Diameter of Unwind/Rewind
Internal Diameter of Roll Core
Diameter of Printing Cylinder
Accuracy of Registration
Tension Control Range
Heating Power of Oven
Total Power
Weight of Machine
Overall Dimension | AZJ-8850C
850mm
160-180m/min
600mm
76mm
120~φ300mm
±0.1mm
3~25kg/Full Width
108Kw
about 168Kw
about 25000kg
L16000×W3500×H3400mm | AZJ-81050C
1050mm
160-180m/min
600mm
76mm
120~φ300mm
±0.1mm
3~25kg/Full Width
135Kw
about 200Kw
about 27000kg
L16000×W3700×H3400mm | AZJ-81250C
1250mm
160-180m/min
600mm
76mm
120~φ300mm
±0.1mm
3~25kg/Full Width
162Kw
about 231Kw
about 29000kg
L16000×W3900×H3400mm |
Wenzhou Fengming Machinery Co., Ltd., which is located in the urban district of Ruian economically developed city on the bank of the East China sea of Zhejiang is an enterprise specializing in developing and producing various plastic series machinery products. Taking high science and technology as its guide, taking improving enterprise's management level and employee quality as its center and taking expanding the production scale and improving the grade of products as its aim, our enterprise will strictly emphasize the product quality and put every series of products on the international market by outstanding performance and preeminent quality.
Based on the policies of "Winning Customers, Trust by Quality"and "Meeting Customers, Needs by Constant Improvement", our enterprise has won the trust form numerous customers. The Digital Information Age in the 21st century has come, the whole staff of Fengming Enterprise will meet the opportunity and challenge brought in the internet Age with full of vigour and vitality in an ever young posture.
Winning Customers, Trust by Matter-of-fact Attitude, Revealing Enterprise's image by Quality. Our enterprise will wholeheartedly welcome numerous customers at home and abroad to visit us for guidance and business discussion.
Business Type: Manufacturer/Factory & Trading Company
Number of Employees: 48
Management System Certification: ISO 9001
International Commercial Terms: FOB, CIF, CFR
Terms of Payment: LC, T/T
Average Lead Time: Peak season lead time: one monthOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 4~10 People
Export Year: 2004-06-07
Export Percentage: 71%~90%
Main Markets: North America, South America, Europe, Southeast Asia/ Mideast, Africa
Export Mode: Have Own Export License
Factory Address: D Area Standard Factory Songqiao Wanquan Town, Pingyang County, Wenzhou, Zhejiang, China
R&D Capacity: OEM, ODM, Own Brand(FENGMING)
No. of R&D Staff: 5-10 People
No. of Production Lines: Above 10
Annual Output Value: US$1 Million - US$2.5 Million
