Product Specifications
| Prod Model: |
JC-RM-2400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Bule |
| Process: |
Finishing Process Machine |
| Usage: |
Packing Paper Machine |
| Automatic Grade: |
Semiautomatic |
| Computerized: |
No |
| Certification: |
ISO |
| Type: |
Slitting Rewinder |
Product Description
This rewinder is designed to rewind the paper from the paper machine into rolls with desired width and tightness as final products.

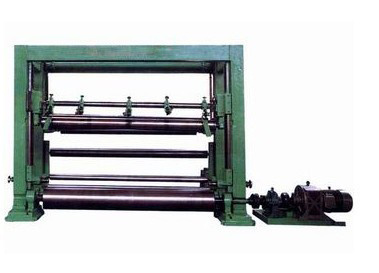

High Speed Down-Drawing Paper Rewinder
The rewinder machine is available in types of 3-point driving and single point driving. For 3-point driving, two DC motors are used to drive the front lower roller and the rear lower roller respectively, so as to move paper at a low speed in positive direction. The speed difference between the two lower rollers vary automatically with the changes in the diameter of paper roll. The starting speed slope can be preset. Stop can be realized by electric control and brake device. Paper back moving action is driven by a separate DC motor. Therefore, paper can be moved in both direction at a low speed and the standstill tension can be established. The constant tension is automatically provided when rewinding. Stop can be realized by electric control and brake device. Through the process of 3-point rewinder, the paper can get improvements in tightness and quality and be welcome by customers
The paper rewinder machine
Application and Features
1. Compact structure, convenient operation
2. Material receiving platform, by cutting groove
3. Reeling, unreeling, traction adopts inverter drive technology
4. PLC programmable controller as the core processing unit
5. Touch screen as man-machine dialogue interface
6. High precision tension control
7. Automatic attenuation tension taper control
8. Fixed length reduction
9. Fixed parking
10. Positive rotation, reverse function
11. Electrostatic elimination function
The paper rewinder machine
Perfect service:
1. Technical consultation
2. Detailed design of factory or workshop
3. Training engineers and workers
4. Supplying spare part for long time
5. Installing and testing the whole production line
6. Good after-sale and in-sale service
|
Model |
2640mm |
2850mm |
3200mm |
3600mm |
3800mm |
4000mm |
4400mm |
|
Product |
Down-Drawing Paper Rewinder |
|
Operation Speed |
1500-2200m/min |
|
Paper leading Speed |
25m |
|
Max. Base Reel Dia. |
2800mm |
|
Max. Finished Reel Dia. |
1800mm |
|
Rail Distance |
4050mm |
4250mm |
4600mm |
5000mm |
5200mm |
5400mm |
5800mm |
