High Speed Engraving and Milling Machine for Shiny Chamfering of Smart Phone Housing

Product Specifications

Prod Model:	JTGK-600F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CNC System:	Siemens Sinumerik 828d or Fagor 8055I
Travel(X*Y*Z):	600*500*300 mm
Workbench Size & Max Capacity:	630*500 mm / 300 Kg
Positioning & Re-Positioning Accuracy:	0.008 mm / 0.005 mm
Spindle Power:	3.7kw / 4.5kw / 5.5kw
Spindle Type:	ISO25 or Bt30
Max Rpm Of Spindle:	24,000 Rpm / 30,000 Rpm
Atc Capacity:	12 Tools
Max Moving & Cutting Feed:	12 M/Min & 10 M/Min
Dimensions & Gross Weight:	2000*1700*2500 mm / 4000 Kg
Process Usage:	CNC Non-Conventional Machine Tools
Movement Method:	Point to Point Control
Control Method:	Semi-Closed Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	Mid-Range CNC Machine Tools
Processing Precision:	0.008mm

Product Description

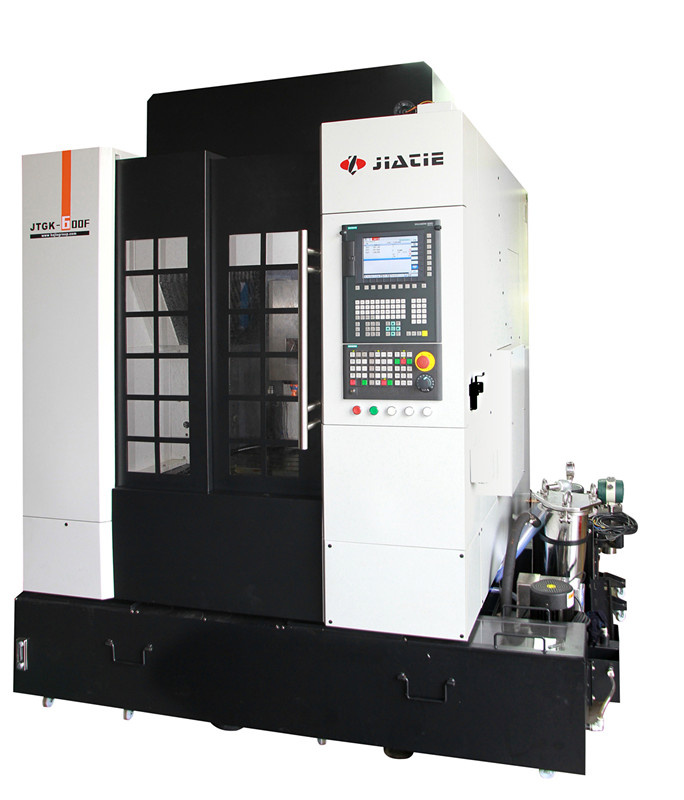

JTGK-600F High Speed CNC Engraving and Milling machine is one of high speed, high precision CNC machine in Kejie group. It has excellent dynamic cutting performance, stable and reliable, and strong applicability characteristics. It is widely used for semi-products, high precision mould, electrode and other high precision parts processing in batch producing. Many customers trust and praise our products highly. We have become as the equipment supplier of the world top mobile phone brands.
This series machine has become as the main equipment in the communication& electronics industry like the parts for chamfering and shiny processing, after the processing the products can achieve the outstanding high gloss surface effect.





Equipment character
Excellent dynamic cutting performance
Adopting with the world famous CNC system
High precision, high speed, high efficiency processing capability, which is your best choice for Mass-production.
ATC (12pcs), changing the multi-size tools automatically, and enhance the efficiency.
Favorable human-system operation interface, ease of operation.
The 4 or 4.5th Axis function is optional, which can realize the multi-angle processing.
The probe function is optional, and achieve the online detecting and correcting, solve the quality problem that caused by the workpiece's deformation.

Main configuration
FAGOR or Siemens High Speed CNC system
Japan AC numerical servo motor and drive
Electricity spindle (max. 24000 or 30000RPM), BT30 or ISO25 tool holder
Japan METROL completely automatic tool sensor for machine parts, and the tool length is
auto compensated
Precision linear rolling lead-rail
High precision ball bearing screw
High precision special bearing for ball bearing screw
Oil cooler for spindle
Japan hand wheel
ATC( 10-12 tools)
Probe(optional)
4 or 4.5 axis rotary axis (optional)

Main parameters

Model	JTGK-600F(engraving and milling)
Machine dimension	2000 X 1830 X 2500mm
Travel( X,Y,Z)	600 X 500 X 300mm
Table	630 X 500mm
Distance from the spindle nose  to the table scope(min.)	200-500mm(customized)
Max moving speed( X, Y, Z)	12000mm/min
Max feeding speed	12000mm/min
Positioning accuracy	±0.008mm/300mm
Repeat positioning accuracy	±0.005mm
Max. spindle speed	8000-30000r/min
ATC capacity	12T
Spindle type	ISO25 or BT30
The peak load of table	300kg
Gross weight	4000kg
Power supply	7.5kW. 3P-380VAC, 50Hz
