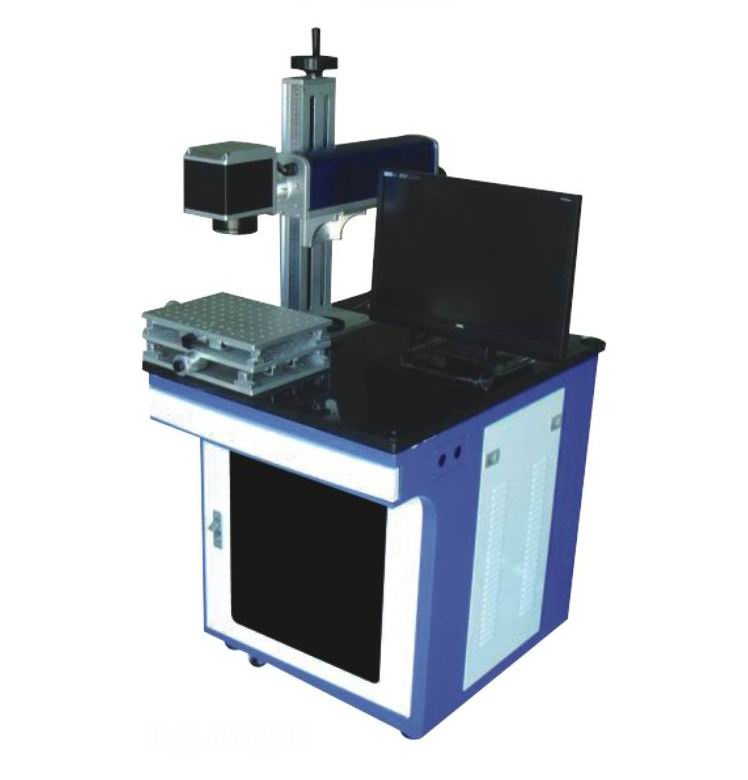

BL-MF10/20 series high-speed fiber laser marking machine adopts the internationally fiber laser for the development of a new generation of fiber laser marking system. It has many advantages as follows: Machine is smart, the quality of output beam is good, the accuracy of marking is very high and the depth is nice. It can be maintenance-free operation for a long time with using air-cooling method.
t is widely used in mark field of smooth finish and high precision, such as steel, copper, aluminum, gold and silver, and most other metals, plastics, ceramics, electronic equipment. And be suitable for watches and clocks, mold, bitmap marking, packaging, health care, tobacco, Sanitary Ware, food, electronics, gifts and other industries It is the best choice of high-speed precision marking.
Technical parameters:
Model BL-MF10/20
Laser ytterbium-doped fiber
Laser Power 10W/20W
Laser Wavelength 1055-1070nm
Laser Repetition Rate 20-100KHz
Marking Area 110× 110mm
Marking Wire-speed ≤ 12000mm/s
The Min. Line Width 0.012mm
The Smallest Characters 0.1mm
The Repeat Accuracy ± 0.003mm
The Whole Power 400W/500W
Power Supply AC220V/50Hz
Work environment: Temperature: 5~28degree, humidity<80%
Dimension(Length× Width× Height ) 900× 720× 1250mm
Weight 100KG
Option device:
1. Rotary fixture D80 D50
2. Marking Area(mm) 70*70 110*110 150*150
Advantage of fiber laser marking machine:
1. Excellent beam quality: The laser spot and divergence angle of fiber laser marking machine is smaller than
Traditional marking machine, marking more precision
2. Low use-cost: High turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser.
3. Maintenance-free Operation: There is no need of any maintenance for laser, or to adjust /clean the lens.
4. Long working life: Using laser diode as pumping source, the working hours can reach as long as 100, 000 hours.
5. Small machine body can be used in severe environment: Using fiber to realize laser transport and the structure is compact, which makes possible to work under severe environment such as vibration, high-temperature.
6. High processing speed: 2-3 times of the traditional laser marking machine.
Applied Field: Widely used in the field of high requirements of depth, Smoothness and precision, such as jewelry, decoration, paper packing, auto parts, electronic hardware, sanitary, glass and bitmap. It can also works on metal and plastic surface.
