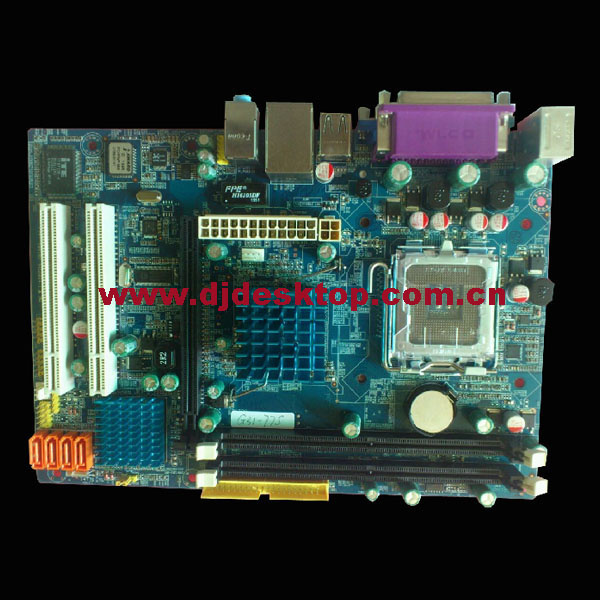

High Speed G31 Chipset LGA 775 Support DDR3 ATX Motherboard

Product Specifications

Prod Model:	G31-775
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chipset:	G31+Ich6
Fsb:	1333/1066/800/533 MHz
Size:	240mm X 170mm
Shipping Time:	2-4 Working Days
Shipping Way:	DHL /UPS / FedEx
Origin Of Place:	Shenzhen ,China
Products Logo:	for Your Optional
Main Chipset:	Intel
Structure:	ATX
Memory:	DDR2
CPU Socket:	LGA 775

Product Description

 High Speed G31 Chipset LGA 775 Support DDR3 ATX Motherboard



1. Intel G31+ICH6 Chipset, LGA 775, Supports 1333/1066/800/533 MHz FSB.
2. Supports 2*DDR2 800/667/533 memory, Dual Channel, support up to 4GB by 2 DIMM slots.
3.4*SATA, 4*USB2.0, 1*VGA, 1*PCI Express x16, 2*PCI Express x1.
4. RJ45 REALTEK RTL8100C(10/100 Mbps)

CPU
Supports Intel Pentium HT (Hyper Threading Technology) CPU
Supports 533/800/1066/1333 MHz HOST BUS Frequency
Supports Intel Conroe-L Socket775 CPU
Supports Intel Conroe LGA775 CPU
Supports Intel Pentium4/ D Socket 775 CPU
Supports Intel Celeron D Socket 775 CPU
Chipset
Northbridge: Intel G31 Chipset
Southbridge: Intel+ICH6
Graphics
Intel Graphics Media Accelerator 3000
Memory
Provides 2*DDRII slots
Supports DDRII 533/667/800 Double Channel Mode (only for G31 supports DDR2 800)
Expansion Slot
1*PCI Express X16 slot
2*32-bit PCI slots 2.2 specification compliant
LAN
RJ45 REALTEK RTL8100C(10/100 Mbps)
Sound Card
ALC655/653 (Onboard AC'97 2.3 specification compliant)
IDE
Provides 1 channel connecting for IDE drives
Supports Ultra ATA66/100/133 synchronous DMA modes
SATA
4*SATA2 ports
I/O Ports
1*serial port
1*parallel port, supports EPP/ECP/SPP transfers
4*USB ports
1*PS/2 Keyboard port
1*PS/2 Mouse port
1*VGA PORT
1*Multiple stereo( Mic In, Line In, Line Out jack)
1*RJ45 PORT
Onboard Ports
24 PIN ATX POWER PORT
4 PIN ATX 12V POWER PORT
1*CD_IN port
2*USB 2.0 PORTS
1*CPU fan connector
1*F_AUDIO PORT
BIOS
8M FLASH ROM
SIZE
240mm x 170mm
PACKING
20PCS IN ONE CARTON
