SPECIFICATION OF
CHEMICAL PAPER BAG MAKING MACHINE
ZT9802S Tuber machine
with servo system
( without printer)
Type | ZT9802S |
speed | 120 tubes/min |
Tube Width | 380~620mm |
Tube length | 400-1400mm |
Specification gear | 51~80 teeth(M=4) |
Type of cutting | Step cut&Flat cut |
Number of ply | 2~4paper+ 1 PP/PE |
Diameter of print roller | Ø196~ø312 mm |
Printing width | 1300 mm(MAX) |
Paper reel diameter | Max. 1, 300 mm |
Paper reel width | 860--1260mm |
Main drive motor | 47KW |
Servo system | YES |
Machine size | 35.32.42.7(M) |
Machine weight | N 32(T) |

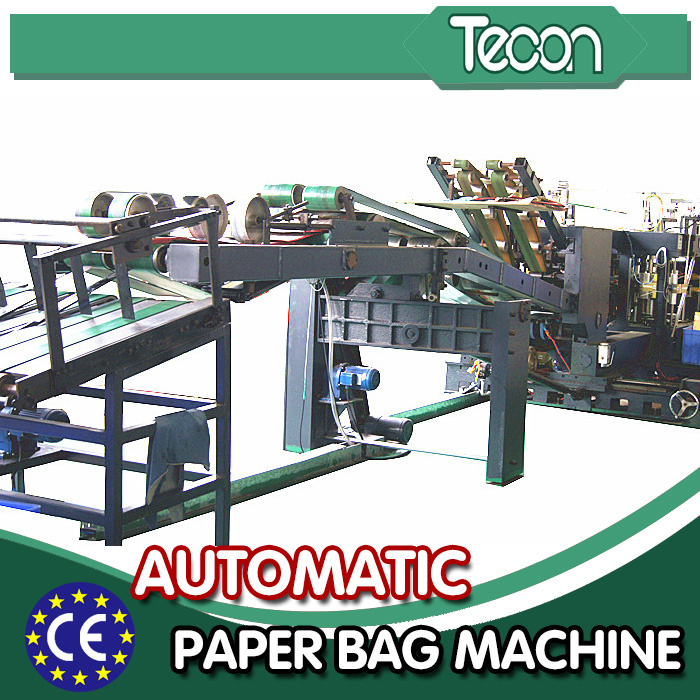

HD4916BD BOTTOMER machine
| HD4916BD |
Speed | MAX 100/140 bags/minute |
Tube Width | 380~600 mm |
Bottom Width | 80~160 mm |
Valve Sheet Length Width | (100-300)(120-240)adjustable |
Bag Length | 520~880 mm |
Bottom Center Distance | 420~780 mm |
Number of ply | 2~4paper+1 PP/PE |
Strength sheet unit | YES |
Strength sheet length*width | (300~600)(80~160) |
Main Drive Motor | 40KW |
Machine size | 23/281.81.8(M) |
Machine weight | N34(T) |
Composing of the production line
ZT9802S TUBER MACHINE
Name | Quantity |
Paper reel stands | 5 |
Paper web guider | 1 |
Automatic paper rectifier | 1 |
Auxiliary paper driver | 1 |
Perforation machine | 1 |
Latitudinal gluing machine | 1 |
Longitude gluing machine | 1 |
Tubes forming unit | 1 |
Driving tearing-off | 1 |
Delivery & counting line | 1 |
Electric control system | 1 |
Air compressor | 1 |
Servo system | 1 |
HD4916BD Bottomer Machine
High speed feeder | 1 |
Perforation of the exhaust outlet unit | 1 |
Opening the sacks unit | 1 |
Stick the sealing paper strip auto the bottom opening unit | 1 |
Bottom patch units | 1 |
Turning of sack bottom unit | 1 |
Pasting strength sheet unit | 1 |
Counting and delivery | 1 |
Packing and delivering out unit | 1 |
Platform for storing | 1 |
Electrical system | 1 (Schinerder) |
Vacuum-pump | 1(Rietschele) |
Bearing | (Janpan NSK) |
