Specifications
tubular Centrifuge :
1.Model :GQ/GF series
2.Capacity : 100-2500 L/H
3.Power : 0.4Kw-3.0Kw
4.Screw Bowl SUS316L
Product Description

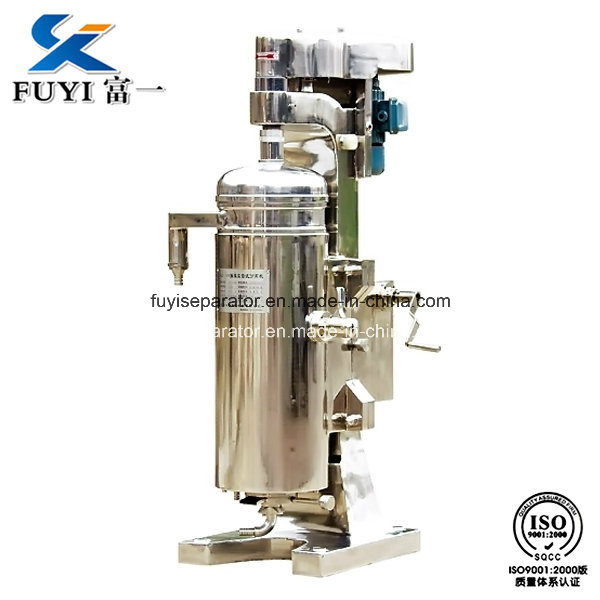

tubular separator
APPLICATION
Our company have specially designed and manufactured this model tubular separator for ink industry application thus it increase the ink quality and processing capacity.At the same time,we also give user favor to save the membrane filter cost as well.
General Description
Tubular separator is a precise separation machinery which fit for the lower solid content suspension liquid and lower small proportion dissolve liquid.It was the key machinery for the pharmaceutical,food,chemical,bio-products and beverage etc.
Based on the separation function,our company have two type separator:Clarify GQ and Separation GF.GQ series tubular separator is mainly used for liquid and solid separation and GF series works on the three phase separation including the light liquid,heavy liquid and solid.
For various application and machinery operation,the tubular separator is categorized:General purpose,special type(Laboratory model,Chinese Medicine Clarification,Blood separator,Bacteria type,Biodiesel type),Explosion-proof type,Fully sealing explosion-proof type,Cooling type,Swing type,Front open type.
tubular separator
Main Parameter
Model |
Bowl Speed(rpm) |
G-Force |
Bowl Capacity Nominal Liters |
Running Load(Watts) |
Dimensions, Overall (mm) |
Width |
Front-to-Back |
Height |
45 |
10.000 to 28.000 |
19.800 |
0.4 |
0.4 |
500 |
420 |
760 |
75 |
19.000 |
15.700 |
2.2 |
1.5 |
760 |
450 |
1120 |
105 |
16.300 |
15.620 |
6 |
2.2 |
840 |
500 |
1600 |
125 |
15.000 |
15.750 |
8 |
3.0 |
900 |
550 |
1600 |
150 |
14.000 |
15.700 |
10 |
3.0 |
1020 |
600 |
1600 |
Notice:
GQ: separator for liquid-solid
GF: separator for liqudi-liquid-solid
every parts of the centrifuge is made by ourself except for the machine body molding, thus it keep the centrifuge quality we can control by ourself as well and keep the long-time running without problem .
From the spindle to the separator bowl , each technics have at least more than 30 step to finish a parts .
tubular separator
Separation theorem
Tubular separator is a high-speed precise,energy efficiency,environmental machinery within the all separation machinery.To achieve the separation purpose by the different material liquid proportion based the centrifugal force.As photo show the raw material liquid is feeding by the lower of the separator and outlet by the upper machine body and the solid remain the bowl inner surface by the high centrifugal force.
