Product Specifications
| Prod Model: |
BCL-NH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Bcl1610nh, Bcl1812nh |
| Laser Power: |
60W/80W/100W/130W//150W/180W |
| Max Moving Speed: |
1600mm/S |
| Max Working Speed: |
1400mm/S |
| Locating Accuracy: |
<=+-0.02mm |
| Controlling Software: |
DSP Control System |
| Application: |
Textiles |
| Automation: |
Automatic |
| Type For Cutting Machine: |
Laser Cutting Machine |
| Type: |
Laser Cutting Machine |
Product Description

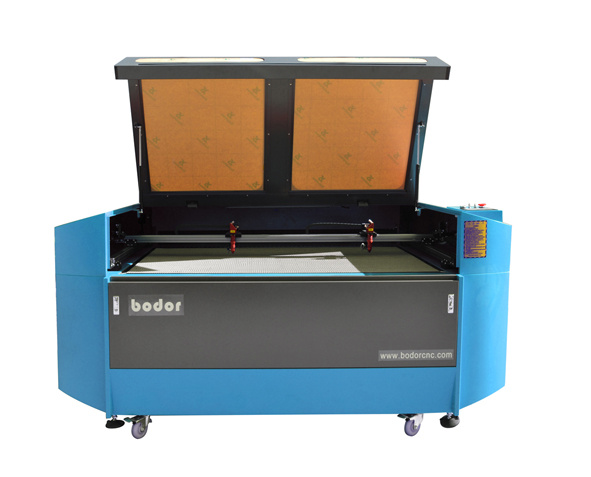

Product's description: Laser engraving&cutting machines BCL-NH Series
1. BCL-NH Series High Speed Laser Engraving Machine &Laser Cutting Machine adopts the new high-efficiency laser tube, the laser beam is more stable than the traditional type, and the life time of the laser tube can be over 10000 hours.
2. Compared with the ordinary laser machine, BCL-NH Series adopts more scientific design and high-strength steel-frame structure, which increase the fuselage strength more than 40%
To prevent the machine from dsitortion during long term work.
3. The humanized and mordern appearance shows Bodor's consistent humanity idea, and it also makes the operation and maintenance quite easy.
4. Advanced DSP control system, professional motion control chip, consecutive high speed curve cutting and the shortest path selection function improve the working efficiency a lot.
Applicable industry:
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.
Applicable Materials:
Materials such as acryl, wood planks(light planks, candlenut wood), bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, etc.
|
Model |
BCL1610NH |
BCL1812NH |
Option |
|
Working area |
1600*1000mm |
1800*1200mm |
According to demands |
|
Laser power |
60w/80w/100w/130w//150w/180w |
|
Laser type |
CO2 Sealed laser tube, 10.6μ m |
|
Cooling type |
Water cooling |
|
Max moving speed |
1600mm/s |
|
Max working speed |
1400mm/s |
|
Laser output control |
0-100% set by software |
|
Min. engraving size |
Chinese: 2.0mm*2.0mm, English letter: 1.0mm*1.0mm |
|
Highest scanning precision |
4000DPI |
|
Locating accuracy |
≤ +0.02mm |
|
Controlling software: |
DSP control system |
|
Graphic format supported |
DST PLT BMP DXF DWG AI LAS, etc |
|
Compatible software |
CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc. |
|
Color separation |
yes |
|
Drive system |
High-precision 3-phase stepper motor |
|
Auxiliary equipments |
Exhaust fan and air exhaust pipe |
|
Power supply |
AC110V/220V+10%, 50HZ/60HZ |
|
Working environment |
Temperature: 0-45C, Humidity 5-95%(No condensate water) |
|
Packing size |
according to the model |
|
Net weight |
according to the model |
|
Option |
up& down table, honeycomb worktable, rotary device, red dot position system, auto-focus device |
Jinan Bodor CNC Machine Co., Ltd., has been always devoting to the research and manufacture of the CNC products such as laser engraving machine, laser cutting machine, laser marking machine and so on. Today, Bodor CNC has developed to a large worldwide Manufacturing Group, and becomes an excellent leader of the world in this field.
Bodor CNC can supply DOT peen marking machines, Laser Marking Machines, CNC Router (Mechanical Engraving and Cutting Machines), Laser Engraving and Cutting Machines and many other industrial automation equipments. Meanwhile we can also supply industrial automation solutions according to your special needs.
Bodor CNC has earned ourselves a good reputation and ten thousands of faithful customers with our advanced technology, standardized producing management, stable products, and the best services. Through years of international marketing experience, we have established business relationships with the customers from North America, West Europe, South Asia, and Middle East, etc. Welcome to join the world of Bodor CNC, You can experience the world-class products and services together with our customers all over the world.
