Product Specifications
| Prod Model: |
GLP-2B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Delivery Detail: |
3 Days |
| Packaging Details: |
Wooden Case |
| Warranty: |
1 Year |
| Certification: |
CE |
| Application: |
Spray Cement to Wall |
| Weight: |
200kg |
| Max Rpm: |
200-600 |
| Hose Diameter: |
13mm |
| Dimension: |
1465×700×1150mm |
Product Description
High speed Mortar spray plastering machine, Wall cement plastering Machine
Features of the mortar spraying machine1. High working pressure, flow stability, able to transport the sand content of higher mortar.
2. This product adopts screw conveyor, can output uniformity flow, to overcome the existing deficiencies of uneven flow about Piston pump and Plunger Pump.
3. Mechanical transmission, simple and compact, consumable replacement quick and easy low- cost cutting, easy maintenance and low cost.
4. The rotor and stator materials successfully passed the inspection of industry, work reliably,can be used 16-20 hours.
Advantages of the mortar spraying machineMortar Spraying Machine is a kind construction machine in Xingtai Greatcity Commercial Co.Ltd. Under the actual needs of an economical and practical design of mortar spraying machine. It has been marinated for water, with pumping pumpable mortar, spraying.It consists of units, permitting easy and comfortable transport due to their small and handy dimensions and low weights. Thanks to its efficiency, silence and technical perfection.
All pumpable dry ready-mixed mortars or materials, such as Cement mortars, Lime plaster, Gy-psum plaster, Masonry mortars, Insulting plasters, Self-leveling floor screeds, etc.Specification of the mortar spraying machineWorking Capacity | 2-4m³/h | Max aggregate diameter | 4mm |
Max Pressure | 3MPa | Pipeline inner diameter | 25/32mm |
Horizontal Delivery distance | 50m | Hopper Capacity | 30L |
Vertical Delivery Distance | 30m | Loading Height | 800mm |
Power | 4kw | Dimension | 1465×700×1150mm |
Voltage | 380v/220v |
Hose Diameter | 13mm | Air Compressor | 400L/min;8bar,3kw |
Max RPM | 200-600 | Weight | 200kg |

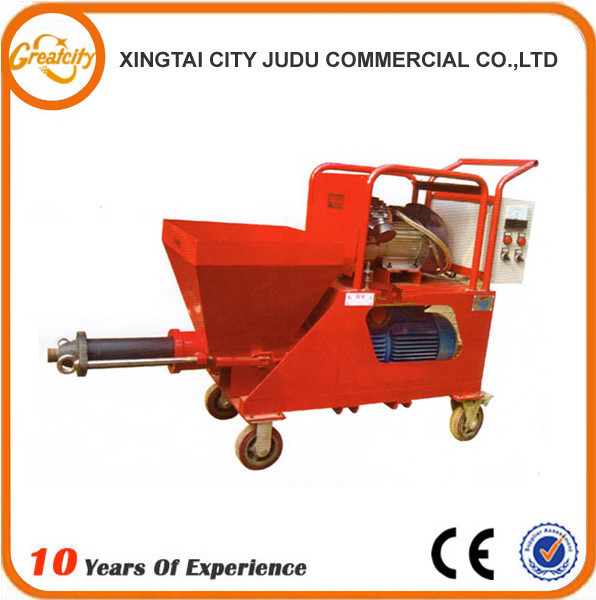

Pictures of the mortar spraying machine
