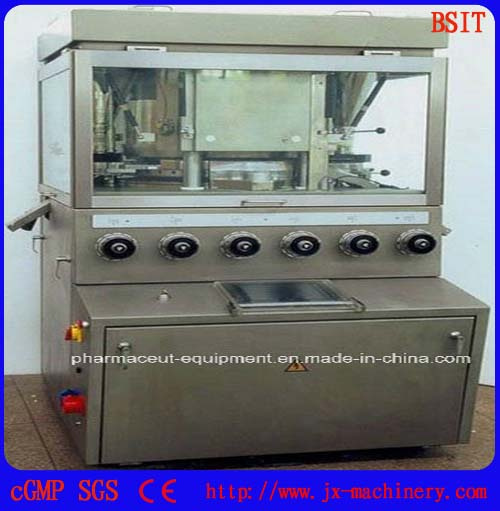

Advanced, rational design is the basis of excellent quality products. Integrated with many years' experience for manufacturing High Speed Tablet Press and modern science&technology, GZPL-620 Double Rotary High Speed Tablet Press provide new design principle, which make standardization, modularity and series design come true. The characteristic of machine is high-precision, high-speed and automation. It is the best choice for high output and large batch producton.
Main Features
1. Design of GMP
2. High quality all stainless steel construction
3. Special oil-proof&dust-proof sealing systems
4. Reliable safety sealing system and dust-proof system
5. High visibiity isolated door to prevent cross contamination
6. Easily remove and install parts for quick machine's maintenance
7.360º Design for easy observation and cleaning
Technical Parameter
|
Model |
PG45 |
PG55 |
PG65 |
|
Number of Stations |
45 |
55 |
65 |
|
Tooling Type |
EU/TSM/ISO D |
EU/TSM/ISO B |
EU/TSM/ISO B |
|
Max. Output (tablets/h) |
405, 000 |
495, 000 |
585, 000 |
|
Max. Tablet Dia. (mm) |
25 |
16 |
13 |
|
Max. Tablet Length(mm) |
25 |
19 |
16 |
|
Max. Filling Depth Depth (mm) |
20 |
16 |
16 |
|
Max. Tablet Thickness (mm) |
8 |
|
Max. Main Compression Force ( kN) |
100 |
|
Max. Pre-compression Force (kN) |
16 |
|
Rated Power (kW) |
13.2 |
|
Power Supply |
3AC, 220-460V, 50/60Hz |
|
Overall Dimension (mm) |
1380× 1510× 2000 |
|
Weight (kg) |
3140 |
|
Note |
The max. output refers to the quantity of pressing little tablets from ideal granular. |
Liaoning bright shine machinery Co., Limited is a group enterprise which main manufacture and leading export of pharmaceutical machinery, packing machinery, water treatment equipment in China. It is widely used in the pharmaceutical, food, chemical, electronic, cosmetic industries and has supply top quality of machinery and service for domestic and foreign customer.
We manufacuture machine and equipment will according to international standard, it will meet with cGMP and CE, FDA certificate, also supply IQ and OQ document to customer. Get more success from many order and also have been good reputation and high opinion of customer.
Main product is all kinds of pharmaceutical machinery and packing machinery, such as tablet press, screen, mill, mixer, granulating, dryer, coating machinery, suppository filling machinery, capsule filling machine, tube filling&sealing machine, tea bag packing machine, blister packing machinery, effervescent tablet packing machine, liquid filling machine, counting machine, sachet packing machine, labeling machine, boxing machine and so on.
BSIT (our company ) product has been exported to Russia, India, New Zealand, Pakistan, Chile, Bangladesh, Syria. Guatemala, Peru, Colombia, south Korea and more countries. We are making some foreign sole agency in above country. And also has enough professional export experience and design capability from many pharmaceutical factory or packing factory.
We guarantee that supply one year warranty and spare parts of wearing for any customer, also we can supply install and adjust machine service for excellent customer. And make turn-key project.
We confirm that will continue to increase and development our machine quality and sale service welcome to have more and more customer interested our company machine in feature.
