Product Specifications
| Prod Model: |
VT-JBJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia |
| Solder Paste Mixer: |
Battery Paste Blender |
Product Description
This item is our newlyest lauched machine for soler paster mixer.
The item is for the battery paste. Medicine cream. Cosmetic cream. Paste food. Electronic solder pate and other materials.

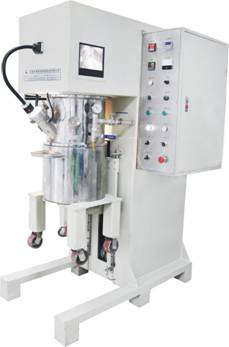

This equipment is consist of the beam, the plane seat, square column, lifting mechanism, lifts and linear track, top tank, mixing tank, vacuum pump, buffer tank, transmission system, and electric control cabinet and other operating panel.
Mixing tank: Tank inside size: 400mm * 350mm (design capacity: 50L; Working volume: 30L).
The tank body jacket, inside & outside guts, jacketed deflector, jacket for the bottom tank all adopt 304 # stainless steel. Bottom tank pulley 4PCS. Tank body is with a handle.
The jacketed deflector has been treated turning to ensure evenly materials cooling effect. The tank inside guts surface and the flange face aftering turning to ensure the gap between the tube wall and the cage be 2-3mm, thus all materials can be fully mixed.
Mixing cage: There are two specially designed stainless steel precision casting curve modeling stir cage, the cage between the two mixing regions staggered rotation, driven by the double planetary transmission, both with two planetary gear cage stirred for 0-50rpm's speed for the revolution, while their speed 0-100rpm for the rotation, so that the barrel material is fully mixed.
Top tank: The top tank adopt 304 stainless steel which is a component of the sealed chamber. In which there is a vacuum hose and vacuum pressure, lighting window and observation window.
Vacuum system: Sealing designed between the mixing tank and the top tank, the top tank and the rack, the shaft and the rack. And dynamic sealing adopt mechanical seals while static seals adopt the silicone rubber o-seal pieces. Vacuum pump adopt rotary vane vacuum pump, so that the material can mix in a vacuum condition, meets the specific process requirements.
Lifting system: Be composed of the spiral elevator, lifts, linear guide. Be used for the mixer tank lifting. Easy for mixing, loading and unloading.
Control system: Agitation speed is with inverter control; Mixing tank equipped with thermocouple for testing the temperature which is rotating along with the planet carrier, thus can have a better temerature control to the material. The mixing tank positioning, up & down all equipped with the proximity switch and safety & sound alarm system and been logically controled by a safety interlock.
|
whisk motor |
3.0 |
|
Mixing cage revolution speed |
0~50 rpm |
|
mixing cage rotation speed |
0~50rpm |
|
mixing tank |
316*¢350mm |
|
mixing tank design capacity |
30L |
|
Mixing tank working capacity |
28L |
|
lifting power |
1.1-4kw |
|
lifting speed |
1.5m/min |
|
max hoisting moment |
1450kg |
|
vacuum pump power |
1.1kw |
|
vacuum pump rotation speed |
1400rpm |
|
Max vacuum pressure |
9*10¯² |
|
evacuation speed |
5L/S |
|
Frequency |
50+/-2% HZ
|
VICTORY TECHNOLOGY INTERNATIONAL., Ltd. is a HongKong-funded joint venture with about 20 years history and a 33, 000-square-meter standard modernized factory building, which is specialized in equipment developing and manufacturing.
Our cored business scopes are:
Solder wire processing line/Zinc wire processing line/SMT solder powder atomizing line/Paste emulsifying and homogenizing equipment/Vibratory screening machines.
On the principle of "Innovative technology and keeping pace with the world", we are blooming into the largest manufacturer in this field in domestic China. we have been introducing advanced technology from the Europe, Japan and Taiwan, so as to improve our products' performance. Kindly feel free to contact us for more details.
