High speed Square bottom paper cup machine(MB-12/22)
Features:
1. Bottom sealing by hot air devices, which is import from switzerland, LEISTER BRAND, high efficiency and durable.
2. And cup side sealing by ultrasonic, Evergreen which is made in Taiwan; (If you will not change mould, only one mould work with the machine. )
3. More efficient and better performance. The speed could be 60-80 pcs/min
4. Cup top curling and bottom knurling are finished by two separate turning plates.
5. It is easy to make cups with different sizes by changing moulds.
6. Have an automatic cup delivery system and stacking system with auto counter.
7. Equipped with automatic bottom paper roll lifting system, it is very easy to change the bottom paper roll, labor saving.
8. All the electrical parts are Schneider and Siemens brand, best configuration, which insure the long life span the machine
9. Automatic lubricating system, no need to doing the daily maintenance, and much easier for the operator.
10. Bottom paper will cut off and transfered by the transfering tape to the garbage automatically.
Technical data

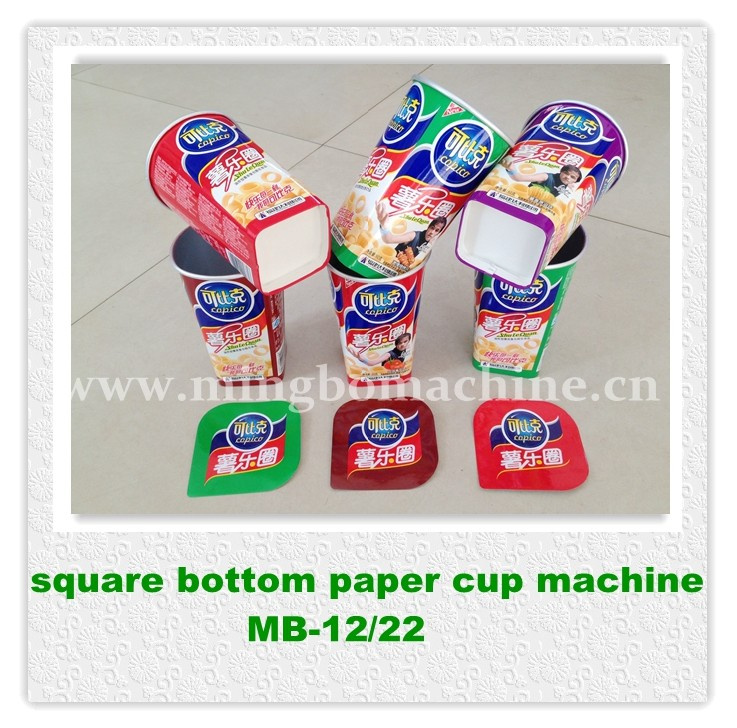

1. Cup Category: Round paper cups, hot beverage drinking cups, noodle cups and vending cups ice-cream and food containers and also square cups for biscuits, cookies and chips.
2. Cup Size: 6oz ~32oz (100cc ~ 700cc)
Raw material: 190~~500 gsm Single or Double PE coated paper
3. Output: 60 ~ 80 cups per min.
4. Maximum cup dimensions
-max. Top diameter: 115mm
-max. Cup height: 170mm
-max bottom diameter: 80mm
5. Minimum cup dimensions
- min. Top diameter: 55mm
- min. Cup height: 60mm
- min. Bottom diameter: 45mm
6. Electrical requirement: 380V, 50Hz, 3 phase or 220V 1 phase
7. Electric consumption: Max 13.0Kw
8. Air consumption: Approx 0.4 m³ /min
9. Machine dimensions: 2.8m× 1.6m× 1.6m
10. Machine Weight: 2, 300kg
Packaging & Shipping
All of our machinery shall be packed well with film to be water proof, and then loading and fix in a wooden case
30 days will be shippment after received your deposits.
About mingbo machinery:
Professionals in all kinds of paper container forming machine, cup lid forming machine and also fully automatic die cutting machine and labeling machines.
Any questions, please contact me freely!
Company website: Http://www.Mb-machine.Com
|
ZB-12/22 technical data: |
|
Cup Size |
6oz ~32oz (100cc ~ 700cc) |
|
Raw material |
190~~500 gsm Single or Double PE coated paper |
|
Output |
60 ~ 80 cups per min |
|
Maximum cup dimensions |
|
|
max. top diameter |
115mm |
|
max. cup height |
170mm |
|
max bottom diameter: |
80mm |
|
Minimum cup dimensions |
|
|
min. top diameter |
55mm |
|
min. cup height |
60mm |
|
min. bottom diameter |
45mm |
|
Electrical requirement |
380V, 50Hz, 3 phase or 220V 1 phase |
|
Electric consumption |
max 13.0Kw |
|
Air consumption: |
approx 0.4 m³/min |
|
Machine dimensions |
2.8m×1.6m×1.6m |
|
Machine Weight |
2,300kg |
