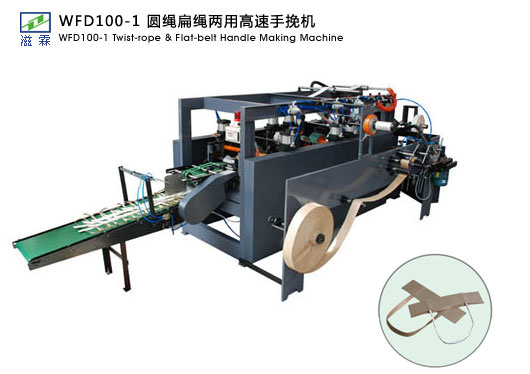

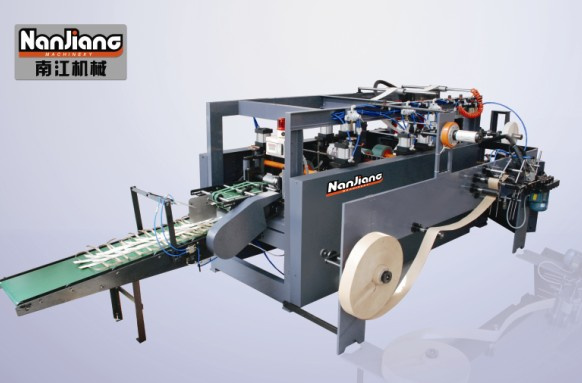

This is a high-speeded machine for producing paper handles, it can paste the twist paper ropes in the middle of two pieces of thin paper board and then automaticall cut off them in separate, it is an ideal supporting machine of paper Handbag Making Machine.
1) Paper weight For handle: 100-120G/M2
2) Paper weight For belt: 60-80G/M2
3) Diameter of paper rope: 3-5mm
4) Diameter of paper belt: 10-12mm
5) Width of two paper roll: 85-100mm
6) Width of paper board: 95mm
7) The overall length of the paper rope: 330-370mm or 380-420mm
8) Power Consumption: 7kw
9) Machine Size: 3.6 x 1.7 x 2m
10) Speed: 100-140 boards/min
11) Total Weight: 3000kg
This machine has extra option with long convey blet which will handle board with glue and could paste into bags directly by workers.
|
Model |
WFD100-1 |
|
Paper weight For handle |
100-120g/m2; |
|
Paper weight For belt |
60-80g/m2. |
|
Length of rope(belt) : |
330-370mm or 380-420mm |
|
Diameter of paper rope |
3-5MM |
|
Width of paper belt |
10-12mm |
|
Width of two paper roll |
90-100mm |
|
Speed |
100-300pcs/min |
|
Power Consumption |
10KW |
|
Machine dimensions |
6000*1800*1800MM
18000*1800*1800MM(with extended conveyer belt) |
