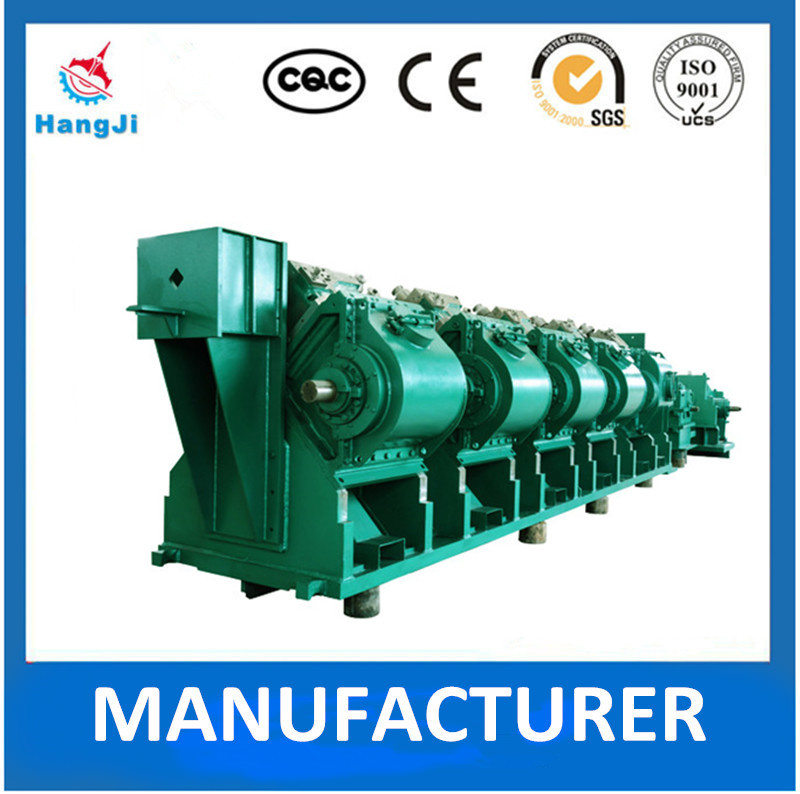

High Speed Wire Rod Rolling Mill Machinery
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
High speed wire rod rolling mill machineryThe function of pre-finishing millIn the process of high-speed wire-rod rolling, pre-finishing mill can improve the precision of the working piece to guarantee the product quality and avoid possible operation failure during the finishing mill section.The structure of frameworkIts structure is two horizontal and two vertical (horizontal-vertical-horizontal-vertical;
H-V-H-V) cantilever type, it is very compact, and the weight adjustment is more precise and reliable, and so to avoid possible twist rolling.
Pre-finishing mill is composed by two horizontal mills, three vertical loops, two vertical mills, safety cover and so on. Equipment structureTransmission box
The role of transmission box is to transmit the moment outputted by reduction gear and motor to roll shafts. Horizontal box has a pair of cylindrical bevel gears; vertical box has a pair of additional spiral bevel gear beside a pair of cylindrical bevel gear. The spiral bevel gear speed ratio of the two vertical transmission boxes is different.Roller box
Each roller box has one upper roll shaft and one lower roll shaft; they are not meshed, and driven by a pair of cylindrical bevel gears in the transmission box.A cantilever cylindrical roll shaft is fixed to each roll shaft; the roll shaft is fixed in the eccentric locking collar and sustained by the front and rear film bearing. Driven by the left and right feed screw and nut of the shaft gap adjustment device, the eccentric locking collar makes the upper and lower roll shaft open and shut symmetrically and evenly relate to the milling centre line, in so to achieve roll shaft gap adjustment. The roll shafts are made of tungsten carbide.
The roller box is installed with flange in plug-in method,
and convenient to assembly and disassembly, the roller box and transmission box are individual unites, during the installation, assemble the roller box and transmission box at the first stage and then fix the roller box inside the transmission box with screw bolt, the roller box is positioned by two locating pins to obtain accurate position. In this way, the installation can be done easily and with a shorter time, meanwhile, the pipework on the panel is reduced and make it easier for failure handling.
1, The roller gap is adjusted by using the eccentric locking collar, by adjusting the lead screw and nut , the eccentric locking collar will spin and then drive the roller shaft to move symmetrically, in so to achieve the adjustment of roller shaft gap. The best advantage of this adjustment method is that the central line will be kept unchanged.
2, By using the thrust bearing that fixed at the end of the roller shaft, we can effectively prevent the axial shift of the roller shaft, in so to ensure size accuracy of the product.
3, the size and structure of the roller box for horizontal framework and vertical framework are the same, all the parts are interchangeable.
4, the power transmission and speed control are conducted by a pair of spiral bevel gears in the transmission box, the reducer is omitted from the transmission system of the vertical rolling mill, so that the whole equipment is lighter and smaller.
5. As the horizontal framework is completely symmetrical, it can be rotated 180, so it can be shared by two production lines that located at its right and left side.
Guide device
The entrance of roller box has installed scroll guide and slip guide, the exit of roller box just has slip guide, slip guide is lubricated by special lubrication device.
Main technical features
First mill input specification: F28~F31mm
Fourth mill output specification: F16~F20mm
The kinds of rolling steel: Carbon steel, high carbon steel, low alloy steel, welding steel, heading steel.
The temperature of rolling: 900~1050ºC
Transmission method: Direct current (DC) motor alone drives
The transmission parameter table of pre-finishing mill
| Prod Model: |
HJ-A02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Rolling Mill |
| Warranty: |
1 Year |
| Color: |
as Costomers'requirement |
| Dimension: |
According to Different Needs |
| Brand: |
Hangji Brand |
| After Sales Service: |
Supply by Manufacturer |
| Technical Patent: |
with |
| Type: |
Steel Rolling Equipment |
| Certification: |
SGS |
Xi'an Weikeduo Electrical & Mechanical Equipment Co., Ltd. is a professional manufacturer of high-speed wire-rod, high-speed tray screw steel, hard-faced gearbox and relative homemade spare parts of all kinds. We have been in the line over 22 years and gather lots of technical and production experiences. Depending on the advanced techniques and constantly absorbing the hi-tech of domestic and international markets, we choose high technicians and completely precision equipment from domestic and overseas markets.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical and mechanical industries.
Our company uses the specific manufacture way to achieve the excellent product with the best quality. Our purpose is to satisfy our clients. Our high-quality products have passed ISO9001 certificate and we update our level to international standards. According to GB/T19001, we build the metallurgical high speed finishing wire mill and hard-faced gearboxes quality administrational system.
Our trademark "Hangji" is the famous brand in China. In the meantime, short-stress line bar mil, high-speed wire-rod finishing rolling mill and finishing rolling mill have acquired the national patents.
High-speed wire-rod production lines include heating furnace, roughing finishing rolling mill, middle finishing rolling mill, pre-finishing rolling mill, finishing rolling mill, pinch roll, laying head, picker and other high precision equipment. It is the technology-intensive product that combines modern rolling techniques with machine, electron, hydraumatic, pneumatic and instrument. Only a few countries in the world can offer the complex, high precision and difficult technology.
Our company has built cooperative relationships with SMS Siemag AG, DEMAG and JPMorgan Chase, and digested and absorbed the advanced product manufacture techniques. We integrate the processing, test methods and special manufacture methods to build our own administration system, quality system and techniques system. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We look forward to cooperate with you.
